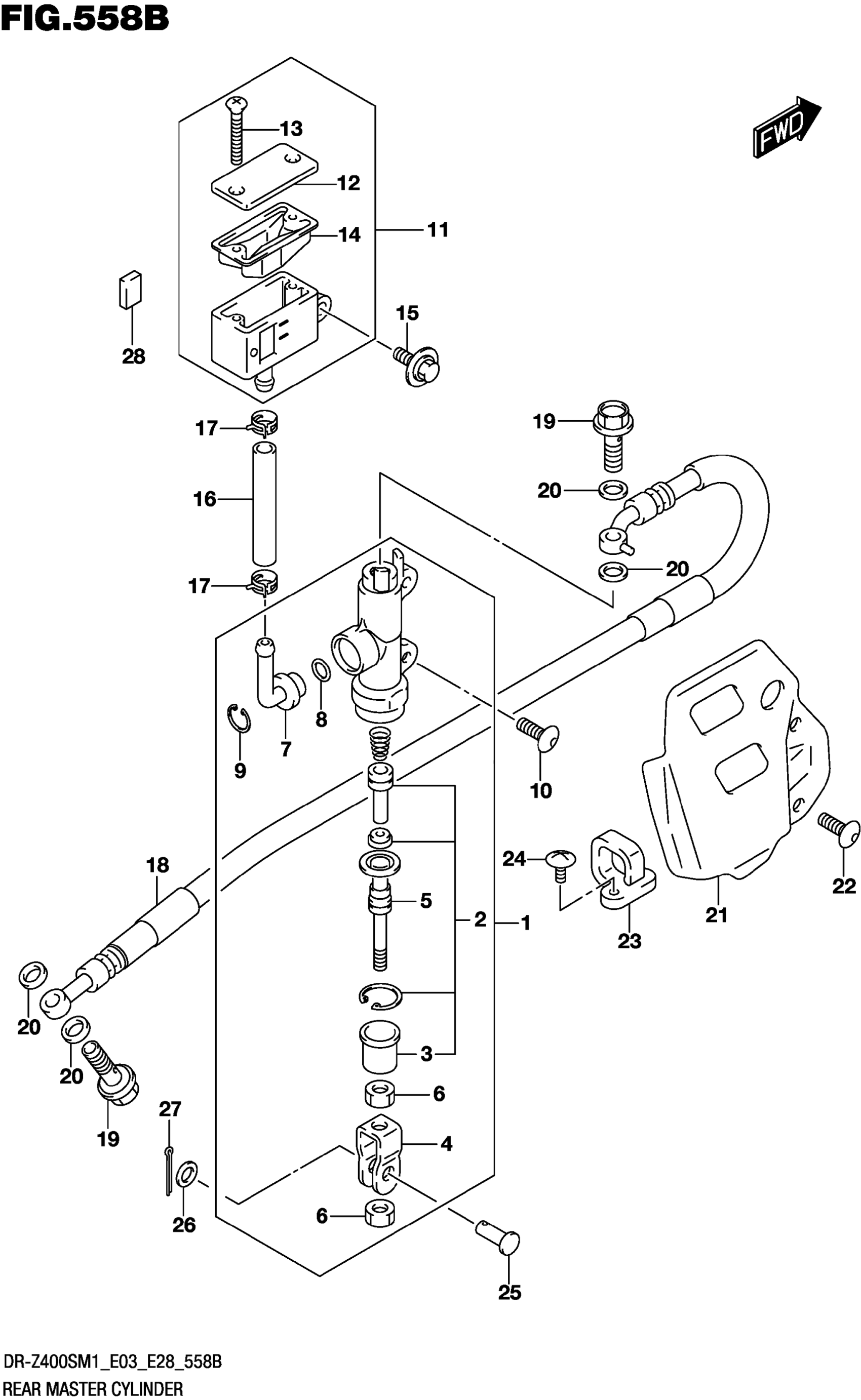

Suzuki DR-Z400SM1 (2021) REAR MASTER CYLINDER (DR-Z400SM) Diagram

#

Description
Price

1

CYLINDER ASSY RR MASTER

69600-29F00

$335.50

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

.YOKE

69692-29F00

$24.57

5

.ROD PUSH

69670-36E00

$33.47

6

.NUT

69693-05A00

$1.86

7

.CONNECTOR

69672-00B20

$6.42

8

.O-RING

69686-34200

$2.80

9

.CIRCLIP

69674-00B20

$3.73

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

11

TANK ASSY RESERVOIR

69740-44E01

$66.38

12

.CAP

69669-44E00

$26.03

13

.SCREW

69689-36E00

$3.65

14

.DIAPHRAGM

59667-14500

$9.53

15

BOLT (6X16)

09116-06170

$2.50

16

HOSE FR RESERVOIR TANK (L:85) | 5)

59731-42E00

$18.80

17

CLAMP RESERVOIR HOSE

69735-00B20

$5.43

18

HOSE REAR BRAKE

69480-29F12

$112.57

19

UNION (10X1.25X22)

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

GUARD RR MASTER CYLINDER

43571-36E20

$66.48

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

23

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.65

24

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

25

PIN (8X20)

09200-08048

$2.80

26

WASHER (8.5X14X1.6)

09160-08090

$2.38

27

PIN

04111-2015A

$1.22

28

CUSHION RR RESERVOIR TANK (9X | X17X4)

69749-29F00

$5.83
