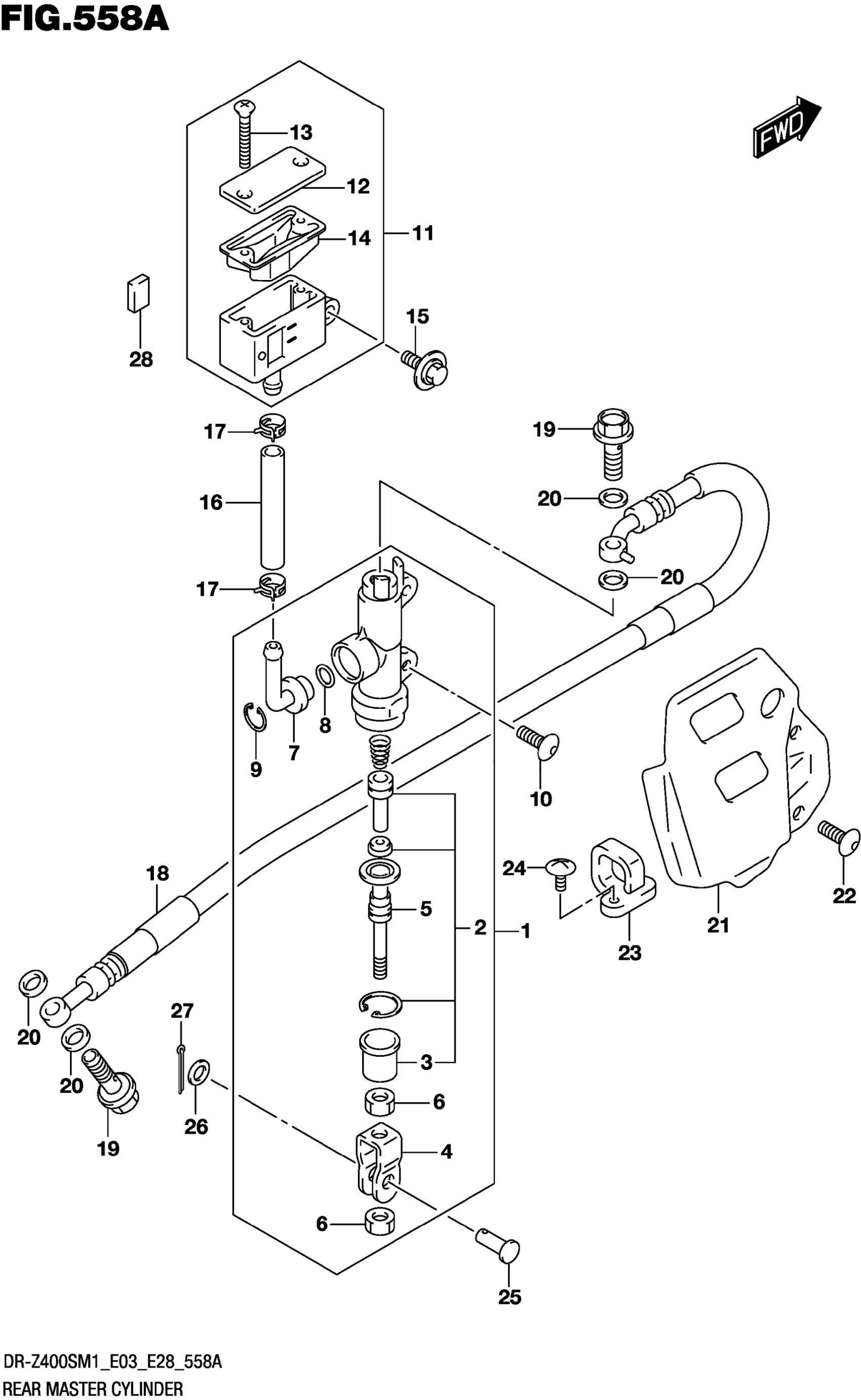

Suzuki DR-Z400SM1 (2021) REAR MASTER CYLINDER (DR-Z400S) Diagram

#

Description
Price

1

CYLINDER ASSY RR MASTER

69600-29F00

$301.50

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-29F00

$21.77

5

.ROD PUSH

69670-36E00

$29.65

6

.NUT

69693-05A00

$1.96

7

.CONNECTOR

69672-00B20

$7.01

8

.O-RING

69686-34200

$2.93

9

.CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY RESERVOIR

69740-44E01

$58.82

12

.CAP

69669-44E00

$23.07

13

.SCREW

69689-36E00

$3.23

14

.DIAPHRAGM

59667-14500

$10.12

15

BOLT (6X16)

09116-06170

$2.50

16

HOSE FR RESERVOIR TANK (L:85) | 5)

59731-42E00

$16.65

17

CLAMP RESERVOIR HOSE

69735-00B20

$4.10

18

HOSE RR BRAKE

69480-29F02

$149.48

19

UNION (10X1.25X22)

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUARD RR MASTER CYLINDER

43571-36E20

$58.92

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

23

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$6.17

24

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

25

PIN (8X20)

09200-08048

$2.92

26

WASHER (8.5X14X1.6)

09160-08090

$2.39

27

PIN

04111-2015A

$1.49

28

CUSHION RR RESERVOIR TANK (9X | X17X4)

69749-29F00

$5.17
