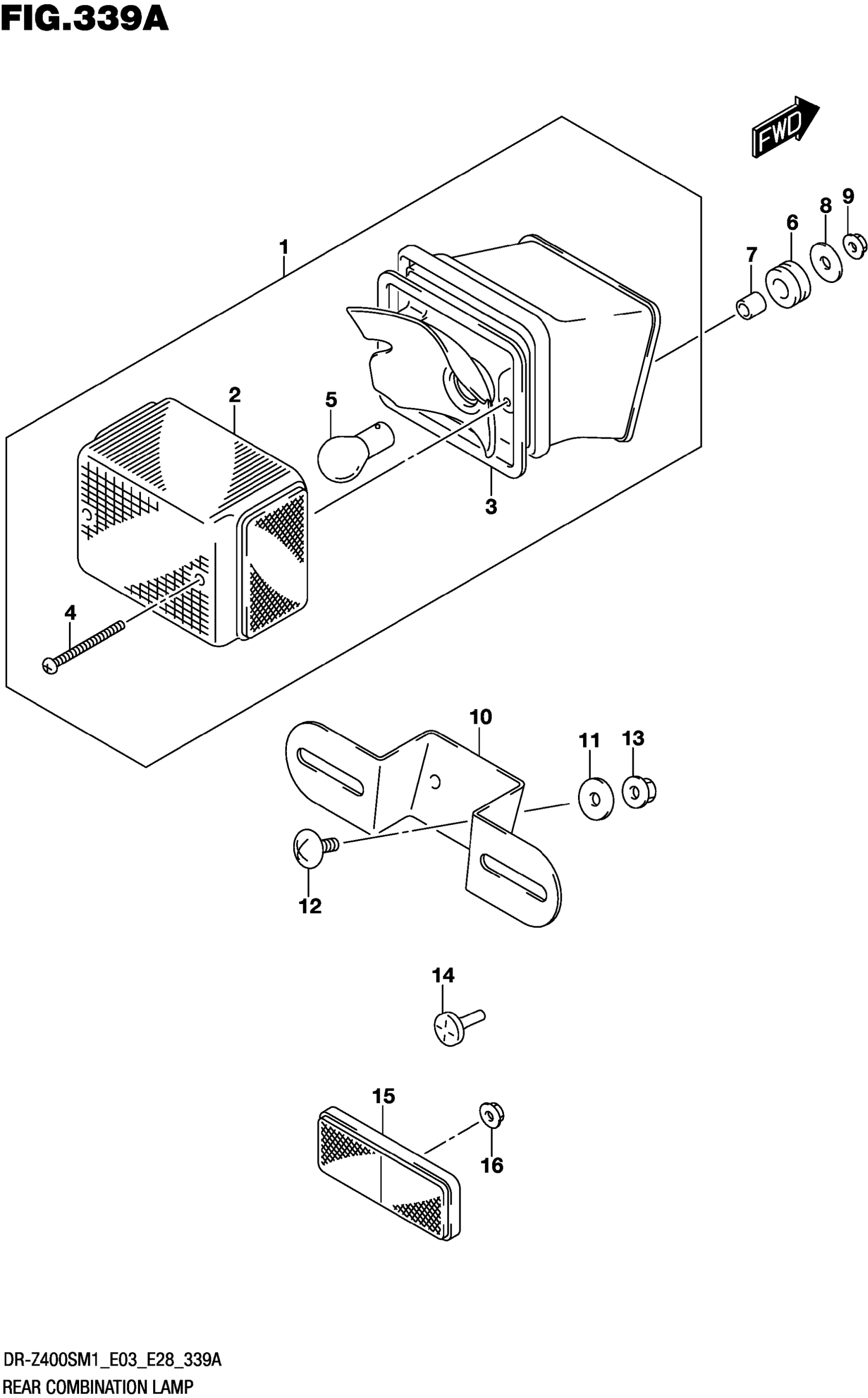

Suzuki DR-Z400SM1 (2021) REAR COMBINATION LAMP (DR-Z400S) Diagram

Description

Price

LAMP ASSY REAR COMB

35710-29F30

$117.49

.LENS

35712-42A30

$51.24

.GASKET LENS

35713-14D30

$7.88

.SCREW (4X45)

09125-04501

$3.16

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

CUSHION (10X20X10)

09320-10078

$4.16

SPACER (6.5X10X10)

09180-06310

$1.91

.WASHER (6.5X20X1.6)

09160-06088

$1.65

NUT (6X12)

08316-1006A

$2.19

BRACKET LICENSE PLATE

35927-29F10

$16.07

.WASHER (6.5X20X1.6)

09160-06088

$1.65

SCREW

02142-0612A

$1.49

NUT (6X12)

08316-1006A

$2.19

CUSHION

09321-06026

$2.92

REFLECTOR ASSY,RR

35970-07F01

$20.88

NUT

08316-1005A

$2.19
