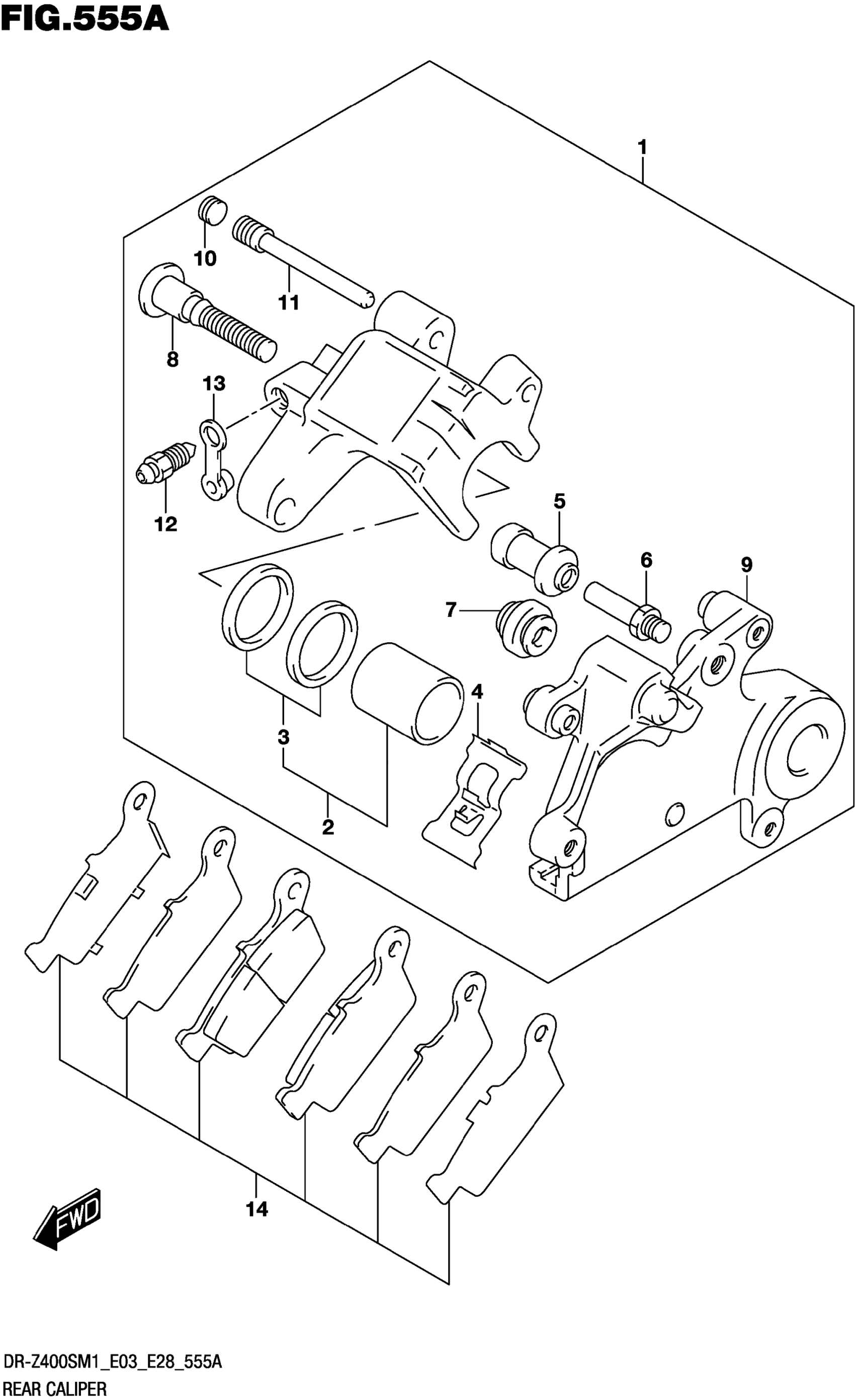

Suzuki DR-Z400SM1 (2021) REAR CALIPER (DR-Z400S) Diagram

#

Description
Price

1

CALIPER ASSY RR

69100-44E10-999

$265.48

2

.PISTON SET

69100-43810

$36.64

3

..SEAL SET,PISTON

69100-36810

$9.03

4

.SPRING PAD

59315-36E00

$9.72

5

.BOOT

59386-13A00

$7.95

6

.BOLT

59382-27C30

$9.07

7

.BOOT

59303-14500

$5.52

8

.PIN,BOLT

59305-36E00

$18.20

9

.BRACKET

69351-36E00

$143.95

10

.PLUG,PIN

59146-21E10

$6.15

11

.PIN HANGER

69345-43D00

$11.55

12

.BLEEDER

59121-01A00

$8.73

13

.CAP,BLEEDER

59122-46H00

$4.43

14

PAD & RETAINER SET

69100-36850

$51.95
