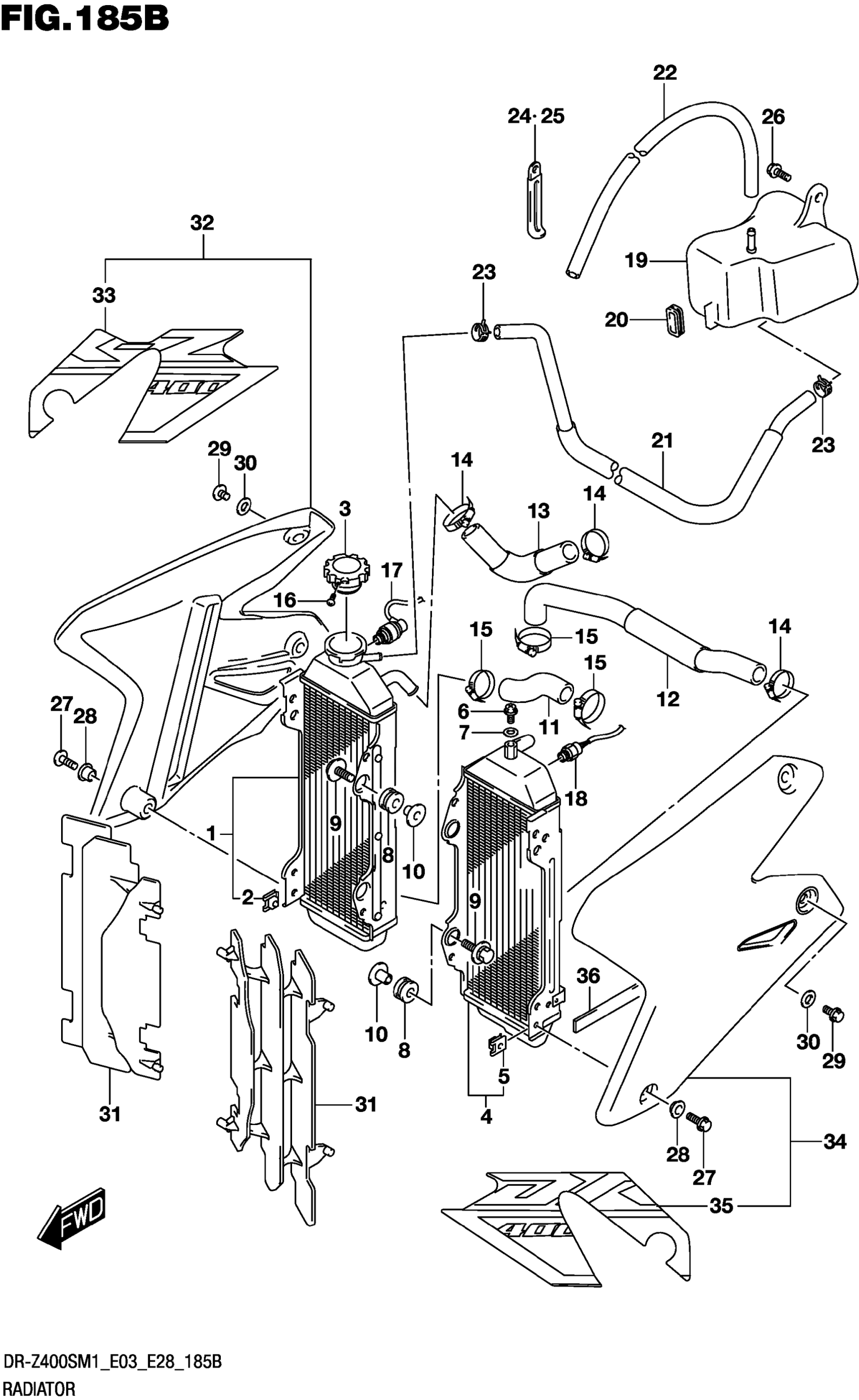

Suzuki DR-Z400SM1 (2021) RADIATOR Diagram

RADIATOR WATER R

17710-29F40

$589.20

NUT

09148-06015

$3.04

CAP RADIATOR (1.1)

17730-19D11

$42.32

RADIATOR WATER L

17720-29F40

$612.47

NUT

09148-06015

$3.04

UNION BOLT,AIR VENT

17568-50F00

$4.76

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

CUSHION RADIATOR LWR

17787-19A00

$3.56

BOLT (6X25)

09116-06147

$3.20

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

HOSE,RADIATOR INLET

17851-29F21

$33.25

HOSE RADIATOR OUTLET

17852-29F30

$50.30

HOSE RADIATOR JOINT

17853-29F10

$26.68

CLAMP

09402-28513

$6.88

CLAMP

09402-32512

$12.85

SCREW,RADIATOR CAP

17733-03D10

$2.60

SWITCH ASSY,WATER TEMP

34850-03D00

$119.72

SWITCH FAN

17680-24A30

$123.98

TANK RESERVOIR

17911-29F11

$49.89

CUSHION RESERVOIR TANK

17913-29F00

$4.43

HOSE RESERVOIR TANK INLET

17981-29F01

$21.03

HOSE (5X9X2000)

09352-50901-00B

$26.94

CLIP (ID:8.6)

09401-08411

$1.78

CLAMP (L:45)

09404-08211

$2.35

CLAMP (L:45)

09404-06429

$1.83

BOLT

01550-0612A

$1.97

BOLT (6X16)

09103-06274

$2.03

WASHER (6.3X16X1)

09169-06053

$1.49

BOLT (6X8)

09103-06275

$2.07

WASHER (6.5X14X1.6)

09160-06125

$1.91

LOUVER RADIATOR

17831-37E11

$19.07

COVER,RADIATOR RH (GRAY)

17760-33K30-YUD

$143.83

COVER,RADIATOR RH (BLACK)

17760-33K30-019

$148.15

COVER,RADIATOR RH (WHITE)

17760-33K30-30H

$148.15

.TAPE,RADIATOR COVER RH (BLAC

68685-29F30-B7Z

$41.84

.TAPE,RADIATOR COVER RH

68685-29F30-B72

$50.70

.TAPE,RADIATOR COVER RH

68685-29F30-B73

$50.70

COVER,RADIATOR LH (GRAY)

17770-33K30-YUD

$143.83

COVER,RADIATOR LH (BLACK)

17770-33K30-019

$148.15

COVER,RADIATOR LH (WHITE)

17770-33K30-30H

$148.15

.TAPE,RADIATOR COVER LH (BLAC

68695-29F30-B7Z

Unavailable

.TAPE,RADIATOR COVER LH

68695-29F30-B72

$50.70

.TAPE,RADIATOR COVER LH

68695-29F30-B73

$50.70

CUSHION,RADIATOR COVER

17798-29E00

Unavailable
