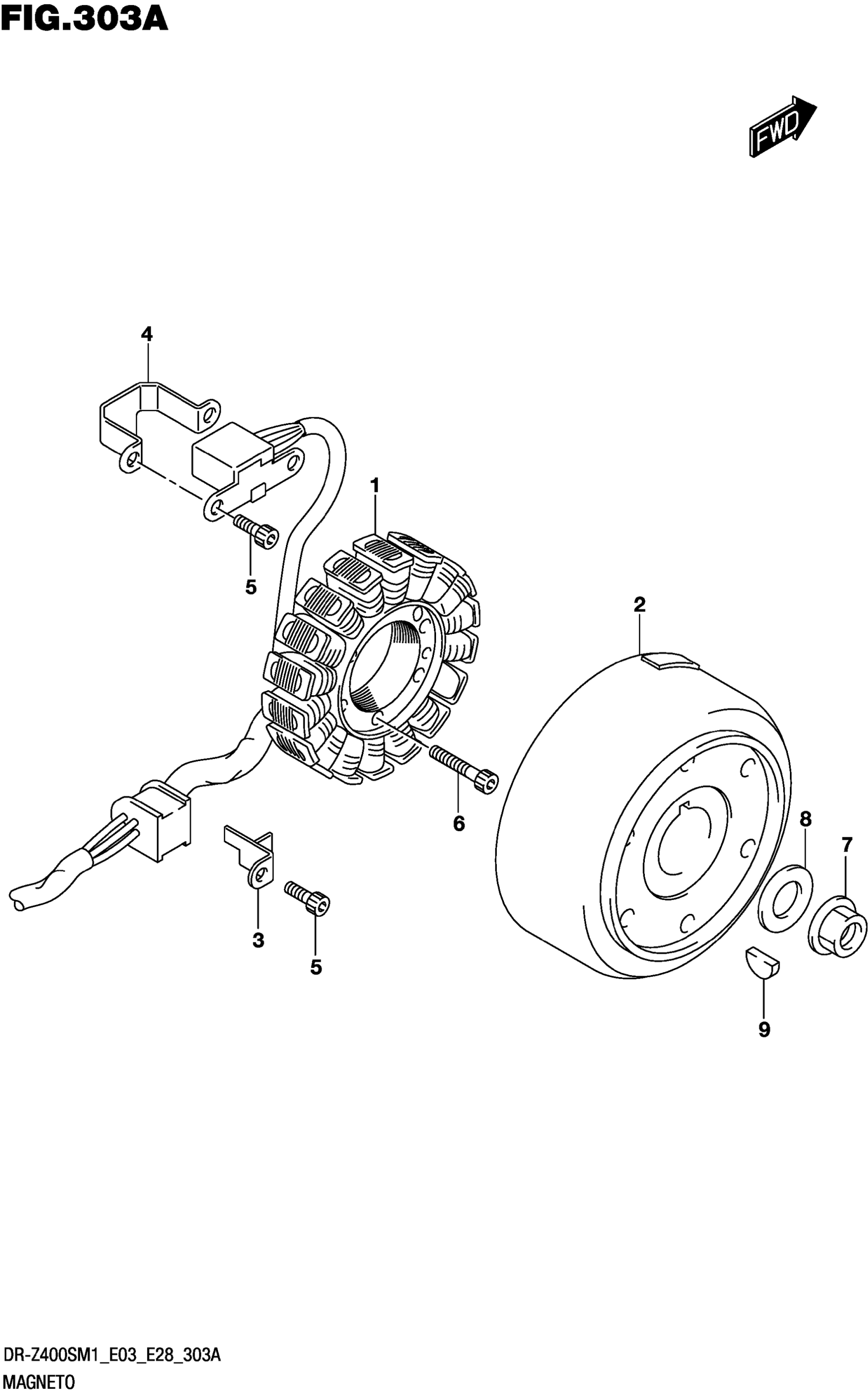

Suzuki DR-Z400SM1 (2021) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-29F00

$656.16

2

ROTOR ASSY

32102-29F00

$686.05

3

CLAMP MAGNETO LEAD NO.1

32371-13E00

$3.51

4

CLAMP MAGNETO LEAD WIRE

32371-14D01

$6.15

5

BOLT

07130-0512A

$2.25

6

BOLT

07130-0525A

$2.38

7

NUT

09159-12068

$2.62

8

WASHER (12X27X2.0)

09160-12051

$2.62

9

KEY (B:4,D:16,H6.5)

09420-04008

$3.18
