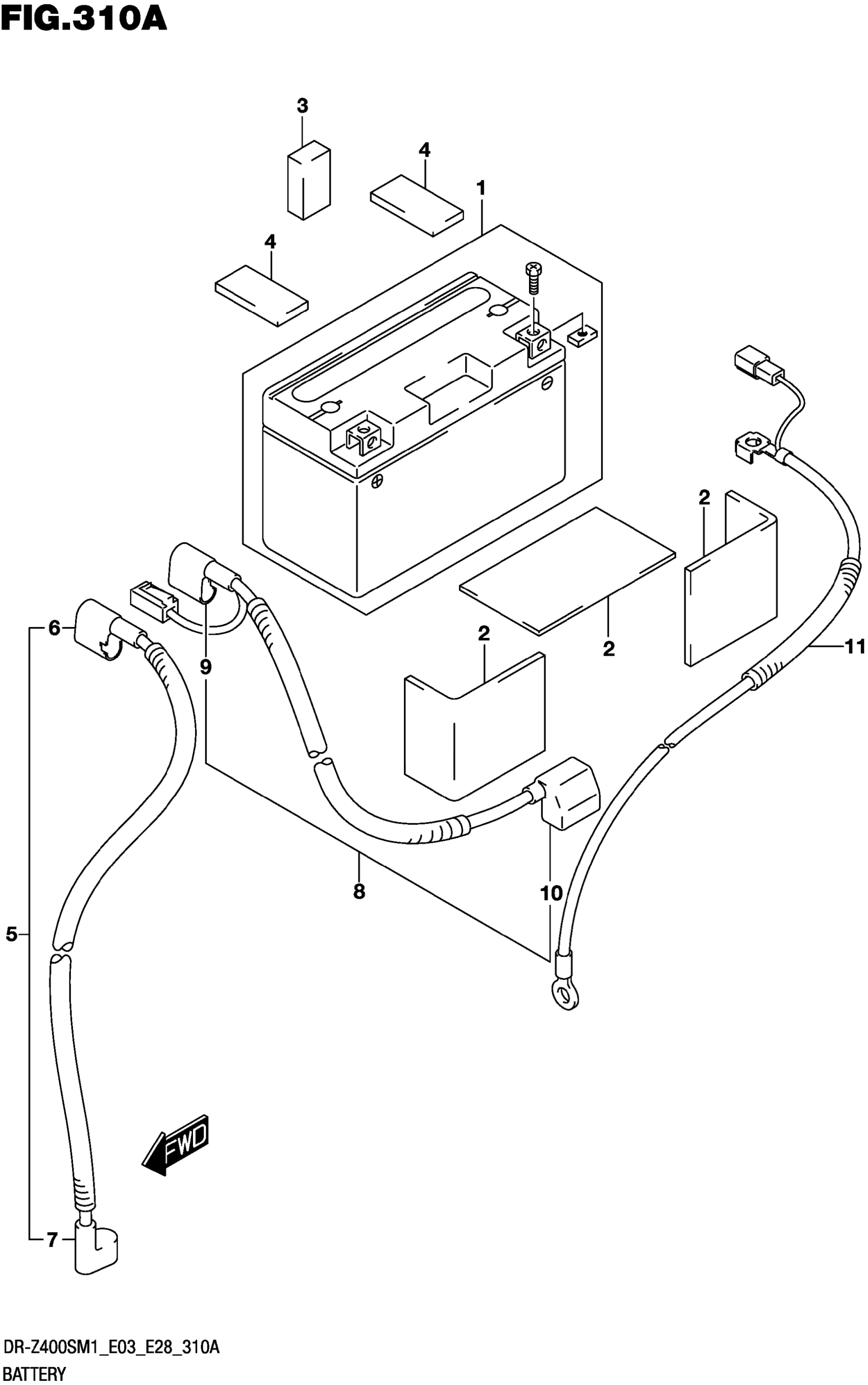

Suzuki DR-Z400SM1 (2021) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,6AH) This part replaces 33630-29F00.

33610-29F20

$129.22

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED

33651-37000

$4.09

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.09

4

CUSHION (50X42X2.0) | CUT AS REQUIRED

51553-15D40

$9.53

5

WIRE STARTER MOTOR LEAD

33810-29F00

$70.07

6

.CAP STARTER RELAY

31861-29F00

$8.62

7

.CAP STARTER MOTOR

31861-29F20

Unavailable

8

WIRE BATTERY PLUS LEAD

33820-29F00

$73.57

9

.CAP STARTER RELAY

31861-29F10

$8.28

10

.CAP BATTERY PLUS

33624-29F00

$7.40

11

WIRE BATTERY MINUS LEAD

33860-29F00

$56.53
