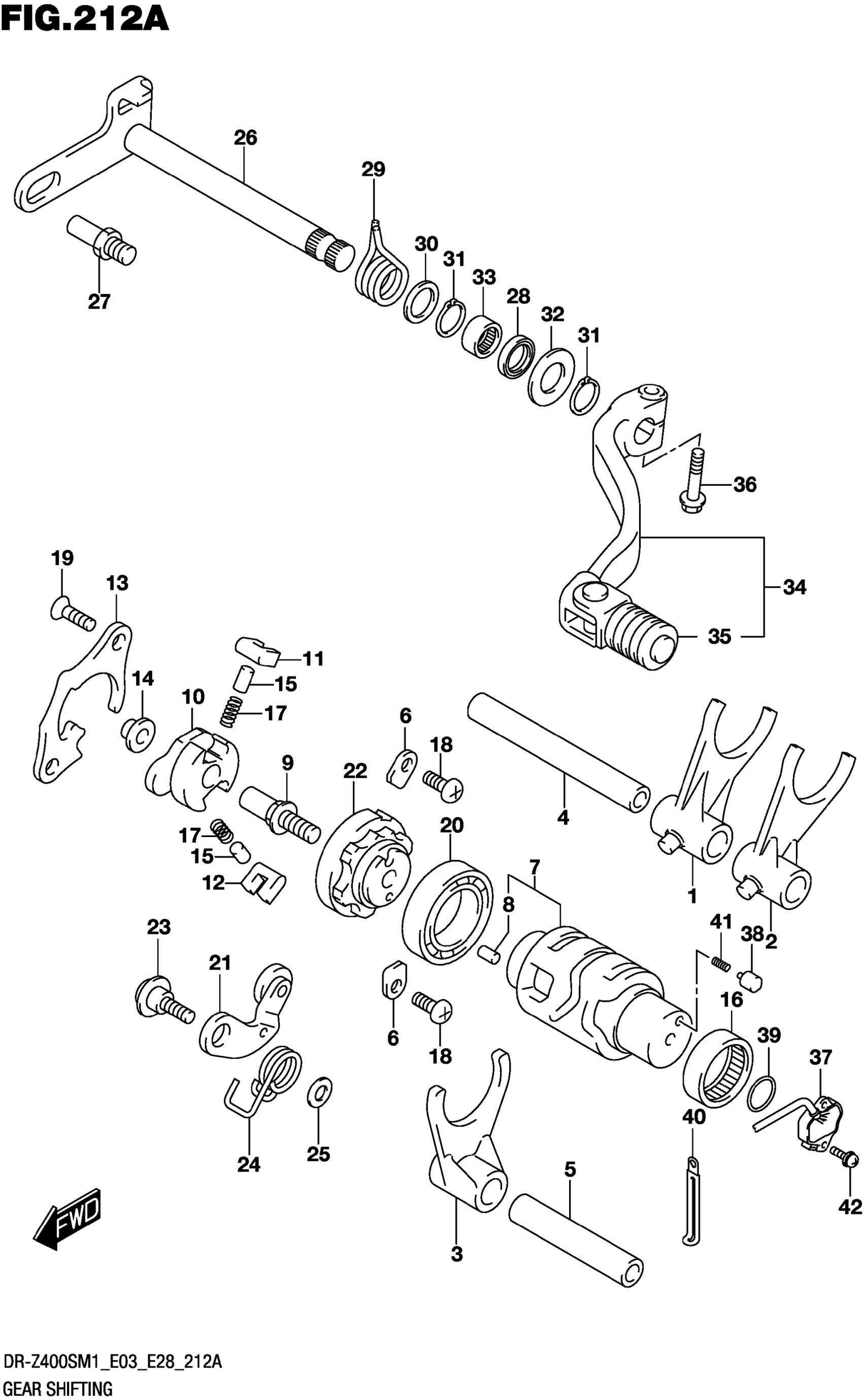

Suzuki DR-Z400SM1 (2021) GEAR SHIFTING Diagram

#

Description
Price

1

FORK GEAR SHIFT NO.1

25211-28C01

$93.58

2

FORK GEAR SHIFT NO.2

25221-28C02

$99.05

3

FORK GEAR SHIFT NO.3

25231-28C02

$94.03

4

SHAFT,GEAR SHIFT FORK (L:95)

25411-37F20

$25.08

5

SHAFT,GEAR SHIFT FORK (L:60)

25421-27C01

$20.82

6

RETAINER

24741-21A00

$2.80

7

CAM GEAR SHIFT

25310-29F10

$220.83

8

PIN (4X13.8)

04221-04089

$1.10

9

PIN SHIFT CAM DRIVEN GEAR

25313-27C02

$14.73

10

SHIFTER GEAR SHIFT CAM

25322-36E00

Unavailable

11

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

12

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

13

LIFTER GEAR SHIFT PAWL

25331-37E10

$26.50

14

SPACER (L:5)

09180-07014

$3.71

15

PIN (5X8)

09261-05003

$1.69

16

BEARING (25X32X12)

09263-25018

$19.30

17

SPRING

09440-04003

$1.48

18

SCREW (6X12)

09125-06122

$2.54

19

SCREW (6X12)

09126-06011

$2.01

20

BEARING

08113-69050

$32.64

21

STOPPER GEAR SHIFT CAM

25350-29F00

$23.73

22

PLATE GEAR SHIFT STOPPER

25381-36E11

$68.77

23

BOLT CAM STOPPER ARM

25357-29F00

$8.28

24

SPRING SHIFT CAM STOPPER

25355-29F00

$6.10

25

WASHER

08211-06121

$1.56

26

SHAFT GEAR SHIFT

25510-29F00

$98.10

27

STOPPER SHIFT ARM

25671-38B00

$6.00

28

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

29

SPRING

09444-20004

$9.10

30

SHIM (14X20X1)

09181-14139

$2.66

31

CIRCLIP

08331-3114A

$1.89

32

WASHER (14X29X1.5)

09160-14046-XC0

$5.18

33

BEARING (14X20X12)

09263-14027

$12.21

34

LEVER ASSY GEAR SHIFT

25600-05D03

$115.63

35

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$4.63

36

BOLT

01547-0625A

$2.01

37

BASE ASSY GEAR SHIFT TERMINAL

37730-20F10

Unavailable

38

PIN (5X15.5)

09209-05011

$2.02

39

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

40

CLAMP (L:45)

09404-06429

$1.82

41

SPRING

09440-04010

$1.52

42

BOLT

07120-0516A

$1.72
