Description

Price

1

HUB FRONT WHEEL

54111-29F10

$319.08

2

SPACER FR HUB BEARING (20.5X2 | X27.3X70)

54731-36E10

$25.75

3

BEARING

09262-20174

$54.65

4

SEAL OIL (25X37X6)

09283-25083

$8.37

5

AXLE FR

54711-29F10

$104.97

6

BOX ASSY SPEEDOMETER GEAR

54600-29F11

$88.95

7

SPACER FR AXLE L (L:31)

54751-36E10

$17.84

8

NUT

09159-18018

$16.98

9

DISC FRONT BRAKE

59220-29F00

$385.18

10

SCREW (6X18)

09120-06014

$2.45

11

EXPANDER FR AXLE SLIDER R

54744-29F00

$5.87

12

SPACER (5.5X8X10.5)

09180-05048

$2.03

13

SLIDER FR AXLE R

54745-29F00

$23.64

14

SLIDER FR AXLE L

54755-29F00

$26.22

15

WASHER (5.5X12X0.8)

09160-05029

$1.61

16

SPACER (5.5X9.5X26)

09180-05060

$5.60

17

BOLT (5X65)

09106-05021

$6.47

18

NUT

08316-2005B

$2.80

19

BOLT

07130-0540A

$3.02

20

NUT

09159-05050

$9.38

21

TIRE FRONT | 20/70R17M/C 58H) D208F SM,DUNLOP This part replaces 55110-29FA0.

55110-29FA1

$265.53

22

TUBE ASSY WHEEL INNER

55200-29FA0

$58.53

23

PROTECTOR WHEEL INNER TUBE

55261-29FA0

$6.40

24

RIM FR WHEEL (17XMT3.50) | BLACK

55311-29F10

$465.85

25

SPOKE SET FRONT WHEEL

55320-29F10

$121.35

26

WASHER (18X26X2.8)

09160-18034

$2.97

27-1

BALANCER WHEEL (15G)

55411-26G00

$7.73

27-2

BALANCER WHEEL (30G)

55413-41F00

$7.50

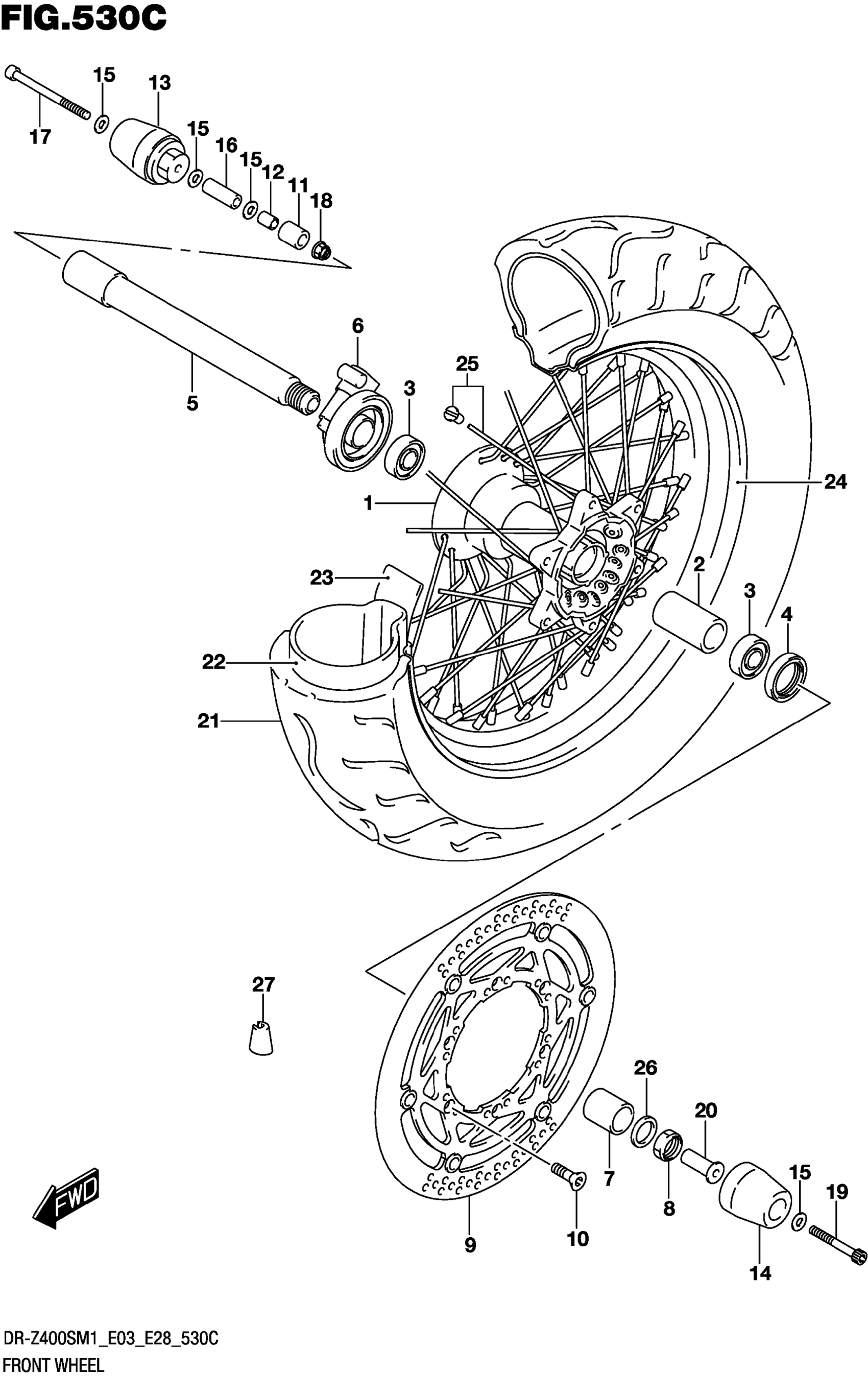

Suzuki DR-Z400SM1 (2021) FRONT WHEEL (DR-Z400SM) Diagram
