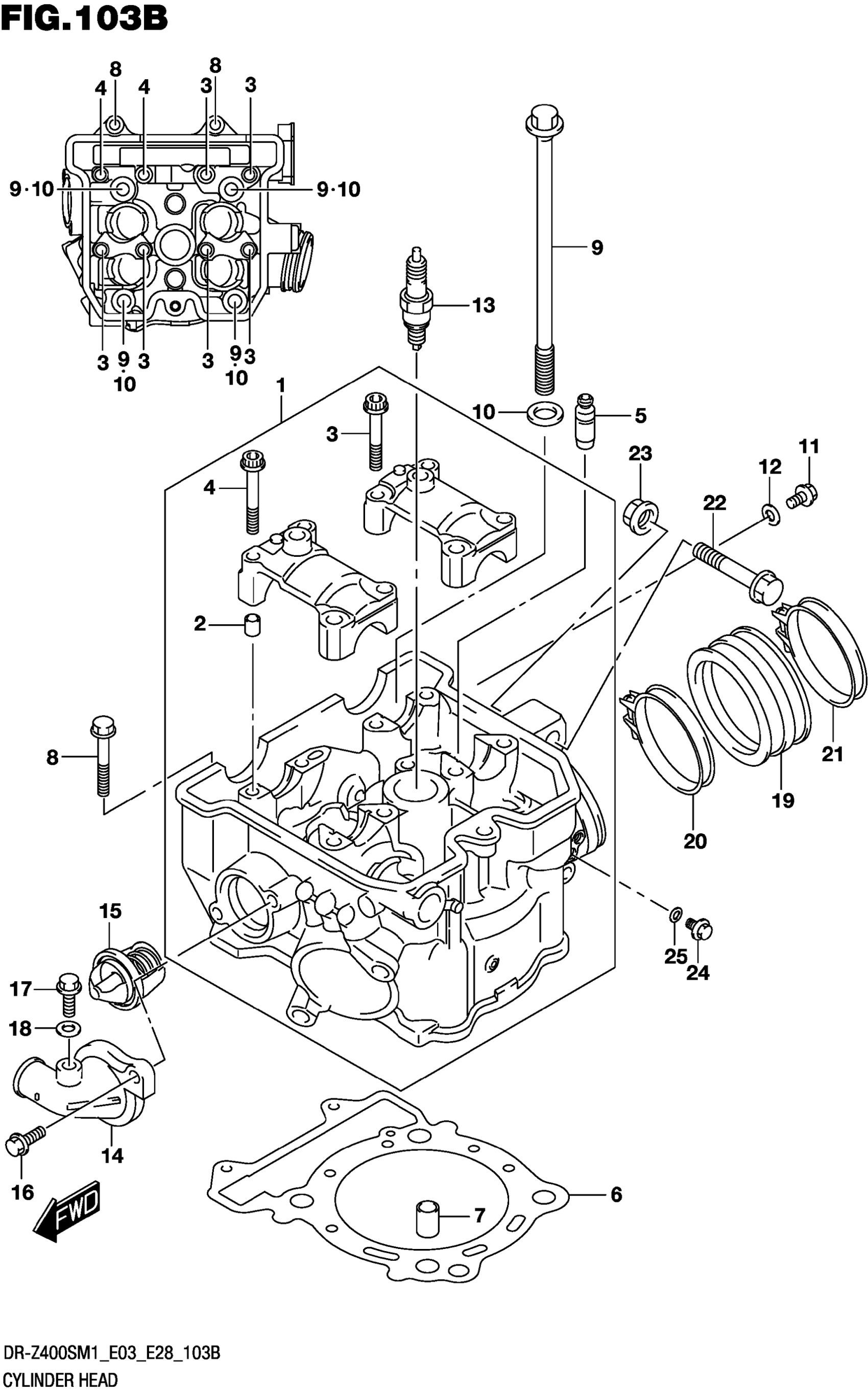

Suzuki DR-Z400SM1 (2021) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY CYLINDER

11100-29F40

$960.81

2

.PIN (8X11)

09206-08001

$1.82

3

BOLT

07120-0640A

$3.32

4

.BOLT

07120-0645A

$4.18

5

GUIDE VALVE (OS:0.3) | OPT

11115-20E70

$31.58

6

.GASKET CYLINDER HEAD

11141-29F01

$39.68

7

PIN (10.4X13X18)

04211-13189

$2.25

8

BOLT (6X39)

09103-06026

$1.84

9

BOLT (10X175)

09103-10276

$14.88

10

WASHER (10.5X19X2.0)

09160-10082

$1.66

11

BOLT

01550-0612A

$2.01

12

GASKET (5.8X13X1.2)

09168-06023

$2.09

13-1

SPARK PLUG (CR8E)

09482-00456

$6.17

13-2

SPARK PLUG (U24ESR-N)

09482-00457

$5.79

13-3

SPARK PLUG (CR7E)

09482-00516

$5.92

13-4

PLUG SPARK (CR9E)

09482-00458

$5.92

13-5

SPARK PLUG (CR10E)

09482-00460

$5.92

13-6

SPARK PLUG (U22ESR-N)

09482-00515

$5.67

13-7

SPARK PLUG (U27ESR-N)

09482-00459

$5.79

13-8

SPARK PLUG (U31ESR-N)

09482-00461

$12.00

14

COVER THERMOSTAT

17661-29F10

$51.22

15

THERMOSTAT WATER

17670-33401

$34.06

16

BOLT

01547-0616A

$2.09

17

UNION BOLT,AIR VENT

17568-50F00

$6.32

18

GASKET (6.4X11.5X0.84)

09168-06026

$2.88

19

PIPE INTAKE This part replaces 13111-29F10.

13111-29F11

$13.15

20

.CLAMP

09402-58208

$4.99

21

.CLAMP (L:25)

09402-52208

$4.99

22

BOLT (10X50)

09103-10235

$6.15

23

NUT (M10)

09159-10115

$3.31

24

BOLT (8X9.5)

09103-08421

$4.48

25

GASKET (8.2X14X1)

09168-08016

$1.70
