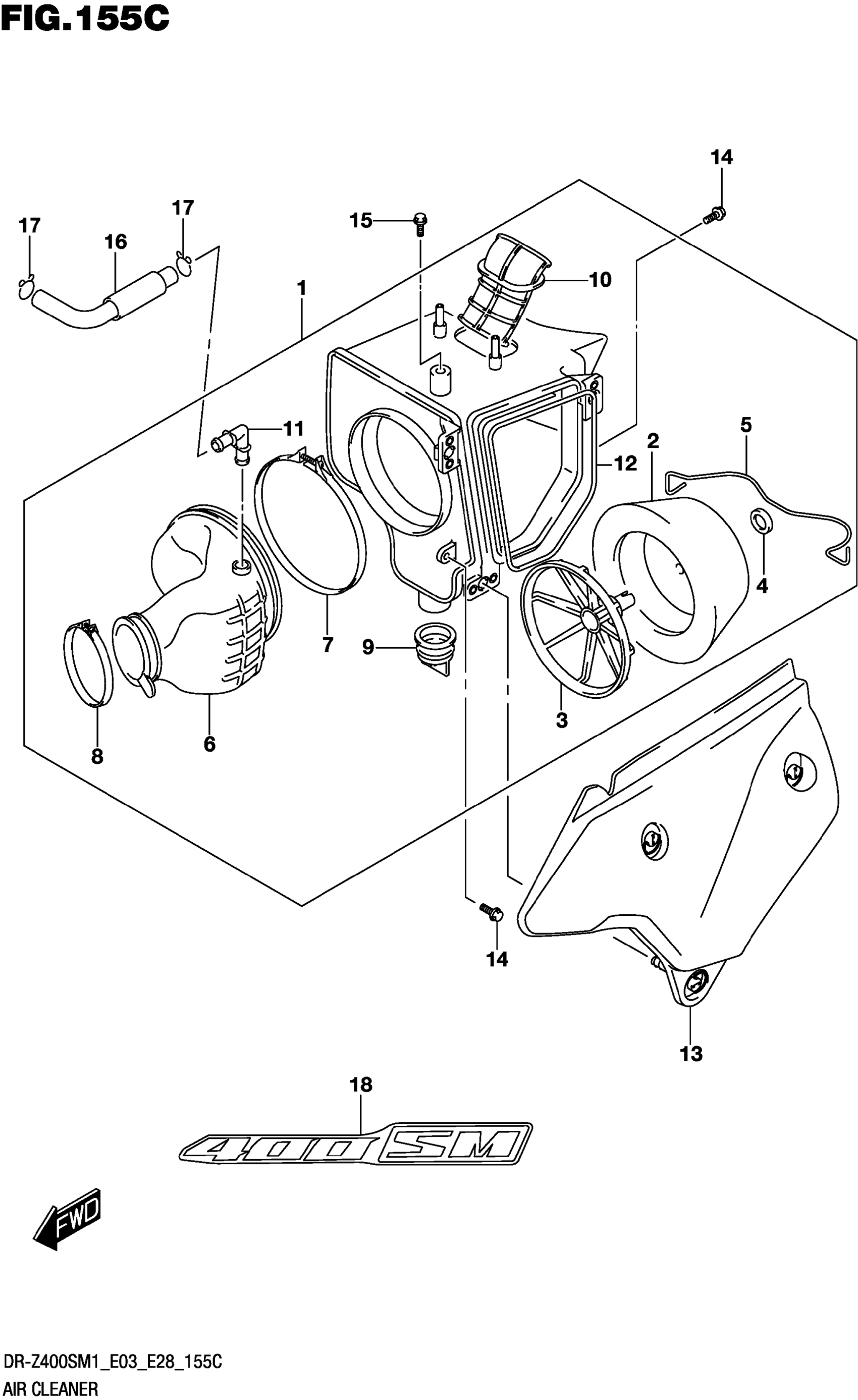

Suzuki DR-Z400SM1 (2021) AIR CLEANER (DR-Z400SM) Diagram

#

Description
Price

1

CLEANER AIR

13701-29FB2

$382.36

2

.FILTER ASSY

13780-44E00

$39.84

3

.HOLDER FILTER

13791-44E00

$15.16

4

.SPACER

13796-44E00

$3.62

5

.SPRING

13941-29F00

$33.96

6

.TUBE OUTLET

13881-29FB0

$80.28

7

.CLAMP

13826-29F00

$7.97

8

.CLAMP (L:25)

09402-64203

$6.58

9

.VALVE

13872-29F00

$10.23

10

.TUBE INLET

13891-29FA0

$39.52

11

.JOINT

13858-14D20

$7.22

12

.GASKET AIR CLEANER

13746-29F00

$5.74

13-1

CAP AIR CLEANER (WHITE)

13740-29FB1-30H

$200.83

13-2

CAP AIR CLEANER (BLACK)

13740-29FB1-019

$198.43

14

BOLT

01547-0616A

$2.03

15

BOLT (6X14.6)

09111-06054

$3.70

16

TUBE BREATHER

13850-29FA2

$12.08

17

.CLIP (ID:14.5)

09401-14101

$2.34

18-1

EMBLEM,"400SM"

68135-29FN0-B74

$13.73

18-2

EMBLEM,"400SM"

68135-29FN0-B75

$13.73
