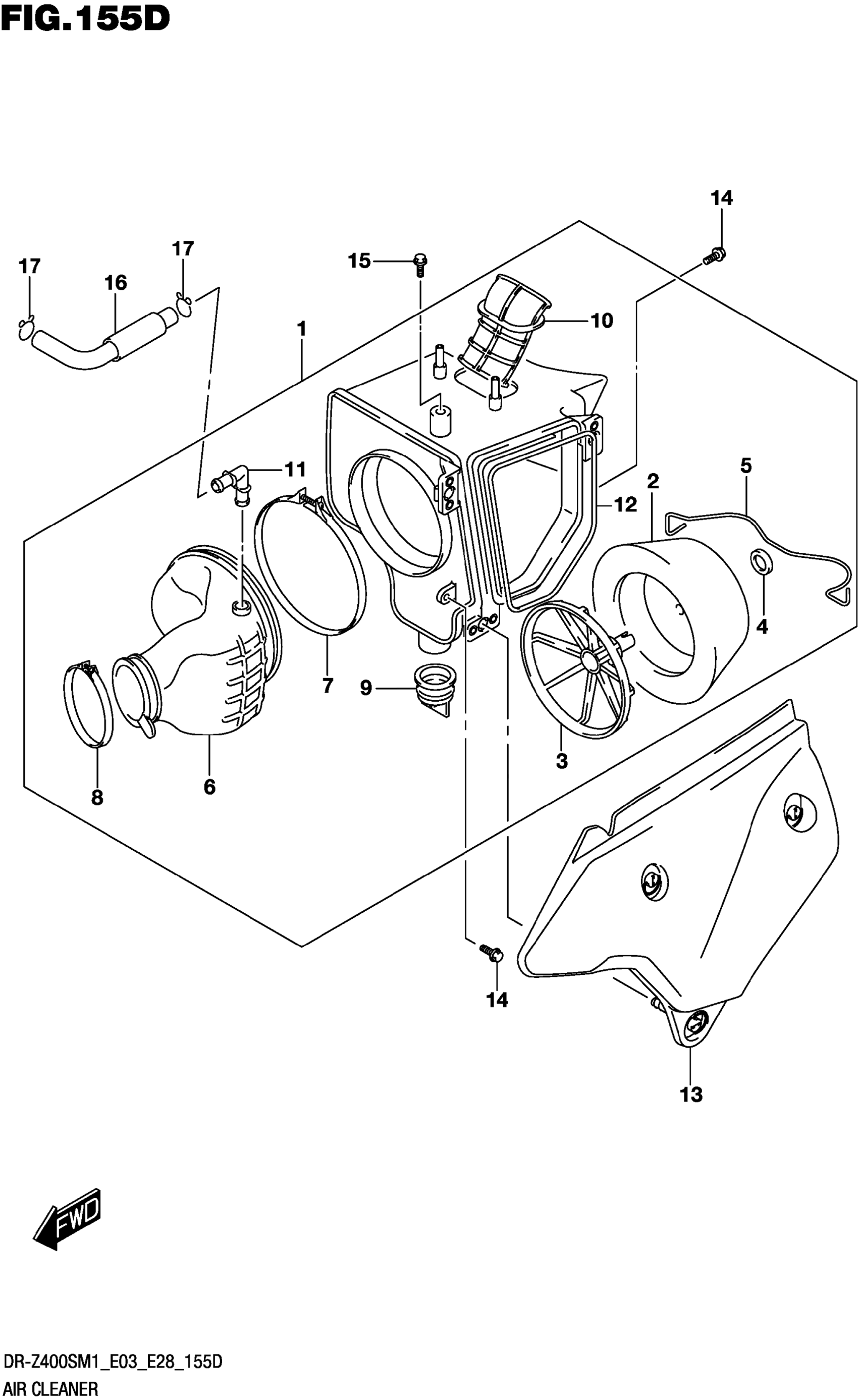

Suzuki DR-Z400SM1 (2021) AIR CLEANER (DR-Z400S) Diagram

Description

Price

CLEANER AIR

13701-29FB2

$382.36

.FILTER ASSY

13780-44E00

$39.84

.HOLDER FILTER

13791-44E00

$15.16

.SPACER

13796-44E00

$3.62

.SPRING

13941-29F00

$33.96

.TUBE OUTLET

13881-29FB0

$80.28

.CLAMP

13826-29F00

$7.97

.CLAMP (L:25)

09402-64203

$6.58

.VALVE

13872-29F00

$10.23

.TUBE INLET

13891-29FA0

$39.52

.JOINT

13858-14D20

$7.22

.GASKET AIR CLEANER

13746-29F00

$5.74

CAP AIR CLEANER (BLACK)

13740-29FB1-019

$198.43

BOLT

01547-0616A

$2.03

BOLT (6X14.6)

09111-06054

$3.70

TUBE BREATHER

13850-29FA2

$12.08

.CLIP (ID:14.5)

09401-14101

$2.34
