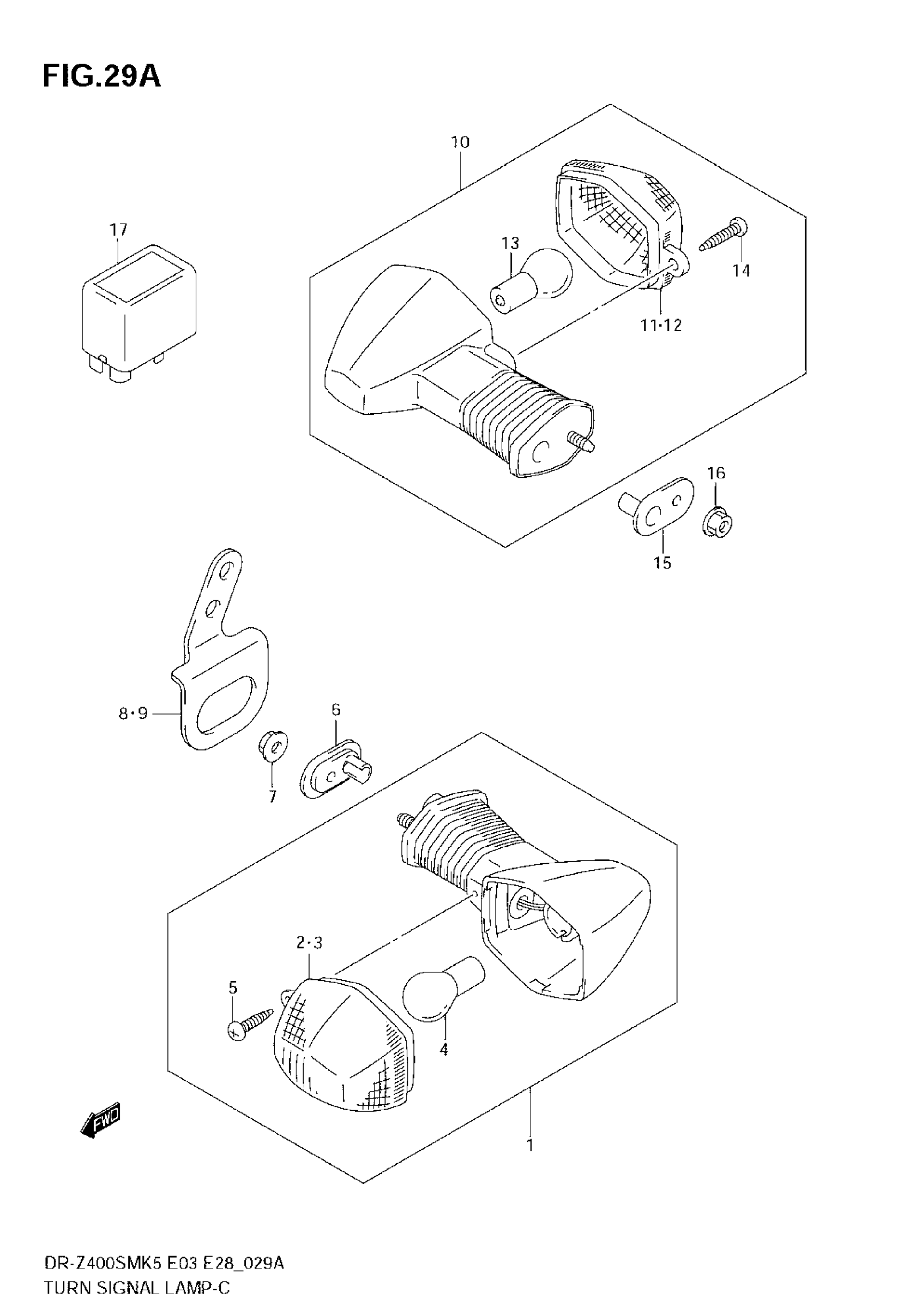

Suzuki DR-Z400SM (2008) TURN SIGNAL LAMP (MODEL K6/K7/K8) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-29FA0

$110.40

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-29FA0

$110.40

2

LENS, RH

35612-29FA0

$16.23

3

LENS, LH

35632-29FA0

$16.23

4

BULB (12V,21W)

09471-12186

$16.18

5

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

6

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

7

NUT

08316-1005B

$2.50

8

BRACKET, FRONT RH

35671-29F00

$5.85

9

BRACKET, FRONT LH

35681-29F00

$6.02

10

LAMP ASSY, REAR TURN RH

35603-29FA0

$113.57

10

LAMP ASSY, REAR TURN LH | Includes Item(s) 11 - 14

35604-29FA0

$80.54

11

LENS, RH

35632-29FA0

$16.23

12

LENS, LH

35612-29FA0

$16.23

13

BULB (12V,21W)

09471-12186

$16.18

14

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

15

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

16

NUT

08316-1005B

$2.50

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
