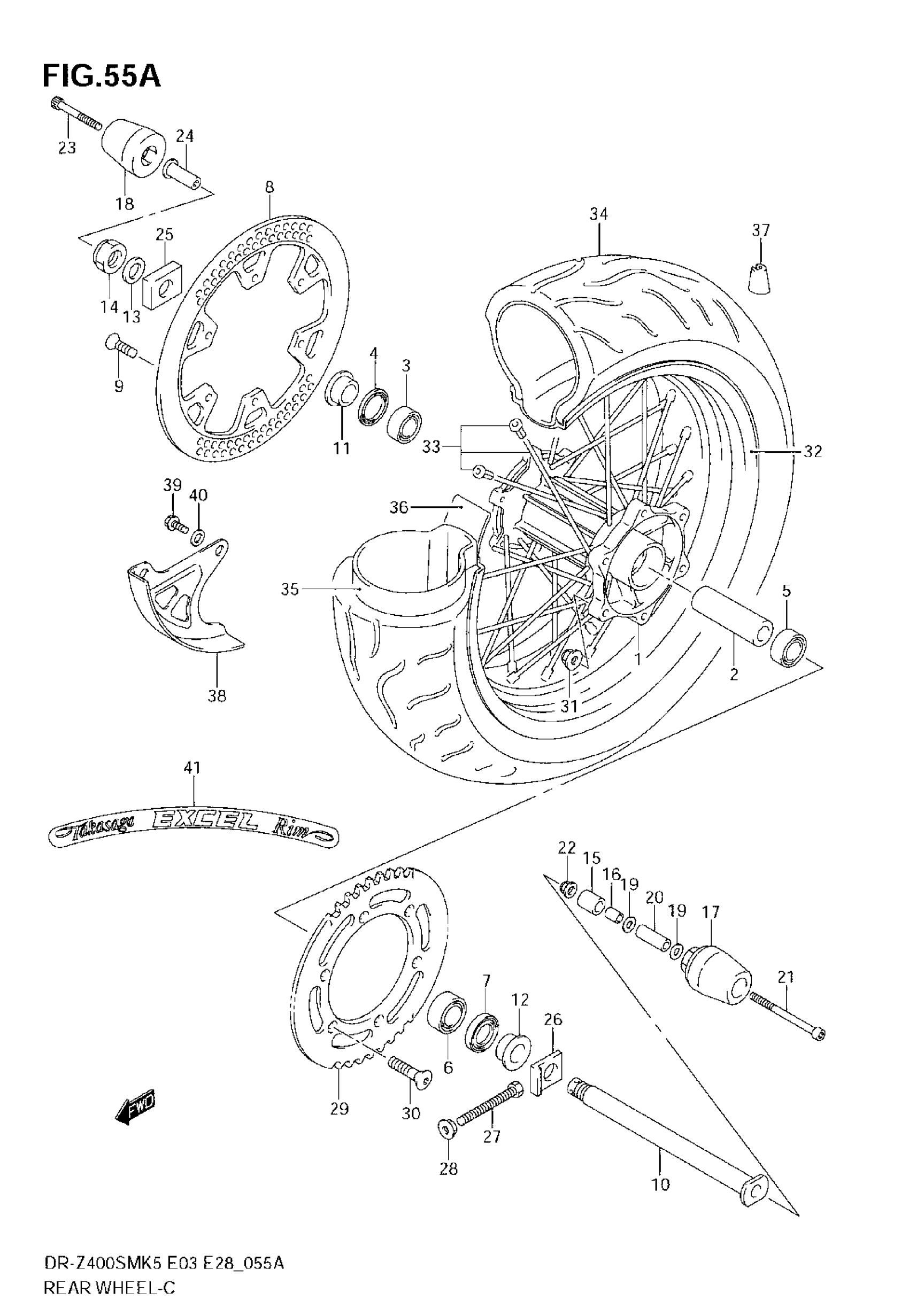

Suzuki DR-Z400SM (2008) REAR WHEEL (MODEL K7/K8) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-29F10

$472.30

2

SPACER, BEARING

64731-29F00

$31.80

3

BEARING, RH

08133-60047

$25.82

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.89

5

BEARING, LH

08133-60047

$25.82

6

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

7

SEAL, LH (29X47X5)

09283-29006

$11.53

8

DISC, REAR BRAKE

69211-29F00

$318.25

9

SCREW

09120-06014

$2.45

10

AXLE, REAR

64711-29F40

$124.75

11

SPACER, RH

64751-28E20

$27.30

12

SPACER, LH

64751-28E20

$27.30

13

WASHER

09160-19022

$4.90

14

NUT

08319-2118A

$4.90

15

EXPANDER, AXLE SLIDER

54744-29F00

$5.87

16

SPACER, EXPANDER

09180-05048

$2.03

17

SLIDER, RR AXLE, LH

64755-29F00

$31.27

18

SLIDER, AXLE

54755-29F00

$26.22

19

WASHER, AXLE SLIDER

09160-05029

$1.61

20

SPACER, AXLE SLIDER

09180-05060

$5.60

21

BOLT, AXLE SLIDER NO.1

09106-05021

$6.47

22

NUT, AXLE SLIDER NO.1

08316-2005B

$2.80

23

BOLT, AXLE SLIDER NO.2

07130-0540A

$3.02

24

NUT, AXLE SLIDER NO.2

09159-05050

$9.38

25

ADJUSTER, CHAIN RH

61445-29F00

$40.45

26

ADJUSTER, CHAIN LH

61446-29F00

$39.68

27

BOLT

09100-08287

$3.10

28

NUT

09159-08034

$1.62

29

SPROCKET, REAR (NT:41-520)

64511-14E00

$72.18

30

SCREW (8X30.5)

09120-08010

$2.36

31

NUT

08319-3108A

$2.32

32

RIM, REAR WHEEL (17XMT4.50)

65311-29F30

$677.25

33

SPOKE ASSY, REAR WHEEL

65320-29F30

$115.74

34

TIRE REAR This part replaces 65110-29FA0.

65110-29FA1

$343.02

35

TUBE ASSY, WHEEL INNER

65200-29FA0

$48.13

36

PROTECTOR, INNER TUBE

65261-29FA0

$7.12

37

BALANCER WHEEL (15G)

55411-26G00

$7.73

37

BALANCER WHEEL (30G)

55413-41F00

$7.50

38

COVER, REAR DISC This part replaces 69231-37F11.

69231-37F12

$14.65

39

BOLT

09103-06256

$2.28

40

WASHER

08322-01067

$2.13

41

EMBLEM,EXCEL(8 | ONE SET WITH EIGHT PIECES This part replaces 68390-29F00-CVZ.

68390-29F01-CVZ

$29.55
