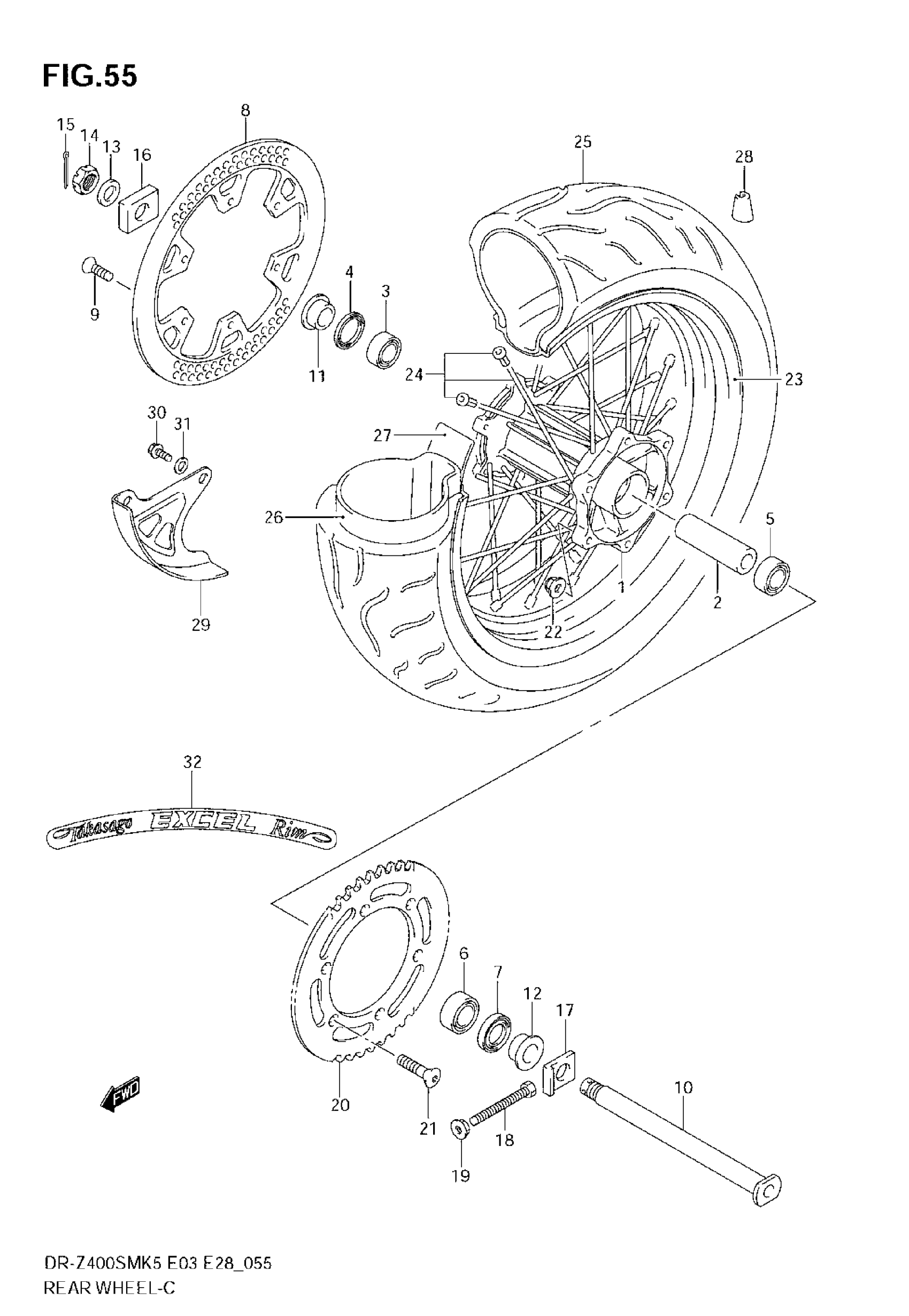

Suzuki DR-Z400SM (2008) REAR WHEEL (MODEL K5/K6) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-29F10

$472.30

2

SPACER, BEARING

64731-29F00

$31.80

3

BEARING, RH

08133-60047

$25.82

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.89

5

BEARING, LH

08133-60047

$25.82

6

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

7

SEAL, LH (29X47X5)

09283-29006

$11.53

8

DISC, REAR BRAKE

69211-29F00

$318.25

9

SCREW

09120-06014

$2.45

10

AXLE, REAR

64711-29F30

$129.50

11

SPACER, RH

64751-28E20

$27.30

12

SPACER, LH

64751-28E20

$27.30

13

WASHER

09160-19022

$4.90

14

NUT This part replaces 08314-40183.

08314-4018A

$4.64

15

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

16

ADJUSTER, CHAIN RH

61445-29F00

$40.45

17

ADJUSTER, CHAIN LH

61446-29F00

$39.68

18

BOLT

09100-08287

$3.10

19

NUT

09159-08034

$1.62

20

SPROCKET, REAR (NT:41-520)

64511-14E00

$72.18

21

SCREW (8X30.5)

09120-08010

$2.36

22

NUT This part replaces 08319-31088.

08319-3108A

$2.32

23

RIM, REAR WHEEL (17XMT4.50)

65311-29F30

$677.25

24

SPOKE ASSY, REAR WHEEL

65320-29F30

$115.74

25

TIRE REAR This part replaces 65110-29FA0.

65110-29FA1

$343.02

26

TUBE ASSY, WHEEL INNER

65200-29FA0

$48.13

27

PROTECTOR, INNER TUBE

65261-29FA0

$7.12

28

BALANCER, WHEEL NO.2

55412-41F00

$8.12

28

BALANCER WHEEL (30G)

55413-41F00

$7.50

29

COVER, REAR DISC This part replaces 69231-37F10.

69231-37F12

$14.65

30

BOLT

09103-06256

$2.28

31

WASHER

08322-01067

$2.13

32

EMBLEM,EXCEL(8 | MODEL K6 ONE SET WITH EIGHT PIECES This part replaces 68390-29F00-8JR.

68390-29F01-8JR

$31.90
