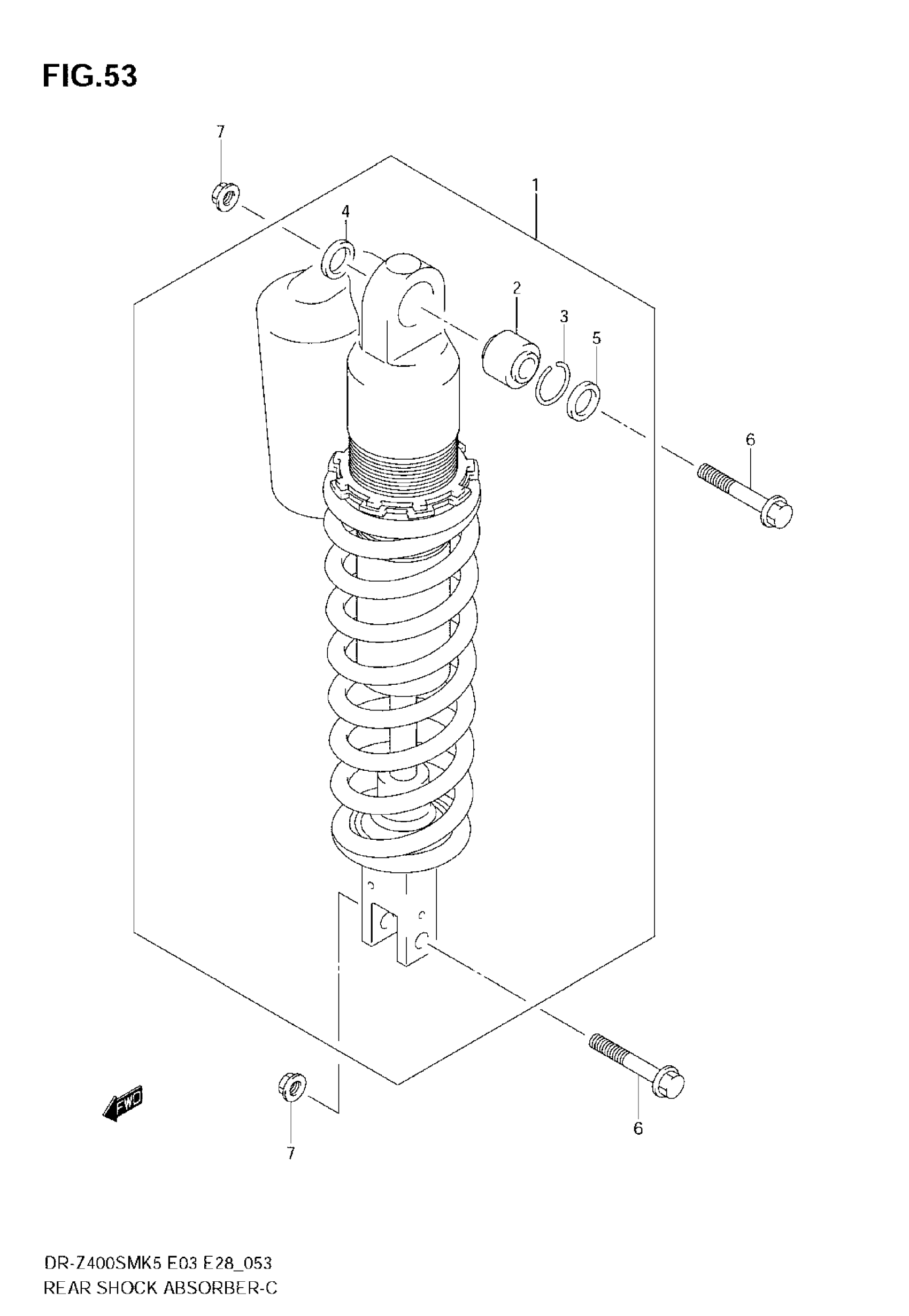

Suzuki DR-Z400SM (2008) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K5 E3,E33 FOR YU1

62100-29FC0-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K5/K6 E3,E33 FOR 019

62100-29FC0-28W

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K6 E3,E33 FOR YU1

62100-29FC0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K7 E3,E33 FOR N9J

62100-29FC0-28W

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K7 E3,E33 FOR YU1,019

62100-29FC0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K8 E3,E33 FOR 30H

62100-29FC0-28W

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K8 E3,E33 FOR 019

62100-29FC0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K5 E28 FOR YU1

62100-29FB0-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K5/K6 E28 FOR 019

62100-29FB0-28W

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K6 E28 FOR YU1

62100-29FB0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K7 E28 FOR N9J

62100-29FB0-28W

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K7 E28 FOR YU1,019

62100-29FB0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K8 E28 FOR 30H

62100-29FB0-28W

Unavailable

1

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K8 E28 FOR 019; Includes Item(s) 2 - 5

62100-29FB0-YKS

Unavailable

2

BEARING (10X26X22)

62175-36E00

$102.82

3

RING

62277-27C40

$3.95

4

SEAL, DUST RH

62226-36E00

$10.12

5

SEAL, DUST LH

62226-36E10

$10.32

6

BOLT (10X47.5)

09103-10149

$3.70

7

NUT

09159-10115

$3.55
