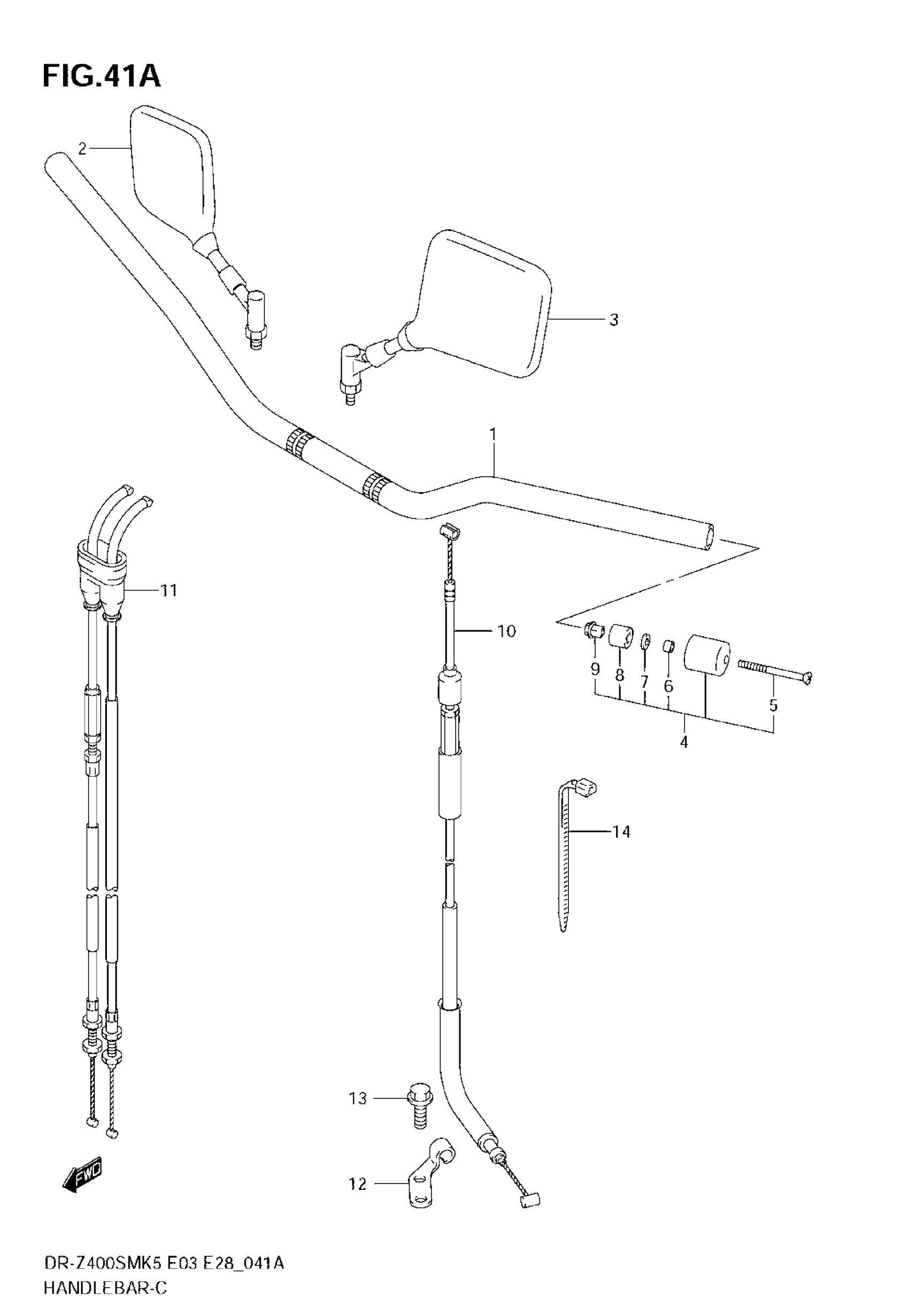

Suzuki DR-Z400SM (2008) HANDLEBAR (MODEL K7/K8) Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-29F40-13L.

56111-29F41

$315.07

2

MIRROR ASSY RR VIEW R

56500-06G30

$156.05

3

MIRROR ASSY RR VIEW L

56600-06G30

$156.05

4

BALANCER SET, HANDLEBAR | Includes Item(s) 5 - 9 This part replaces 56200-29840.

56200-29842

$48.93

5

SCREW

02122-0670B

$3.72

6

SPACER

09180-06246

$2.12

7

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

8

EXPANDER

56272-29F00

$7.57

9

NUT This part replaces 56273-29F00.

56273-29F01

$19.78

10

CABLE, CLUTCH

58200-29F10

$33.22

11

CABLE SET, THROTTLE This part replaces 58301-29F10.

58301-29F11

$62.89

12

STOPPER, CLUTCH CABLE

58634-29F00

$12.57

13

BOLT, STOPPER

01550-0612B

$2.39

14

CLAMP

09407-10404

$2.90

14

CLAMP

09407-25401

$4.66
