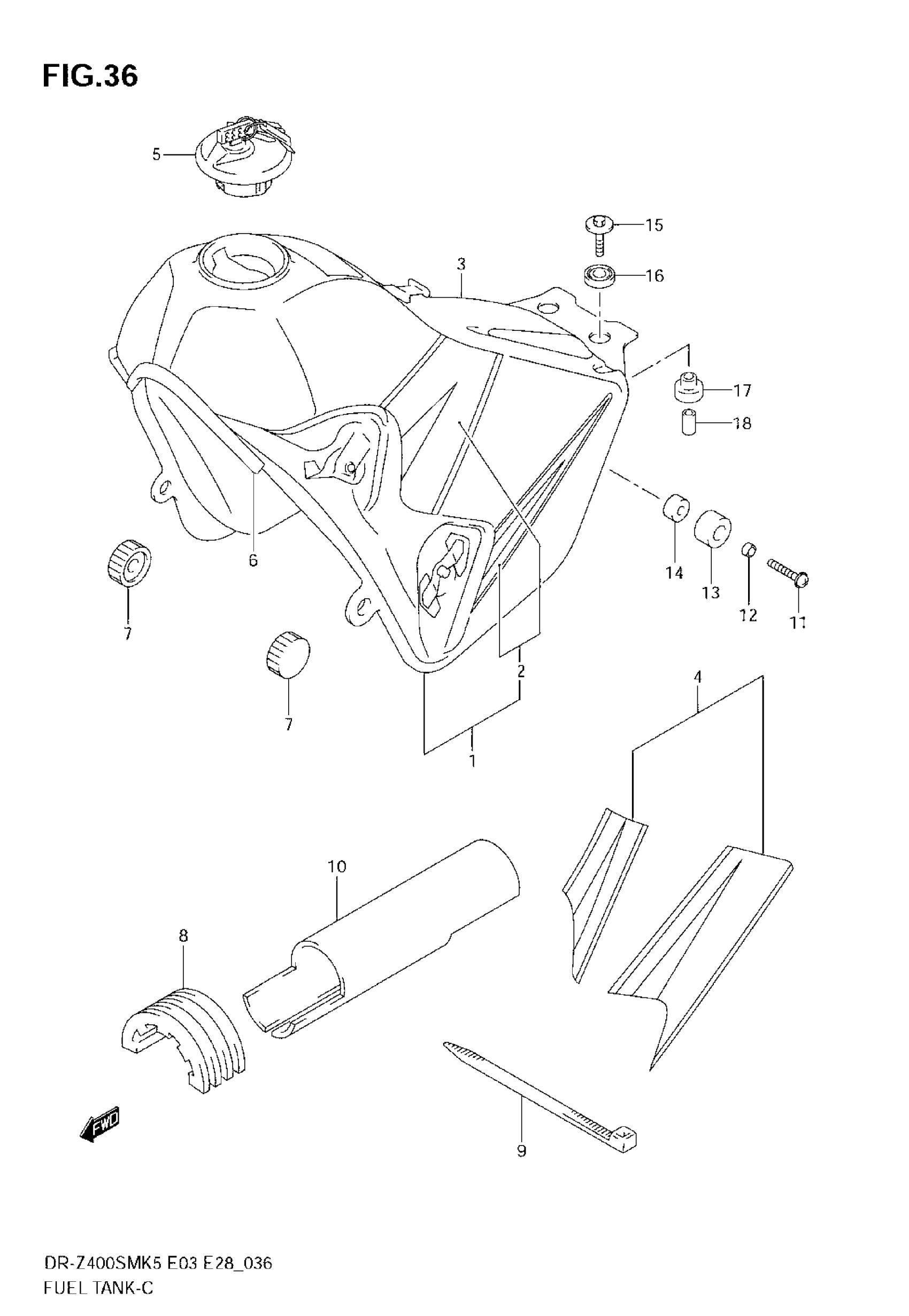

Suzuki DR-Z400SM (2008) FUEL TANK (MODEL K5/K6) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | MODEL K5 E3,E28

49100-29F10-019

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K5 E3,E28

49100-29F10-YU1

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K5 E33

49100-29F20-019

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K5 E33; Includes Item(s) 2 - 2

49100-29F20-YU1

Unavailable

2

TAPE SET | MODEL K5 FOR 019

68110-29FC0-BYK

Unavailable

2

TAPE SET | MODEL K5 FOR YU1

68110-29FC0-AZR

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K6 E3,E28

49100-29F80-019

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K6 E3,E28

49100-29F80-YU1

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K6 E33

49100-29F90-019

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K6 E33; Includes Item(s) 4 - 4

49100-29F90-YU1

Unavailable

4

TAPE SET | MODEL K6 FOR 019

68110-29FF0-CNM

Unavailable

4

TAPE SET | MODEL K6 FOR YU1

68110-29FF0-CFK

Unavailable

5

CAP SET FUEL TANK FILLER | E3,E28 This part replaces 44200-29820.

44200-29821

$140.27

5

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

6

MOLDING, FRONT

68241-04X50-00B

$27.30

7

CUSHION, FRONT

09329-10016

$3.10

8

CUSHION, UPPER

44541-29F00

$34.55

9

CLAMP

09407-30402

$4.11

10

SHIELD, FUEL TANK

44194-29F00

Unavailable

11

SCREW

02112-1630B

$3.08

12

SPACER

09180-06215

$7.95

13

CUSHION, SIDE

45149-14D00

$6.63

14

SPACER

09180-06306

$2.03

15

BOLT, REAR

09116-06172

$2.50

16

CUSHION, UPPER

09320-14022

$3.63

17

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

18

SPACER

09180-06271

$2.35
