Description

Price

1

HUB, FRONT WHEEL

54111-29F10

$319.08

2

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

$25.75

3

BEARING This part replaces 08130-69047.

08130-6904B

$43.88

4

SEAL, LH (25X37X6)

09283-25083

$8.37

5

AXLE, FRONT

54711-29F10

$104.97

6

BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F10.

54600-29F11

$88.95

7

SPACER, AXLE LH (L:31)

54751-36E10

$17.84

8

NUT

09159-18018

$16.98

9

DISC, FRONT BRAKE

59220-29F00

$385.18

10

SCREW

09120-06014

$2.45

11

EXPANDER, AXLE SLIDER

54744-29F00

$5.87

12

SPACER, EXPANDER

09180-05048

$2.03

13

SLIDER, FR AXLE, R

54745-29F00

$23.64

14

SLIDER, AXLE

54755-29F00

$26.22

15

WASHER, AXLE SLIDER

09160-05029

$1.61

16

SPACER, AXLE SLIDER

09180-05060

$5.60

17

BOLT, AXLE SLIDER NO.1

09106-05021

$6.47

18

NUT This part replaces 08316-20053.

08316-2005A

$2.19

19

BOLT, AXLE SLIDER NO.2

07130-0540A

$3.02

20

NUT, AXLE SLIDER NO.2

09159-05050

$9.38

21

TIRE FRONT This part replaces 55110-29FA0.

55110-29FA1

$265.53

22

TUBE ASSY, WHEEL INNER

55200-29FA0

$58.53

23

PROTECTOR, INNER TUBE

55261-29FA0

$6.40

24

RIM FR WHEEL (17XMT3.50)

55311-29F10

$465.85

25

SPOKE SET, FRONT WHEEL

55320-29F10

$121.35

26

WASHER

09160-18034

$2.97

27

BALANCER WHEEL (15G)

55411-26G00

$7.73

27

BALANCER WHEEL (30G)

55413-41F00

$7.50

28

EMBLEM,EXCEL(8 | ONE SET WITH EIGHT PIECES This part replaces 68390-29F00-CVZ.

68390-29F01-CVZ

$29.55

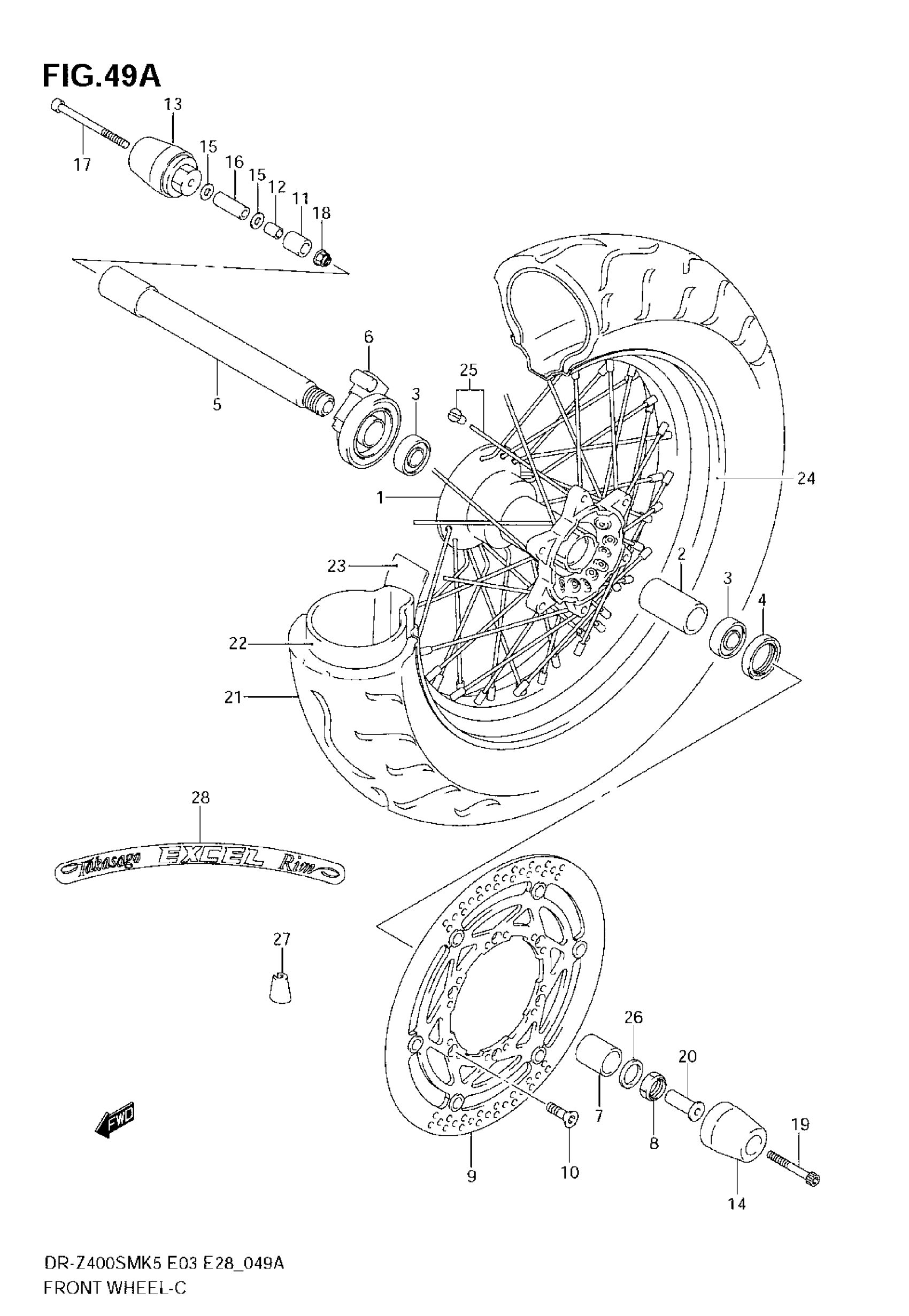

Suzuki DR-Z400SM (2008) FRONT WHEEL (MODEL K7/K8) Diagram
