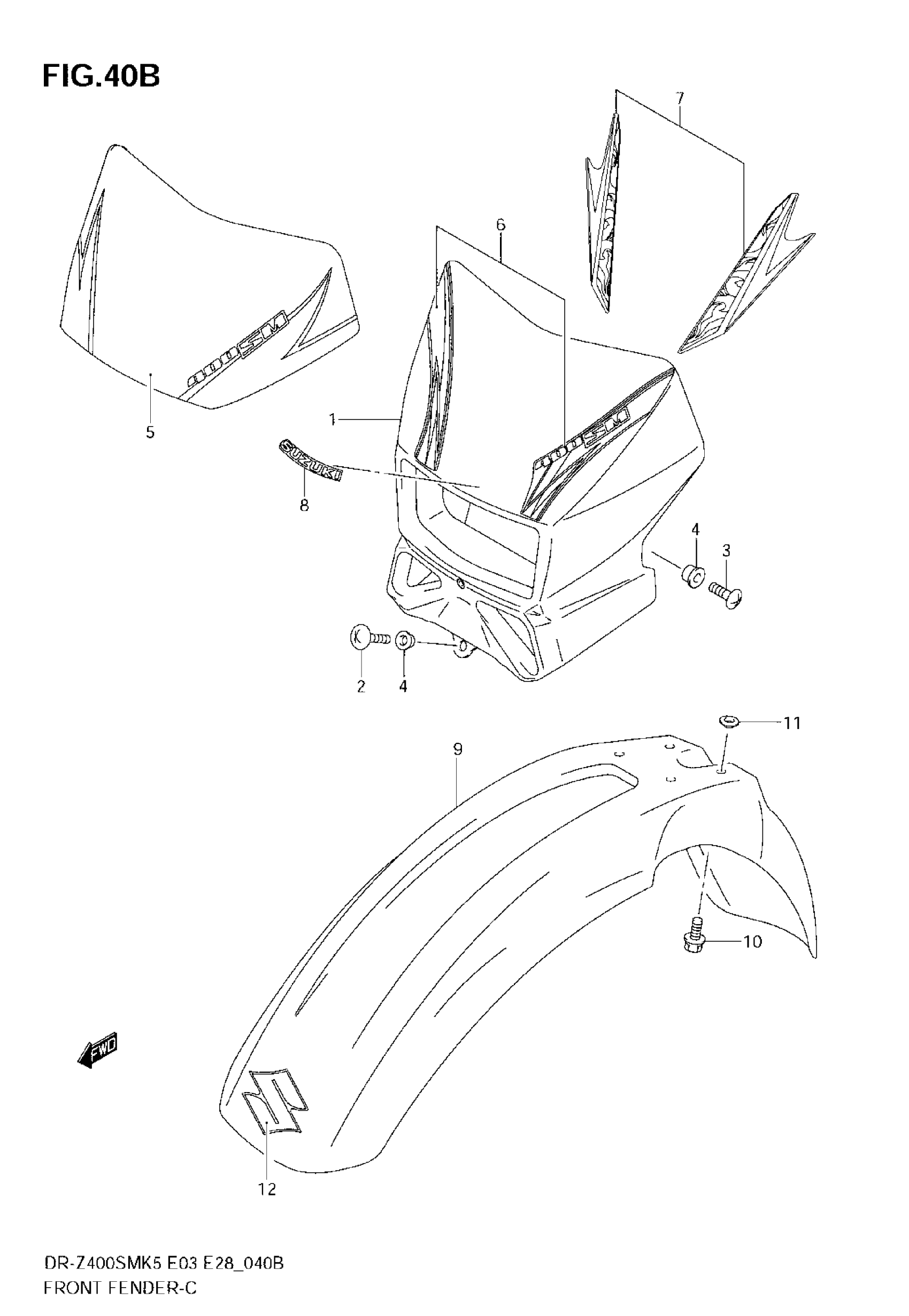

Suzuki DR-Z400SM (2008) FRONT FENDER (MODEL K7/K8) Diagram

#

Description
Price

1

COVER, HEADLAMP (YELLOW) | MODEL K7 FOR YU1

51811-29F50-YU1

$116.87

1

COVER, HEADLAMP (BLACK) | MODEL K7/K8 FOR 019

51811-29F50-019

$96.47

1

COVER, HEADLAMP (BLUE) | MODEL K7 FOR N9J

51811-29F50-YLW

$121.43

1

COVER HEADLAMP (WHITE) | MODEL K8 FOR 30H

51811-29F50-30H

$116.87

2

SCREW, LOWER

02142-0512B

$2.05

3

SCREW, SIDE

02142-0612B

$2.05

4

WASHER

09169-06033

$1.50

5

TAPE SET, HOUSING | MODEL K7 FOR YU1

68725-29F60-DVP

Unavailable

6

TAPE SET, HOUSING | MODEL K7 FOR 019

68720-29F40-DWC

Unavailable

6

TAPE SET, HOUSING | MODEL K7 FOR N9J

68720-29F40-DWD

Unavailable

7

TAPE SET | MODEL K8 FOR 019

68720-29FC0-FCM

Unavailable

7

TAPE SET,HEADLA | MODEL K8 FOR 30H This part replaces 68720-29FB0-FCR.

68720-29FB1-FCR

$42.58

8

EMBLEM,"SUZUKI" | MODEL K8 This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$11.35

9

FENDER, FRONT (YELLOW) | MODEL K7 FOR YU1

53111-29FA0-YU1

Unavailable

9

FENDER, FRONT (BLACK) | MODEL K7/K8 FOR 019

53111-29FA0-019

$173.50

9

FENDER FRONT (BLUE) | MODEL K7 FOR N9J

53111-29FA0-YLW

$133.37

9

FENDER FRONT (WHITE) | MODEL K8 FOR 30H

53111-29FA0-30H

$172.63

10

BOLT

09116-06170

$2.50

11

WASHER

09169-06073

$3.42

12

EMBLEM,S(SILVER | MODEL K7 FOR 019 MODEL K8 This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$11.60

12

EMLBEM "S" | MODEL K7 FOR YU1 This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$15.95
