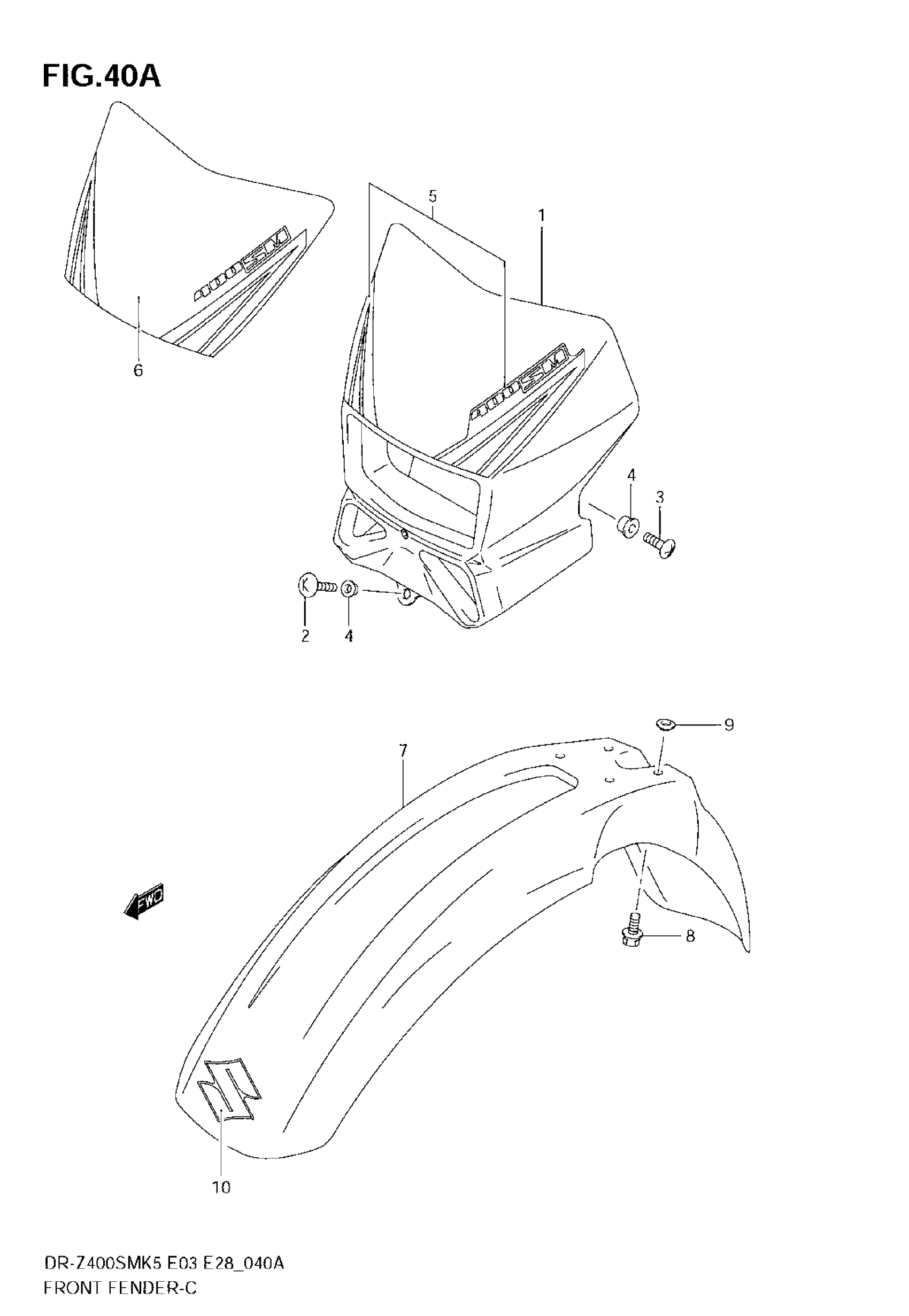

Suzuki DR-Z400SM (2008) FRONT FENDER (MODEL K6) Diagram

#

Description

Price

1

COVER, HEAD LAMP (BLACK) This part replaces 51811-29F10-019.

51811-29F50-019

$96.47

1

COVER, HEADLAMP (YELLOW) This part replaces 51811-29F10-YU1.

51811-29F50-YU1

$116.87

2

SCREW, LOWER

02142-0512B

$2.05

3

SCREW, SIDE

02142-0612B

$2.05

4

WASHER

09169-06033

$1.50

5

TAPE SET, HOUSING | FOR 019

68720-29F30-CNS

$38.12

6

TAPE SET, HOUSING | FOR YU1

68725-29F50-CNP

Unavailable

7

FENDER, FRONT (BLACK)

53111-29F00-019

$183.58

7

FENDER, FRONT (YELLOW)

53111-29F00-YU1

Unavailable

8

BOLT

09116-06170

$2.50

9

WASHER

09169-06073

$3.42

10

EMBLEM,S(SILVER | FOR 019 This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$11.60

10

EMLBEM "S" | FOR YU1 This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$15.95
