Description

Price

1

RELAY ASSY STARTING MOTOR This part replaces 31800-29F00.

31800-29F01

$63.15

2

BRACKET, STARTING MOTOR

31811-29F00

$7.12

3

PROTECTOR, STARTING MOTOR

31812-29F00

$5.67

4

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

5

BOLT, RELAY BRACKET

01550-0612B

$2.39

6

RECTIFIER ASSY

32800-29F00

$267.85

7

BOLT, RECTIFIER

02162-0620B

$2.28

8

CDI UNIT

32900-29FD0

$787.82

9

PROTECTOR (170X95X3) | CUT AS REQUIRED (30X50)

33651-37000

$4.48

10

COIL ASSY, IGNITION

33410-09F00

$95.54

11

BOLT

01547-0616B

$2.45

12

CAP ASSY, SPARK PLUG

33510-48B10

$31.77

13

SEAL, SPARK PLUG CAP

33541-23E01

$6.34

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

15

COVER,SPARK PLUG CAP

33543-33E01

$4.54

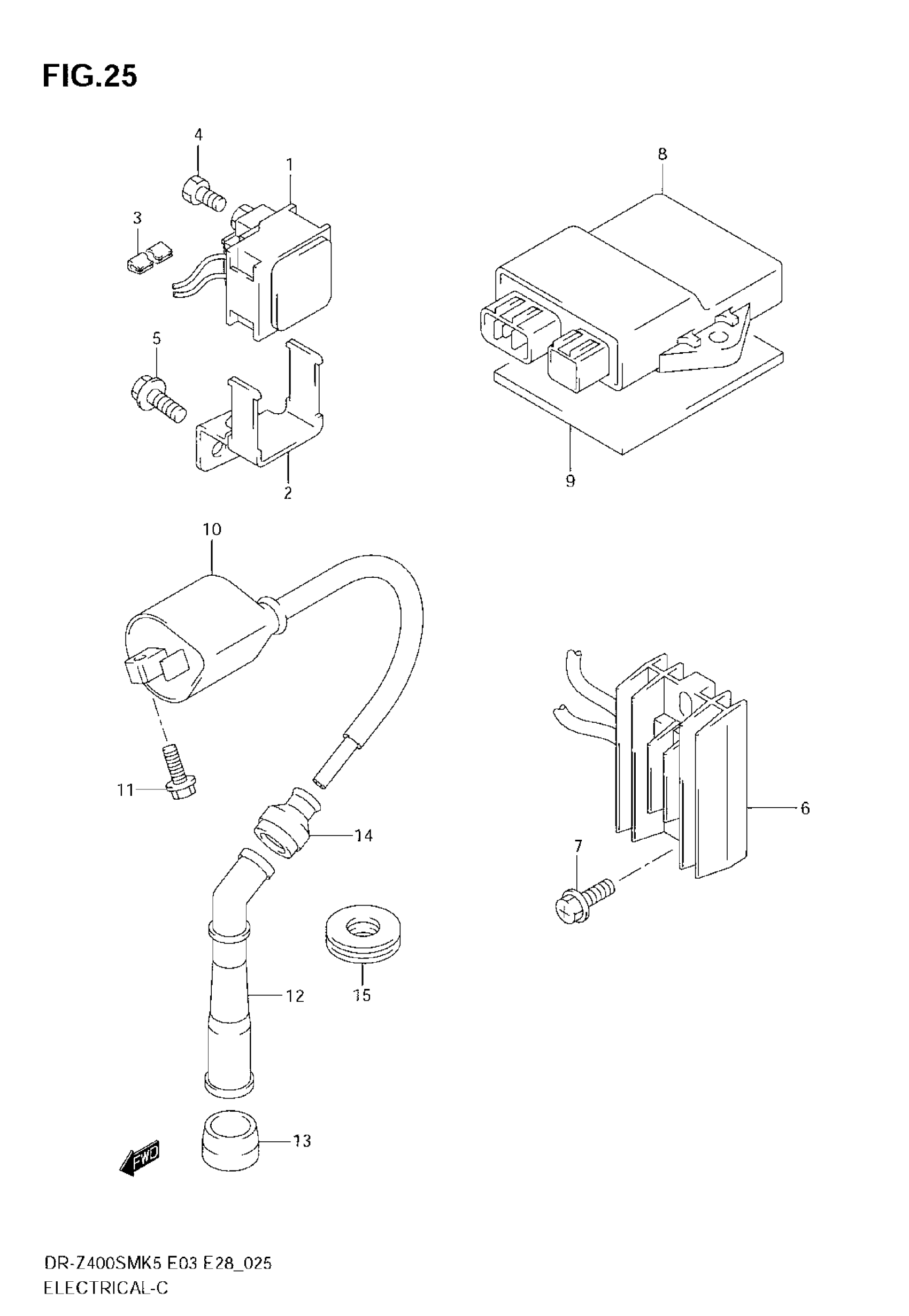

Suzuki DR-Z400SM (2008) ELECTRICAL Diagram
