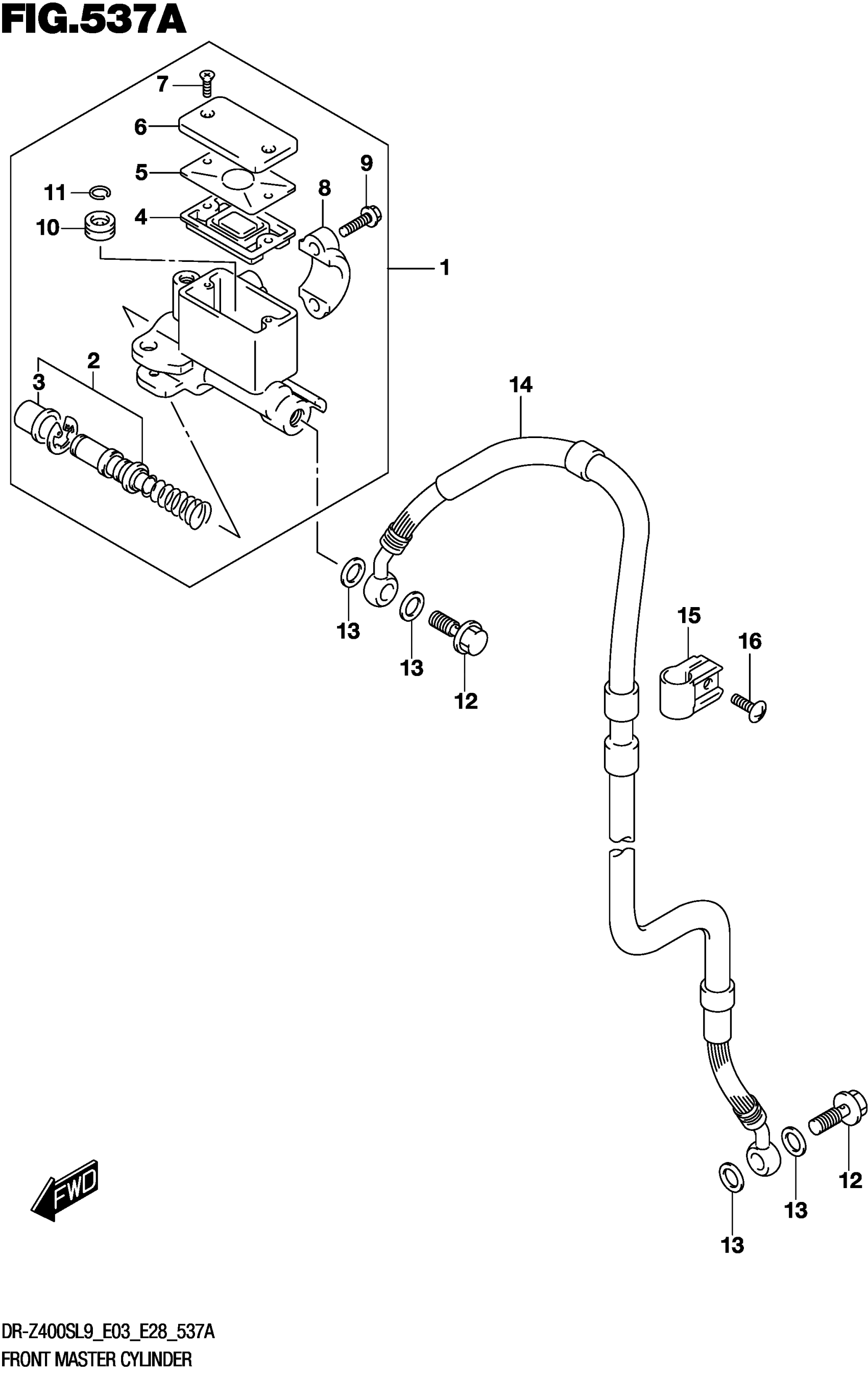

Suzuki DR-Z400SL9 (2019) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY FRONT MASTER

59600-44E50

$255.08

2

.PISTON/CUP SET

69600-38810

$51.24

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-04700

$9.78

5

.PLATE,DIAPHRAGM

59668-14F00

$11.60

6

.PLATE

59669-14F20

$23.25

7

.SCREW

02122-0412A

$1.93

8

.HOLDER

59671-03D00

$26.23

9

.BOLT (6X25)

59675-06F00

$4.73

10

.SEPARATOR

59748-36E00

$9.37

11

.RING

69744-36E00

$4.02

12

UNION (10X1.25X22)

09360-10062

$6.43

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

HOSE This part replaces 59480-29F11.

59480-29F12

$229.58

15

CLAMP BRAKE HOSE

58621-07A20

$4.07

16

SCREW

02142-0625B

$2.10
