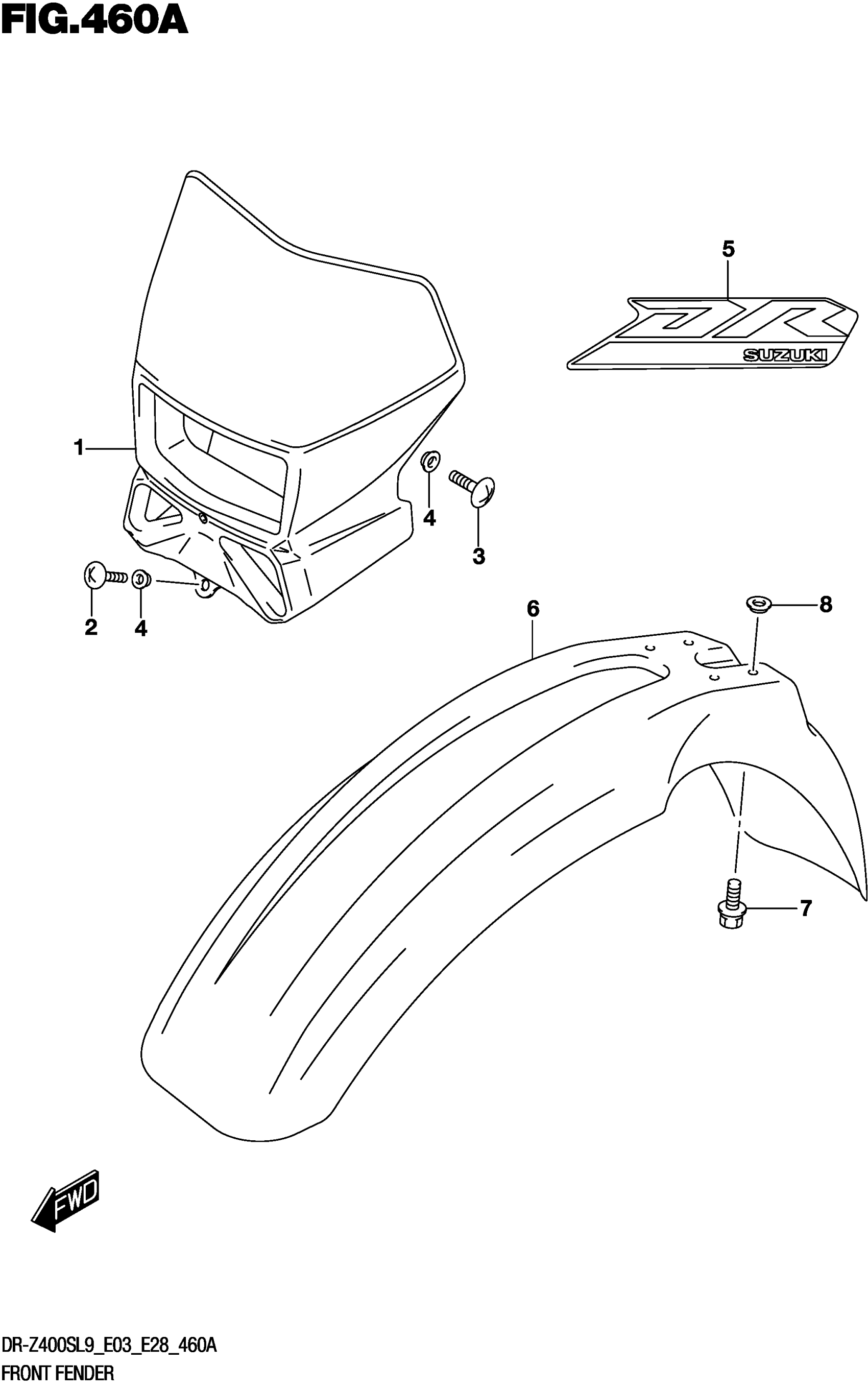

Suzuki DR-Z400SL9 (2019) FRONT FENDER Diagram

#

Description

Price

1

COVER HEADLAMP (WHITE)

51811-29F50-30H

$116.87

2

SCREW

02142-0512B

$2.05

3

SCREW

02142-0612B

$2.05

4

WASHER

09169-06071

$2.50

5

TAPE, HEADLAMP HOUSING

68725-29FC0-BTB

$12.84

6

FENDER

53111-27C22-30H

$161.33

7

BOLT (6X16)

09116-06170

$2.50

8

WASHER (6.1X17.0X4.8)

09169-06073

$3.42
