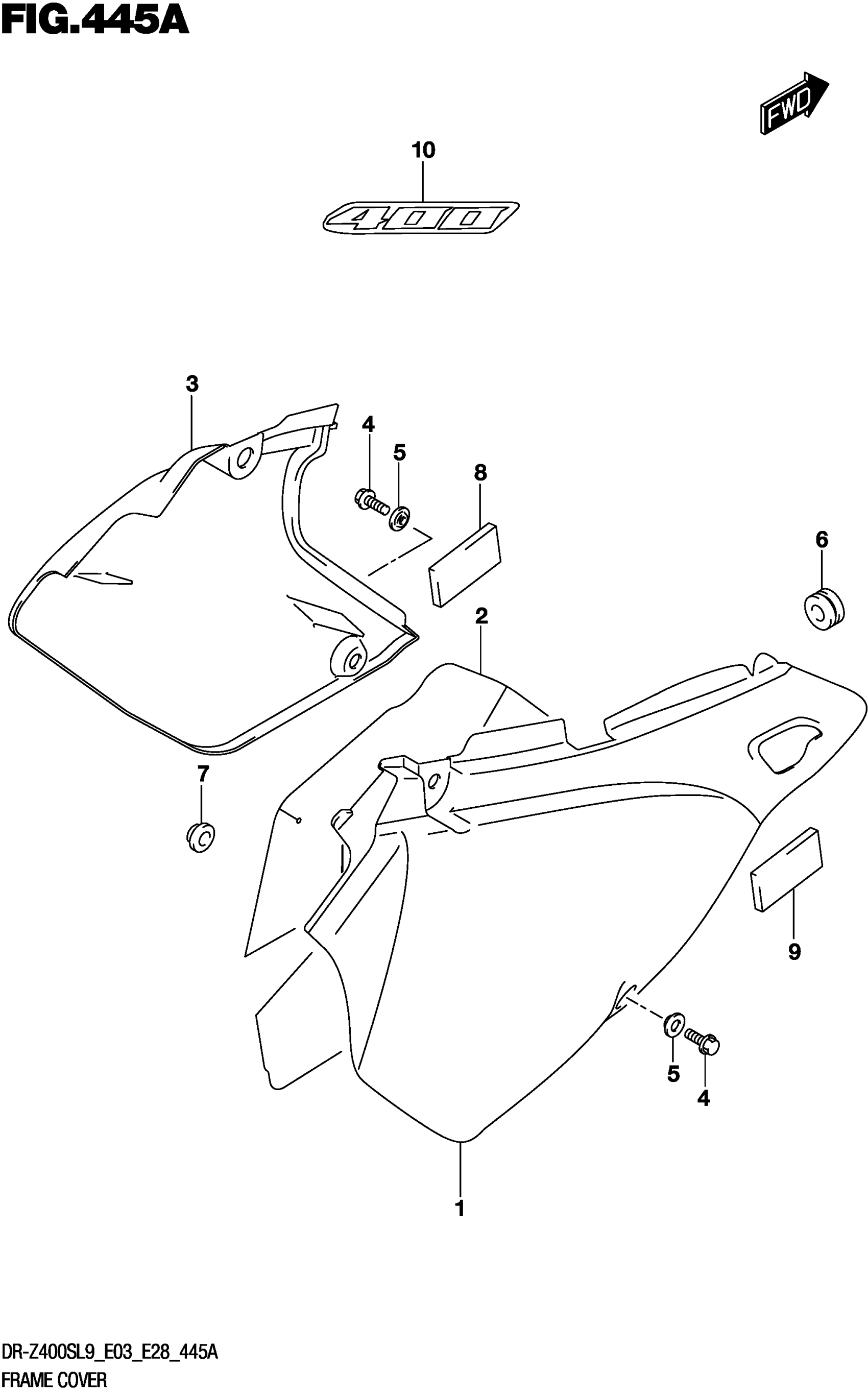

Suzuki DR-Z400SL9 (2019) FRAME COVER (DR-Z400SL9 E03) Diagram

#

Description
Price

1

COVER FRAME R (WHITE)

47111-29FC0-30H

$57.40

2

SHIELD FRAME COVER R

47166-29F00

$82.92

3

COVER FRAME L (WHITE)

47211-29FA0-30H

$57.40

4

BOLT (6X12)

09103-06273

$2.26

5

WASHER This part replaces 09169-06028.

09169-06041

$2.20

6

CUSHION (6X18X6)

09320-06504

$4.96

7

CUSHION

09321-10018

$5.45

8

CUSHION FRAME COVER L

47161-29F00

$6.11

9

CUSHION (18X70X6)

71762-65G10

$8.28

10

EMBLEM, "400" (WHITE/BLACK)

68171-29F20-8YM

$13.15
