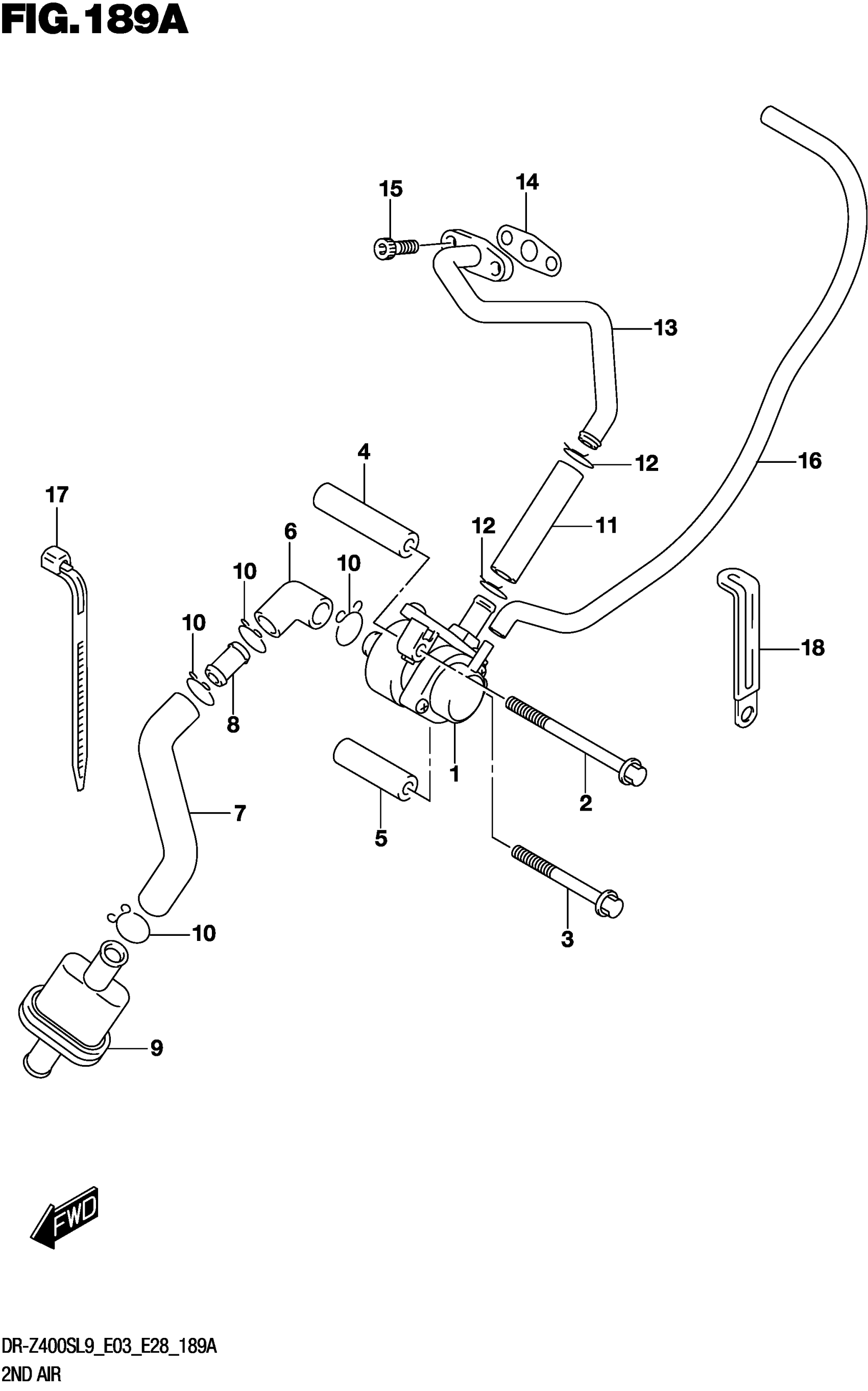

Suzuki DR-Z400SL9 (2019) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR

18450-29F01

Unavailable

2

BOLT | FRONT

01547-0675A

$3.28

3

.BOLT | REAR

01550-0660A

$3.05

4

SPACER 2ND AIR VALVE FR

18611-29F00

$10.40

5

SPACER 2ND AIR VALVE RR

18612-29F00

$9.23

6

HOSE, CLEANER JOINT

18712-29F00

Unavailable

7

HOSE, CLEANER

18711-29F00

Unavailable

8

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$8.28

9

CLEANER 2ND AIR

18700-29F00

$19.48

10

CLIP (ID:15.5)

09401-15101

$2.26

11

HOSE 2ND AIR VALVE

18461-29F00

$20.80

12

CLIP (ID:13.5)

09401-13409

$2.12

13

PIPE 2ND AIR

18410-29F10

$41.88

14

GASKET 2ND AIR PIPE

18441-45C01

$7.05

15

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

16

HOSE (3.5X7.5X600) | L:600->230 This part replaces 09355-35755-600.

09355-35007-600

$6.94

17

CLAMP (L:165)

09407-18402

$2.19

18

CLAMP (L:45)

09404-06429

$1.83
