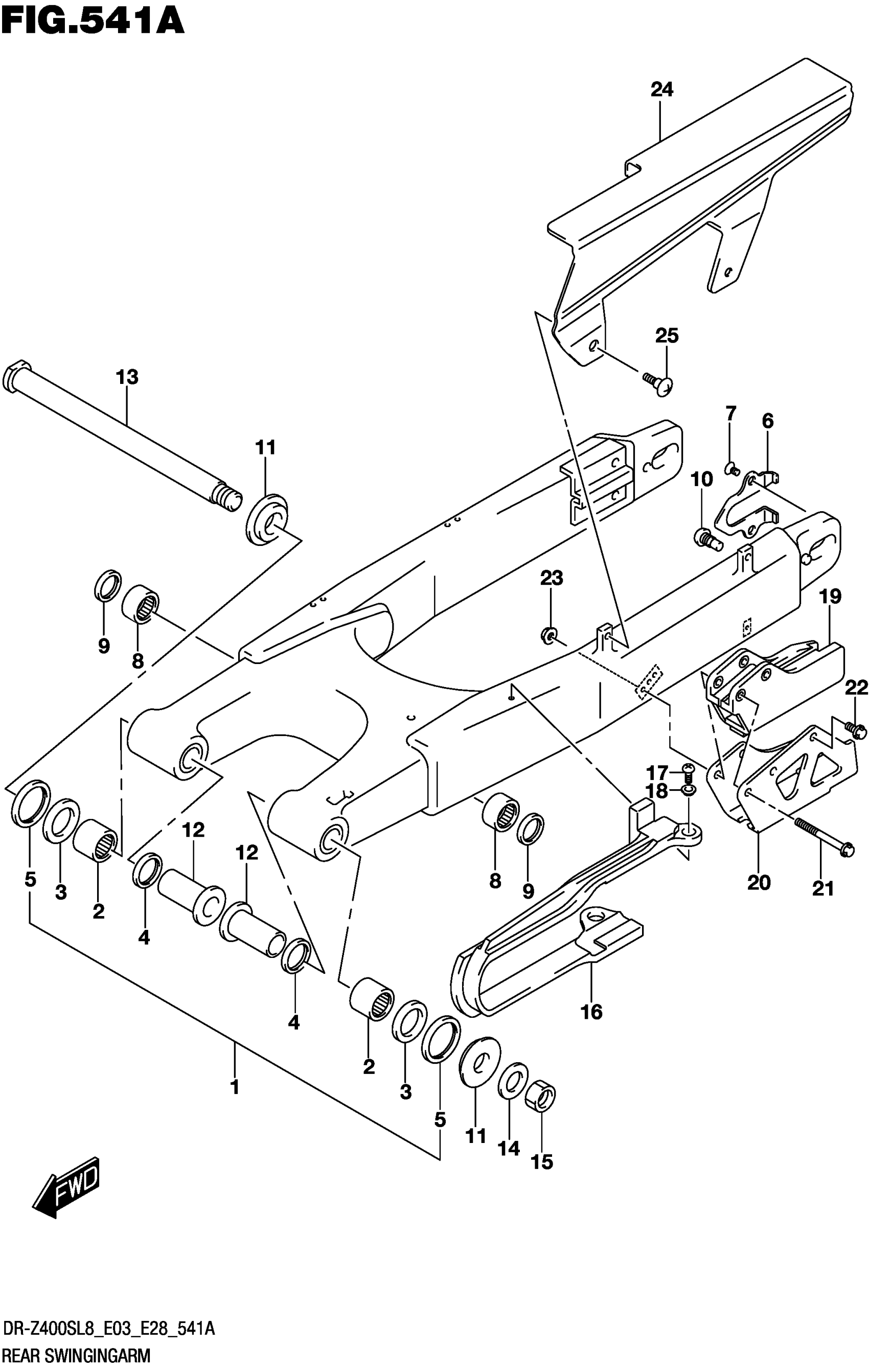

Suzuki DR-Z400SL8 (2018) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR

61000-29F50

$1,925.33

2

.BEARING (22X29X30)

09263-22017

$20.38

3

.BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) | INNER This part replaces 09285-22001.

09285-22006

$3.46

5

.SEAL,RR SWGARM PIVOT OUTER (

61262-36E00

$6.52

5

.SEAL,RR SWGARM PIVOT OUTER (

61262-36E00

$6.52

6

.PLATE RR SWING ARM AXLE

61128-29E00

$24.33

7

.SCREW (5X8)

09126-05009

$2.29

8

.BEARING (20X27X15)

09263-20086

$14.87

9

.SEAL CUSHION LEVER DUST (19X

62624-14500

$5.65

10

.STOPPER CHAIN ADJUSTER (10X1

61431-13E10

$7.88

11

SPACER SWINGINGARM PIVOT OUTE

61250-44E00

$22.08

11

SPACER SWINGINGARM PIVOT OUTE

61250-44E00

$22.08

12

SPACER SWGARM PIVOT INNER

61252-36E00

$60.85

12

SPACER SWGARM PIVOT INNER

61252-36E00

$60.85

13

SHAFT RR SWINGINGARM PIVOT

61211-29F00

$92.57

14

WASHER

08322-0116B

$2.95

15

NUT

09159-16007

$11.37

16

BUFFER CHAIN TOUCH DEFENSE

61273-29F00

$60.54

17

SCREW

02112-0508A

$1.43

18

WASHER

09169-05022

$3.21

19

GUIDE CHAIN

61341-35G00

$43.99

20

PLATE CHAIN GUIDE

61342-37F00

$72.75

21

BOLT

01547-0650A

$2.51

22

BOLT

01547-0612A

$2.01

23

NUT

08319-3106A

$2.01

24

CASE CHAIN

61310-34E00

$106.90

25

SCREW (6X16)

09139-06083

$2.24
