Description

Price

1

HANDLEBAR (SILVER)

56110-29F10-13L

$161.65

2

MIRROR ASSY RR VIEW R

56500-06G30

$156.05

3

MIRROR ASSY RR VIEW L

56600-06G30

$156.05

4

BALANCER SET HANDLEBAR

56200-29832

$29.00

5

.SCREW

02122-0660B

$3.04

6

.WASHER (6.5X16X4)

09160-06131

$2.50

7

.EXPANDER HANDLE BALANCER

56272-10G20

$5.98

8

.NUT,HANDLE BALANCER

56273-10G10

$8.65

9

CABLE ASSY CLUTCH

58200-29F10

$33.22

10

CABLE SET THROTTLE

58301-29F11

$62.89

11

STOPPER CLUTCH CABLE

58634-29F00

$12.57

12

BOLT

01547-0612A

$2.03

13

CLAMP (L:100)

09407-10404

$2.90

14

CLAMP (L:235)

09407-25401

$4.66

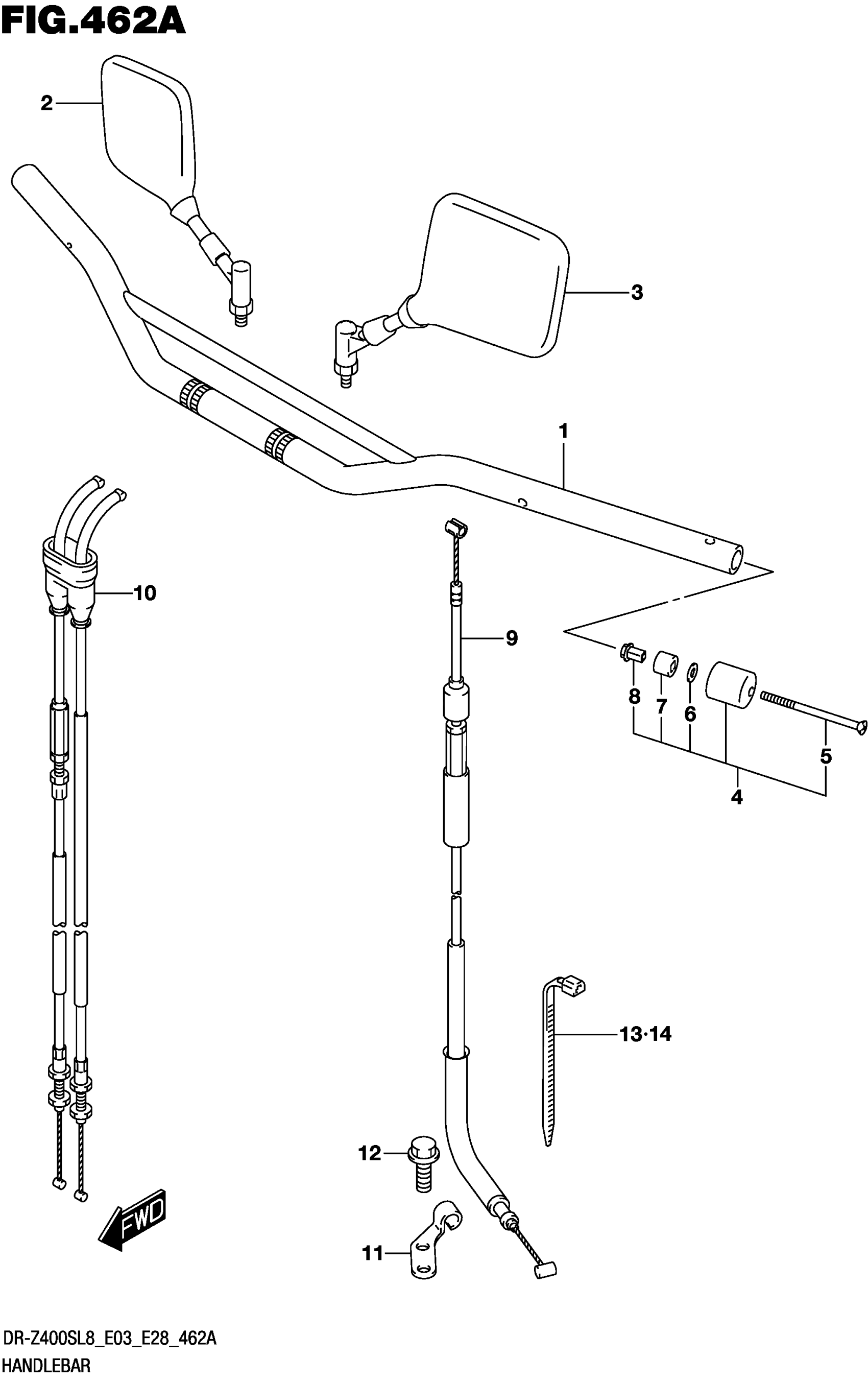

Suzuki DR-Z400SL8 (2018) HANDLEBAR Diagram
