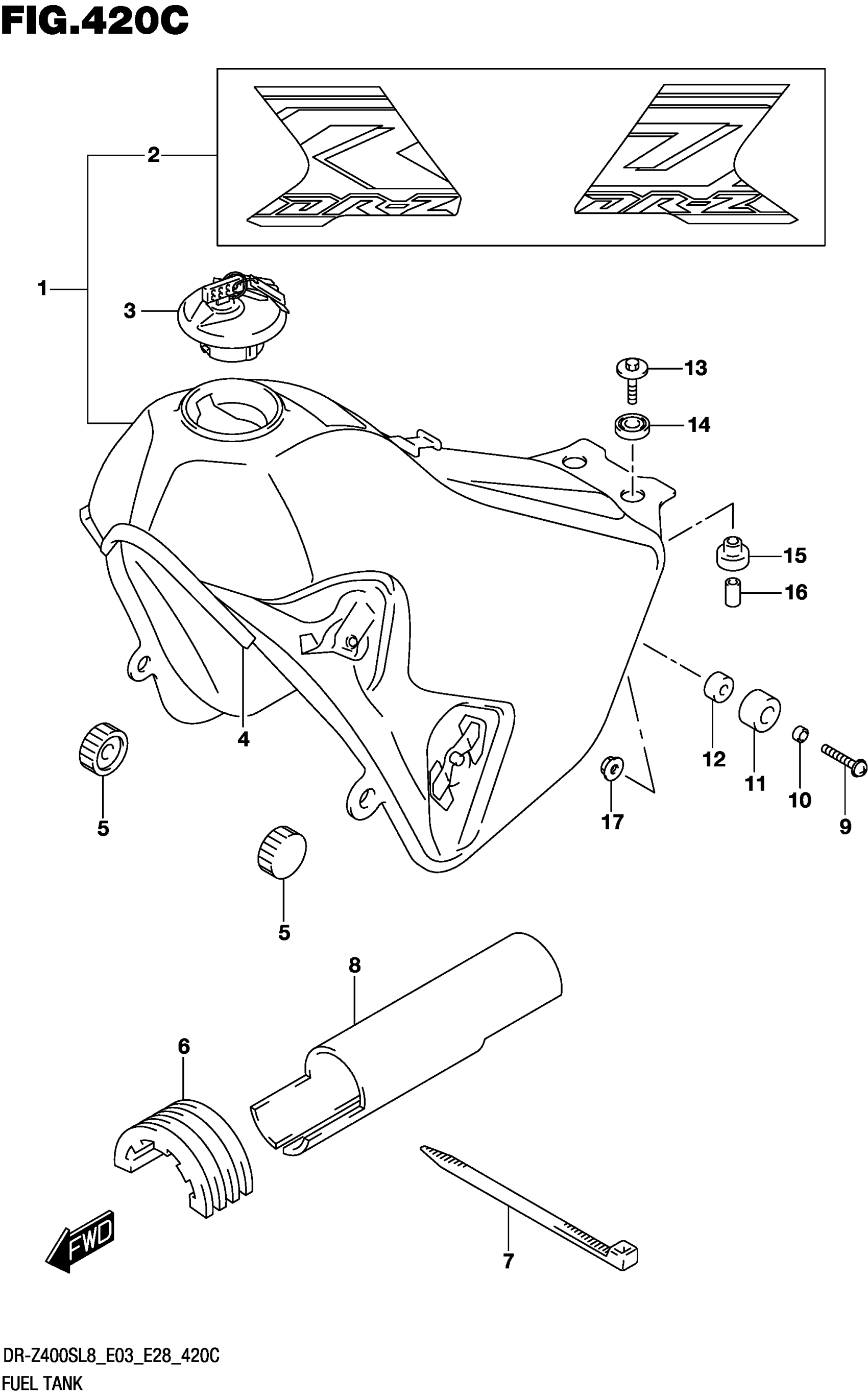

Suzuki DR-Z400SL8 (2018) FUEL TANK (DR-Z400SL8 E33) Diagram

Description

Price

TANK ASSY

49200-29FK1-5UX

$955.82

.TAPE SET

68120-29FA0-BLQ

Unavailable

CAP SET,FUEL TA This part replaces 44200-05820.

44200-05822

$80.85

MOLDING

68241-04X50-300

$6.89

CUSHION

09329-10016

$2.80

CUSHION FUEL TANK

44541-29F00

$39.00

CLAMP (L:300)

09407-30402

$3.76

SHIELD FUEL TANK

44194-29F00

Unavailable

SCREW

02112-1630B

$3.37

SPACER (6.5X20X9)

09180-06215

$8.63

CUSHION

45149-14D00

$7.48

SPACER (6.5X9X5)

09180-06306

$2.06

BOLT (6X30)

09116-06214

$2.50

CUSHION (14.5X24X8)

09320-14022

$3.28

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

SPACER (6.5X9X18)

09180-06271

$2.17

NUT

08319-3106B

$2.47
