2018 Suzuki DR-Z400SL8 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2018 Suzuki DR-Z400SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

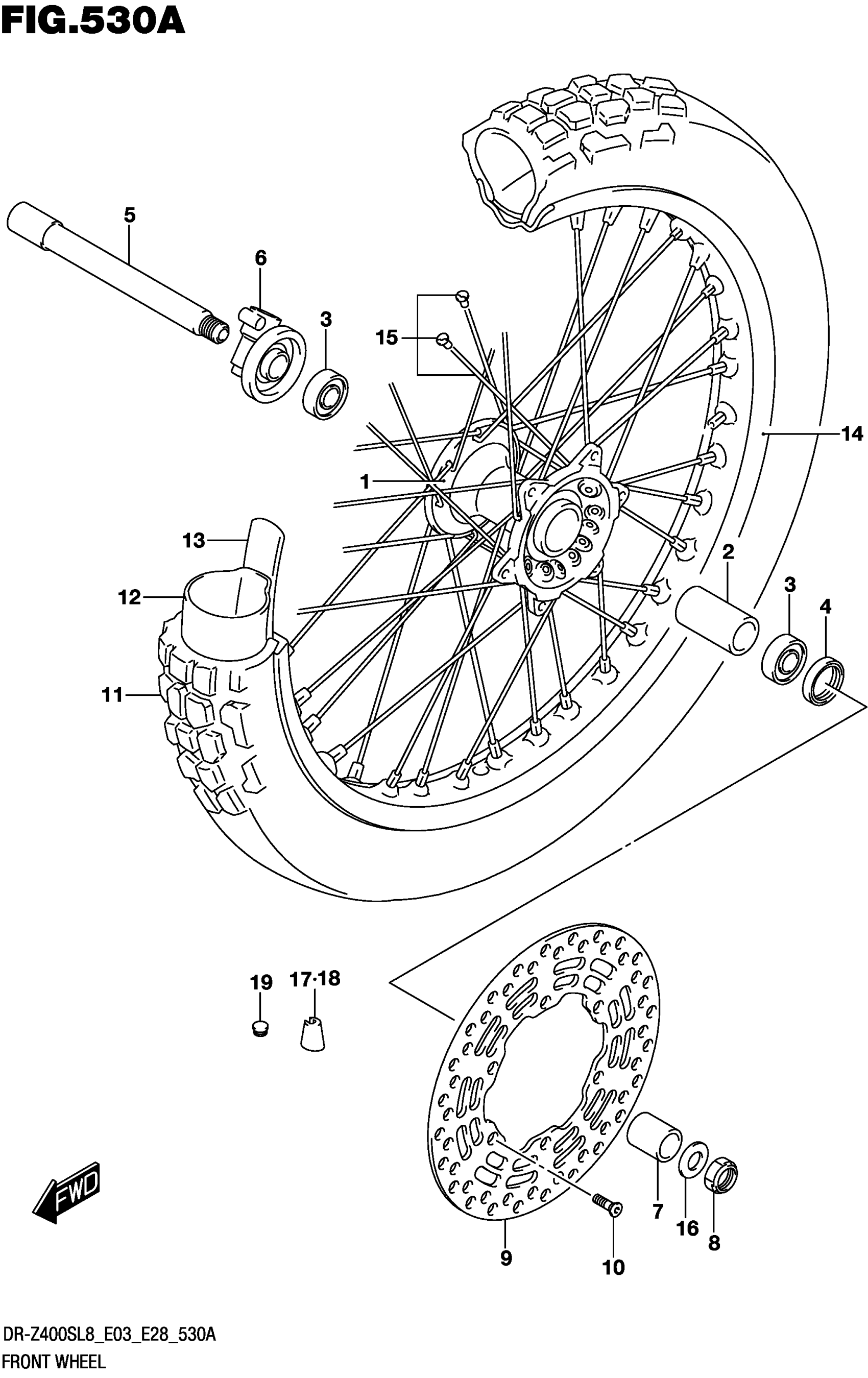

2018 Suzuki DR-Z400SL8 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB FRONT WHEEL

54111-29F10

1

$355.08

In stock

2

1

$29.07

In stock

2

1

$29.07

In stock

3

BEARING

09262-20174

2

$59.38

In stock

4

SEAL OIL (25X37X6)

09283-25083

1

$8.27

In stock

5

AXLE FR

54711-29F10

1

$118.47

In stock

7

1

$17.78

In stock

8

NUT

09159-18018

1

$21.71

In stock

9

DISC FR BRAKE L

59221-13E00

1

$325.48

In stock

10

SCREW (6X18)

09120-06014

6
Out of stock

11

1

$251.55

In stock

12

TUBE ASSY,WHEEL INNER

55200-32E01

1

$66.32

In stock

13

1

$7.48

In stock

14

RIM

55311-29F00

1
Out of stock

15

SPOKE SET FRONT WHEEL

55320-29F00

1

$104.63

In stock

16

WASHER (18X26X2.8)

09160-18034

1

$3.22

In stock

17

BALANCER,WHEEL (20G)

55412-41F00

1
Out of stock

18

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock

19

CAP (OD:12)

09250-08013

1

$2.92

In stock
