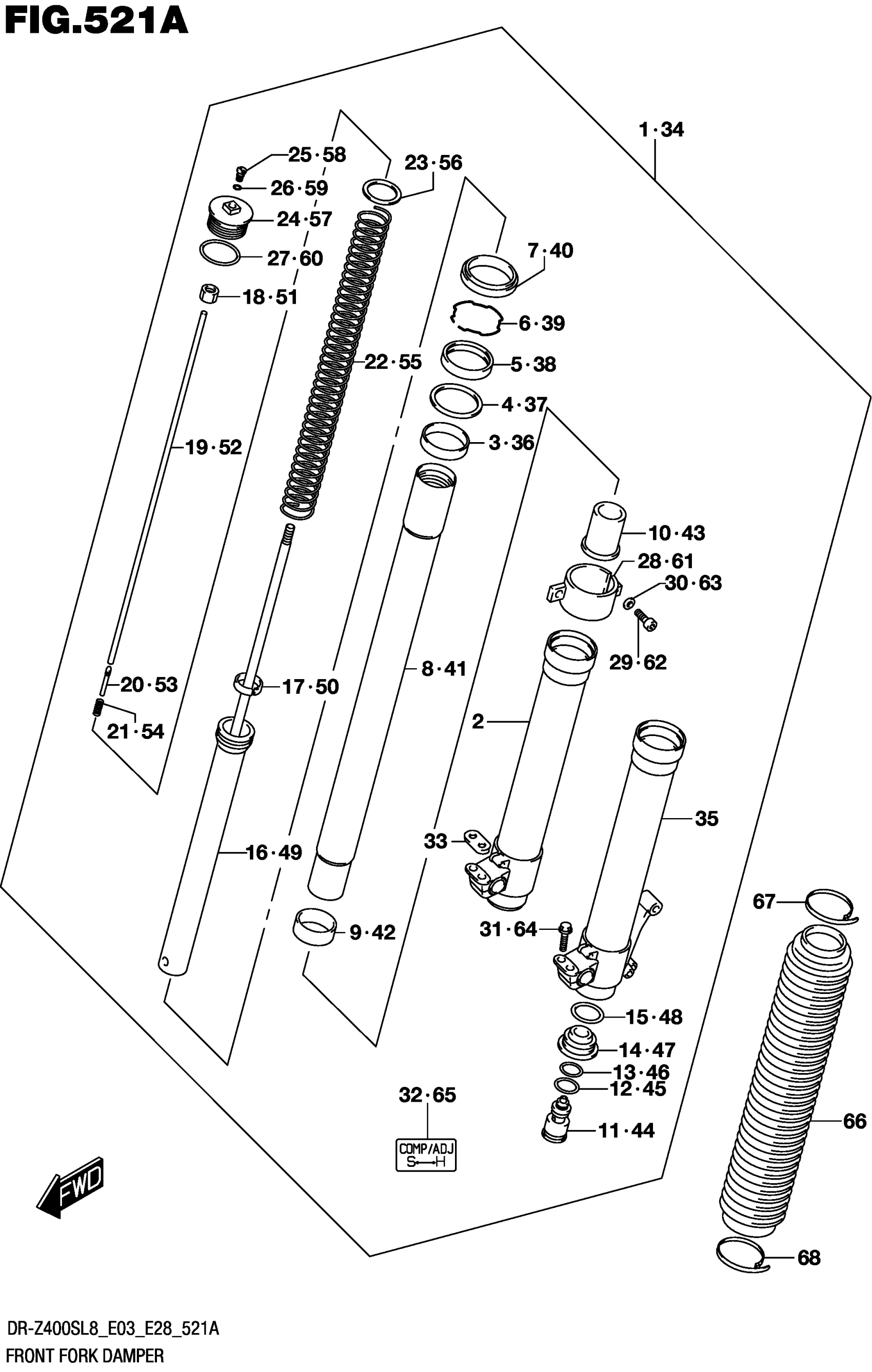

Suzuki DR-Z400SL8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY FR FORK RH

51103-29F60

Unavailable

2

.TUBE OUTER RH

51130-29F60

$1,126.43

3

.BUSH GUIDE

51167-36E80

$27.63

4

..SPACER,SEAL

51158-36E00

$9.37

5

..SEAL,OIL

51153-36E00

$37.22

6

..RING,STOPPER

51156-36E00

$8.43

7

.SEAL DUST

51173-36E00

$38.65

8

.TUBE INNER

51110-29F00

$716.64

9

.BUSH SLIDE

51121-36E40

$38.63

10

.PIECE OIL LOCK

51195-29F00

Unavailable

11

.BOLT CTR

51170-29F00

$313.78

12

..O RING

51175-29F00

$5.83

13

..O RING

51174-29F00

$5.83

14

.PLATE END

51205-29F00

Unavailable

15

.O RING

51117-27C40

$6.22

16

.ROD FR DAMPER

51190-29F00

Unavailable

17

..BUSH SLIDE

51122-29F00

$19.25

18

..NUT

51827-33E00

$17.28

19

..ROD PUSH

51191-29F00

Unavailable

20

..NEEDLE

51192-05D80

$21.50

21

..SPRING PUSH ROD

51193-28E00

$6.30

22

.SPRING FR (K=8.63N/0.88KG)

51171-29F60

Unavailable

23

.JOINT SPRING

51192-36E00

Unavailable

24

.BOLT FORK

51351-29F00

$134.60

25

..BOLT PLUG

51357-28E30

$14.37

26

...O-RING

51358-28E30

$4.28

27

.O RING

51117-36E00

$6.93

28

.HOLDER BOOT

51203-29F00

$48.23

29

.BOLT

07130-05207

$3.03

30

.WASHER (5.5X10X1)

09160-05044

$2.02

31

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

32

.LABEL

51149-29E40

$6.23

33

.COVER AXLE HOLDER

51516-29F00

$8.12

34

DAMPER ASSY FR FORK LH

51104-29F60

$2,757.70

35

.TUBE OUTER LH

51140-29F60

$1,126.43

36

.BUSH GUIDE

51167-36E80

$27.63

37

..SPACER,SEAL

51158-36E00

$9.37

38

..SEAL,OIL

51153-36E00

$37.22

39

..RING,STOPPER

51156-36E00

$8.43

40

.SEAL DUST

51173-36E00

$38.65

41

.TUBE INNER

51110-29F00

$716.64

42

.BUSH SLIDE

51121-36E40

$38.63

43

.PIECE OIL LOCK

51195-29F00

Unavailable

44

.BOLT CTR

51170-29F00

$313.78

45

..O RING

51175-29F00

$5.83

46

..O RING

51174-29F00

$5.83

47

.PLATE END

51205-29F00

Unavailable

48

.O RING

51117-27C40

$6.22

49

.ROD FR DAMPER

51190-29F00

Unavailable

50

..BUSH SLIDE

51122-29F00

$19.25

51

..NUT

51827-33E00

$17.28

52

..ROD PUSH

51191-29F00

Unavailable

53

..NEEDLE

51192-05D80

$21.50

54

..SPRING PUSH ROD

51193-28E00

$6.30

55

.SPRING FR (K=8.63N/0.88KG)

51171-29F60

Unavailable

56

.JOINT SPRING

51192-36E00

Unavailable

57

.BOLT FORK

51351-29F00

$134.60

58

..BOLT PLUG

51357-28E30

$14.37

59

...O-RING

51358-28E30

$4.28

60

.O RING

51117-36E00

$6.93

61

.HOLDER BOOT

51203-29F00

$48.23

62

.BOLT

07130-05207

$3.03

63

.WASHER (5.5X10X1)

09160-05044

$2.02

64

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

65

.LABEL

51149-29E40

$6.23

66

BOOT (BLACK) This part replaces 51571-29F00-019.

51571-29F01-019

$83.28

67

BAND BOOT UPPER

51575-29F00

$21.83

68

BAND BOOT LOWER

51576-29F00

$19.87
