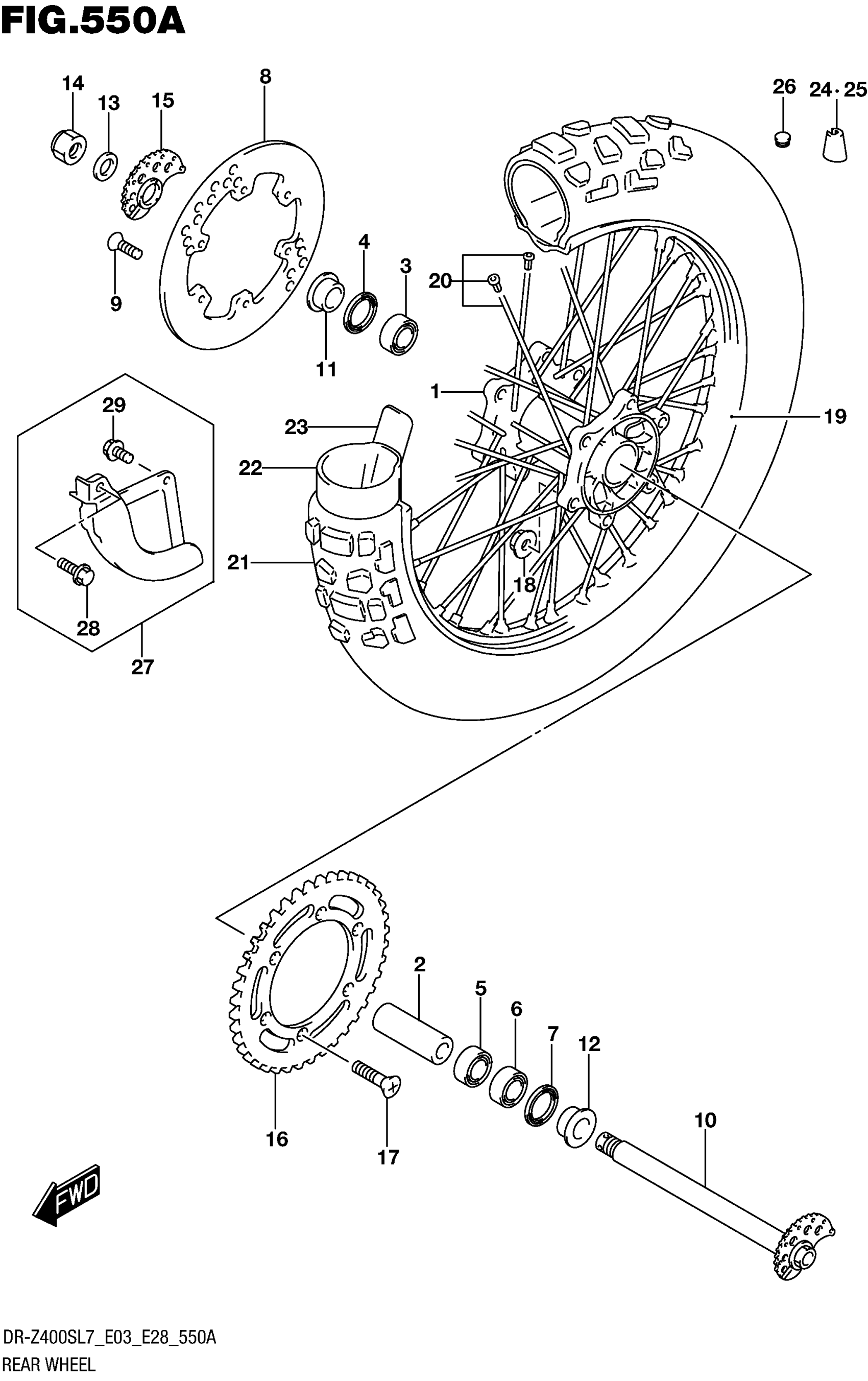

Suzuki DR-Z400SL7 (2017) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-29F10

$472.30

2

SPACER, REAR HUB BEARING

64731-29F00

$31.80

3

BEARING

08133-60047

$25.82

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.89

5

BEARING

08133-60047

$25.82

6

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

7

OIL SEAL (29X47X6)

09283-29006

$11.53

8

DISC, REAR BRAKE

69211-43D00

$299.30

9

SCREW (6X18)

09120-06014

$2.45

10

AXLE, REAR

64710-29F00

$146.12

11

SPACER, RH

64751-28E20

$27.30

12

SPACER, LH

64751-28E20

$27.30

13

WASHER (19X32X3.2)

09160-19022

$4.90

14

NUT

08319-2118A

$4.90

15

ADJUSTER, CHAIN RH

61410-29F00

$26.57

16

SPROCKET, REAR (NT:44)

64511-14D80

$66.92

17

BOLT (8X30.5)

09120-08010

$2.36

18

NUT

08319-3108A

$2.32

19

RIM, REAR WHEEL (2.15X18)

65311-29F00

Unavailable

20

SPOKE SET, REAR WHEEL

65320-29F00

$109.88

21

TIRE RR | TRAIL WING-42 This part replaces 65110-29F10.

65110-29F11

$289.58

21

TIRE RR | BRIDGESTONE This part replaces 65110-29F10.

65110-29F11

$289.58

22

TUBE ASSY, WHEEL INNER

65200-29E01

$75.82

23

PROTECTOR, INNER TUBE

65261-14E01

$8.18

24

BALANCER, WHEEL NO.1 (20G)

55412-41F00

$8.12

25

BALANCER WHEEL (30G)

55413-41F00

$7.50

26

CAP (OD:12)

09250-08013

$2.68

27

COVER, REAR DISC

69200-28C00

$28.44

28

BOLT

01550-0620B

$2.39

29

BOLT

01550-0612B

$2.39
