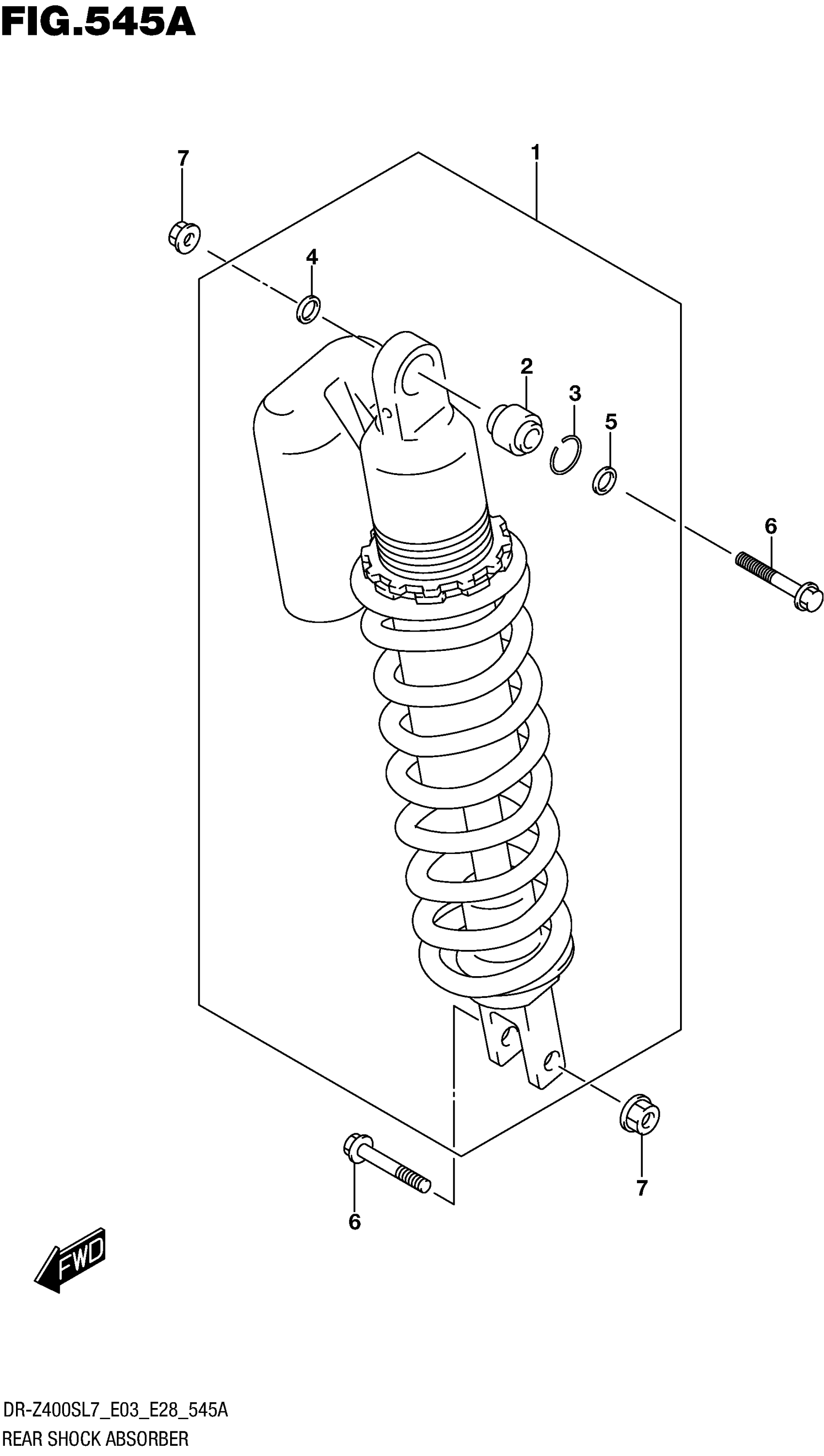

Suzuki DR-Z400SL7 (2017) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

ABSORBER ASSY REAR SHOCK (BLA This part replaces 62100-29FU0-019.

62100-29FU1-019

$1,631.40

1

ABSORBER ASSY REAR SHOCK (BLA This part replaces 62100-29FU0-019.

62100-29FU1-019

$1,631.40

2

.BEARING REAR SHOCK ABSORBER

62175-36E00

$102.82

3

.RING, STOPPER

62277-27C40

$3.95

4

.SEAL, DUST RH

62226-36E00

$10.12

5

.SEAL, DUST LH

62226-36E10

$10.32

6

BOLT (10X47.5)

09103-10149

$3.70

7

NUT

09159-10115

$3.55
