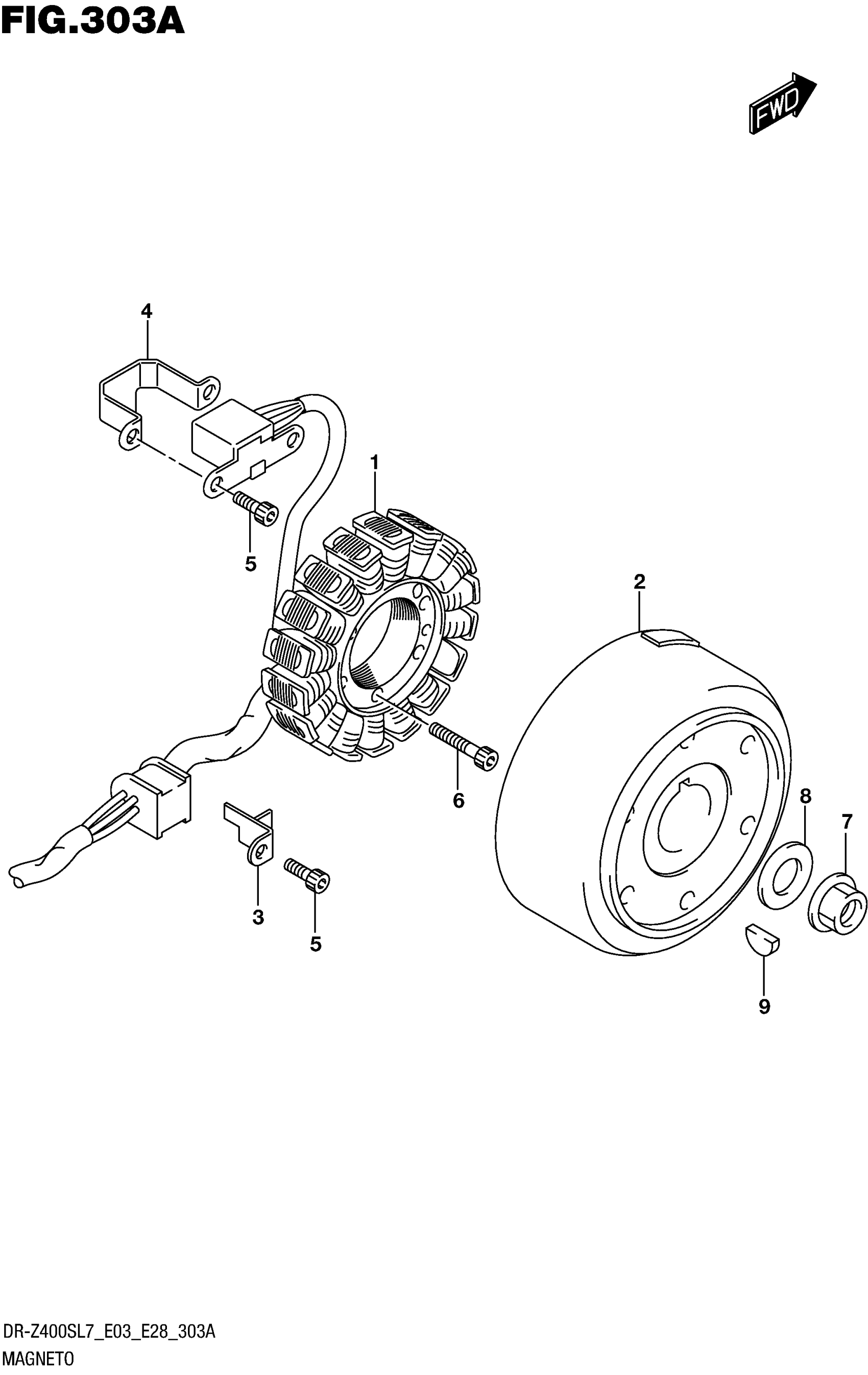

Suzuki DR-Z400SL7 (2017) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY, MAGNETO

32101-29F00

$609.67

2

ROTOR ASSY, MAGNETO

32102-29F00

$622.50

3

CLAMP, MAGNETO LEAD NO.1

32371-13E00

$3.56

4

CLAMP, MAGNETO PULSER LEAD

32371-14D01

$5.45

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0525A

$2.28

7

NUT

09159-12068

$2.42

8

WASHER (12X27X2.0)

09160-12051

$2.42

9

KEY

09420-04008

$3.42
