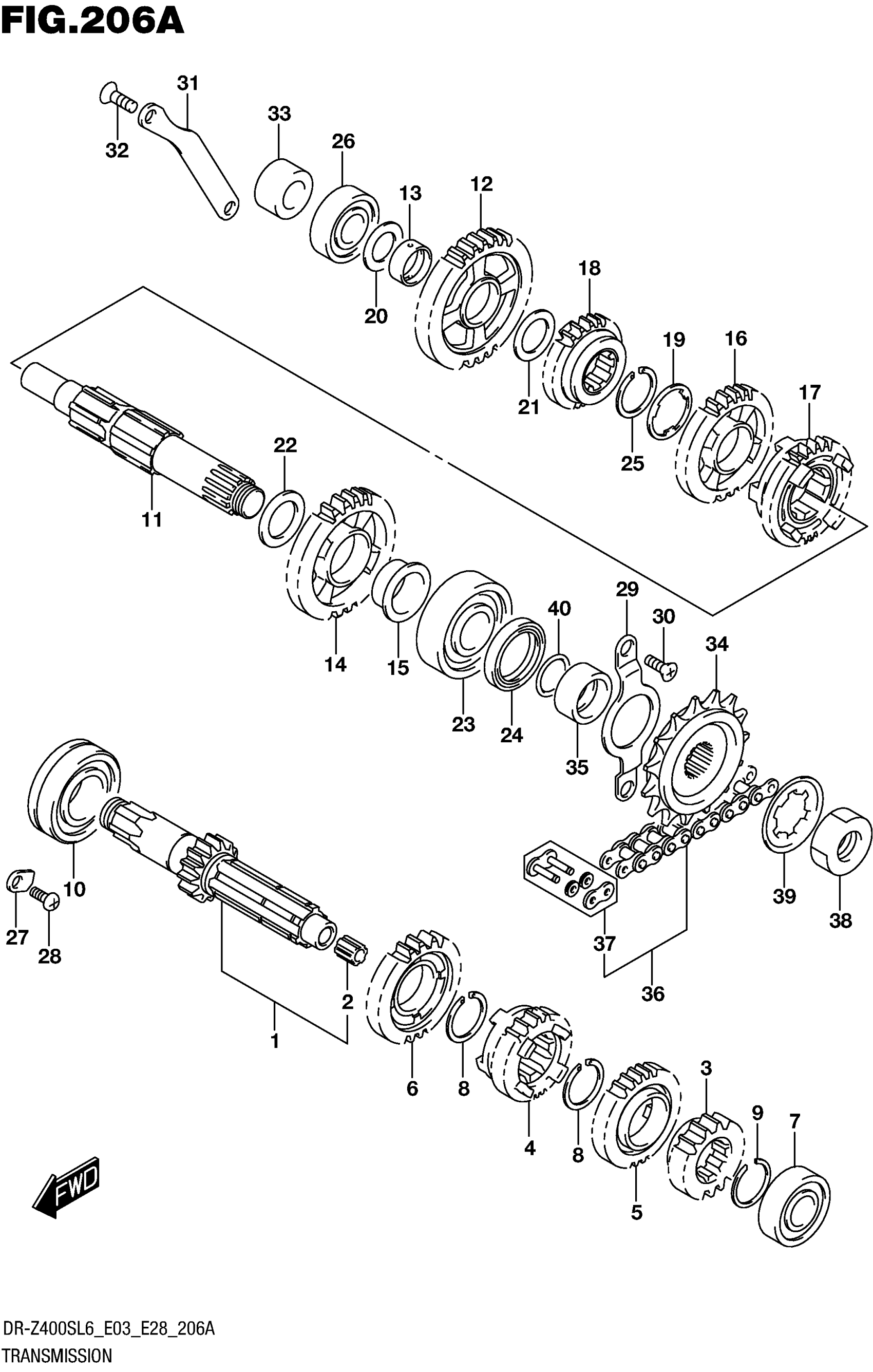

Suzuki DR-Z400SL6 (2016) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-05D20

$268.15

2

.BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:15)

24221-28C20

$117.48

4

GEAR, 3RD DRIVE (NT:16)

24231-05D02

$134.48

5

GEAR, 4TH DRIVE (NT:22)

24241-05D01

$117.48

6

GEAR, 5TH DRIVE (NT:22)

24251-05D00

$117.48

7

BEARING (17X40X12)

09262-17027

$35.28

8

CIRCLIP

09380-25010

$2.91

9

CIRCLIP

09380-25013

$4.17

10

BEARING (25X52X15)

09262-25003

$24.83

11

SHAFT, DRIVE

24130-05D21

$205.00

12

GEAR, 1ST DRIVEN (NT:32)

24311-05D00

$124.28

13

BUSH, 1ST DRIVEN GEAR

24312-29F00

$22.75

14

GEAR, 2ND DRIVEN (NT:26)

24321-28C02

$121.98

15

BUSH, 2ND DRIVEN GEAR

24322-44E10

$36.02

16

GEAR, 3RD DRIVEN (NT:22)

24331-05D01

$126.18

17

GEAR, 4TH DRIVEN (NT:24)

24341-05D01

$137.02

18

GEAR, 5TH DRIVEN (NT:19)

24351-05D20

$124.28

19

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

20

SHIM (17X30X1)

09181-17223

$2.96

21

SHIM (20X30X1)

09181-20195

$2.60

22

SHIM (22X34X1)

09181-22223

$3.12

23

BEARING (22X56X16)

09262-22024

$70.13

24

OIL SEAL (30X40X6)

09283-30053

$9.24

25

CIRCLIP

09380-25010

$2.91

26

BEARING (17X40X12)

09262-17023

$16.75

27

RETAINER, COUNTER SHAFT

24741-21A00

$2.81

28

SCREW (6X12)

09125-06122

$2.44

29

RETAINER, DRIVE SHAFT OIL SEA

24751-29F00

$7.11

30

SCREW (6X14)

09126-06007

$2.03

31

RETAINER, KICK IDLE GEAR

26264-29F00

$13.05

32

SCREW

02122-0616A

$1.49

33

SPACER (17X30.5X16.3)

09180-17055

$10.97

34

SPROCKET,ENGINE This part replaces 27510-29E10.

27510-29E20

$28.87

35

SPACER, ENGINE SPROCKET

27531-29F00

$23.37

36

CHAIN ASSY, DRIVE

27600-29F30-112

$166.28

36

(RK520KZOZ1)

27600-29F30-112

$166.28

37

.JOINT, CHAIN

27620-29F30

$21.55

38

NUT

09140-18006

$4.83

39

LOCK WASHER

09167-22012

$1.54

40

O RING (D:2.5,ID:21)

09280-21008

$1.91
