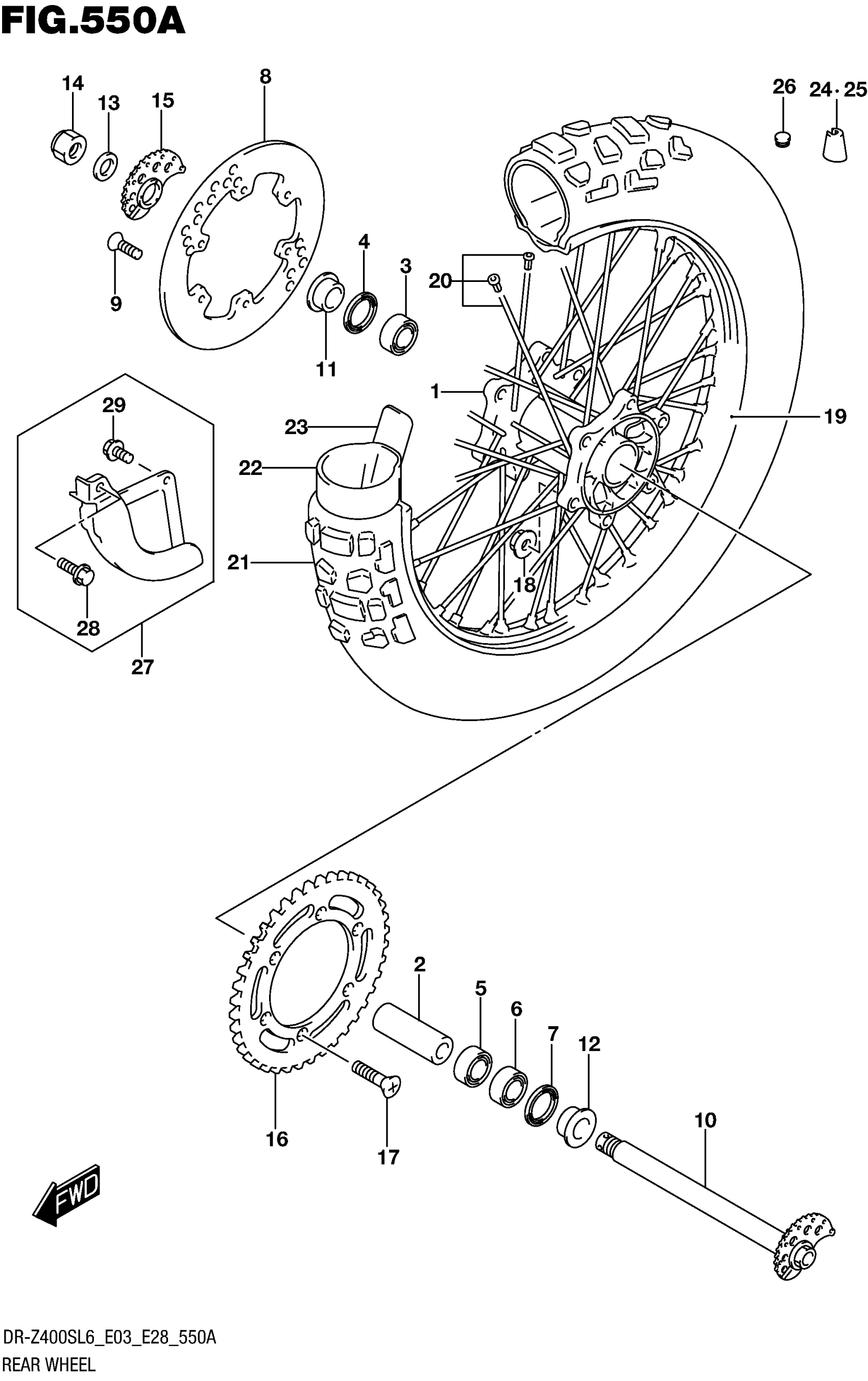

Find the part on the Rear Wheel diagram for your 2016 Suzuki DR-Z400SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR-Z400SL6 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-29F10

1
Out of stock

2

SPACER, REAR HUB BEARING

64731-29F00

1
Out of stock

3

BEARING

08133-60047

1

$25.50

In stock

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

1
Out of stock

5

BEARING

08133-60047

1

$25.50

In stock

6

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

7

OIL SEAL (29X47X6)

09283-29006

1
Out of stock

8

DISC, REAR BRAKE

69211-43D00

1
Out of stock

9

SCREW (6X18)

09120-06014

6

$2.60

In stock

10

AXLE, REAR

64710-29F00

1
Out of stock

11

SPACER, RH

64751-28E20

1
Out of stock

12

SPACER, LH

64751-28E20

1
Out of stock

13

WASHER (19X32X3.2)

09160-19022

1
Out of stock

14

NUT

08319-2118A

1
Out of stock

15

ADJUSTER, CHAIN RH

61410-29F00

1
Out of stock

16

SPROCKET, REAR (NT:44)

64511-14D80

1
Out of stock

17

BOLT (8X30.5)

09120-08010

6
Out of stock

18

NUT

08319-3108A

6
Out of stock

19

RIM, REAR WHEEL (2.15X18)

65311-29F00

1
Out of stock

20

SPOKE SET, REAR WHEEL

65320-29F00

1
Out of stock

21

TIRE RR | TRAIL WING-42 This part replaces 65110-29F10.

65110-29F11

1
Out of stock

21

TIRE RR This part replaces 65110-29F10.

65110-29F11

1
Out of stock

22

TUBE ASSY, WHEEL INNER

65200-29E01

1
Out of stock

23

PROTECTOR, INNER TUBE

65261-14E01

1
Out of stock

24

BALANCER, WHEEL NO.1

55412-41F00

1
Out of stock

25

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock

26

CAP (OD:12)

09250-08013

1
Out of stock

27

COVER, REAR DISC

69200-28C00

1
Out of stock

28

BOLT

01550-0620B

1
Out of stock

29

BOLT

01550-0612B

1
Out of stock
