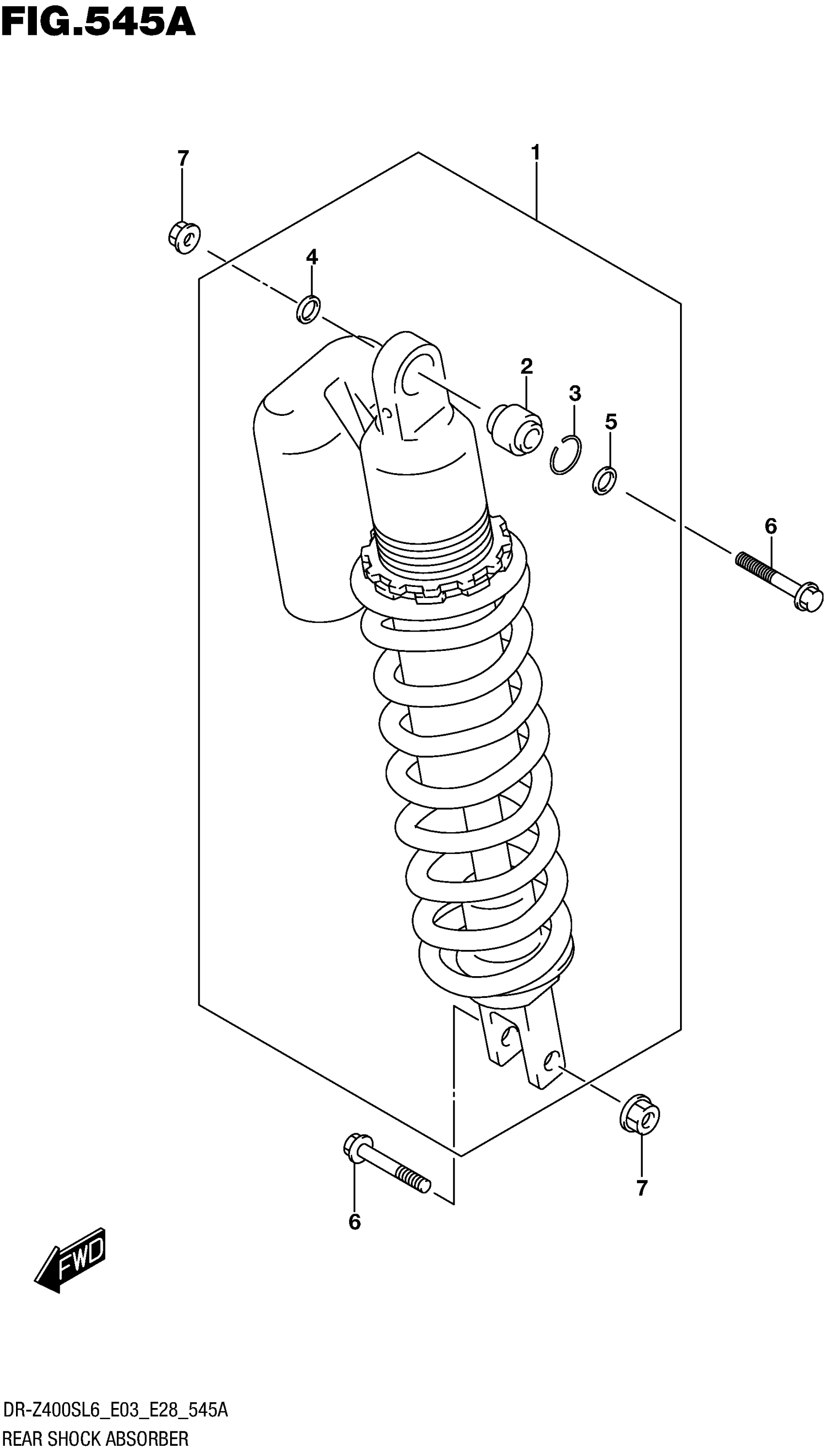

Suzuki DR-Z400SL6 (2016) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

ABSORBER ASSY REAR SHOCK (BLA This part replaces 62100-29FL0-019.

62100-29FU1-019

$1,781.17

1

ABSORBER ASSY REAR SHOCK (BLA This part replaces 62100-29FL0-019.

62100-29FU1-019

$1,781.17

2

.BEARING REAR SHOCK ABSORBER

62175-36E00

$116.03

3

.RING, STOPPER

62277-27C40

$4.47

4

.SEAL, DUST UPPER RH

62226-36E00

$11.42

5

.SEAL, DUST UPPER LH

62226-36E10

$11.63

6

BOLT (10X47.5)

09103-10149

$3.44

7

NUT

09159-10115

$3.31
