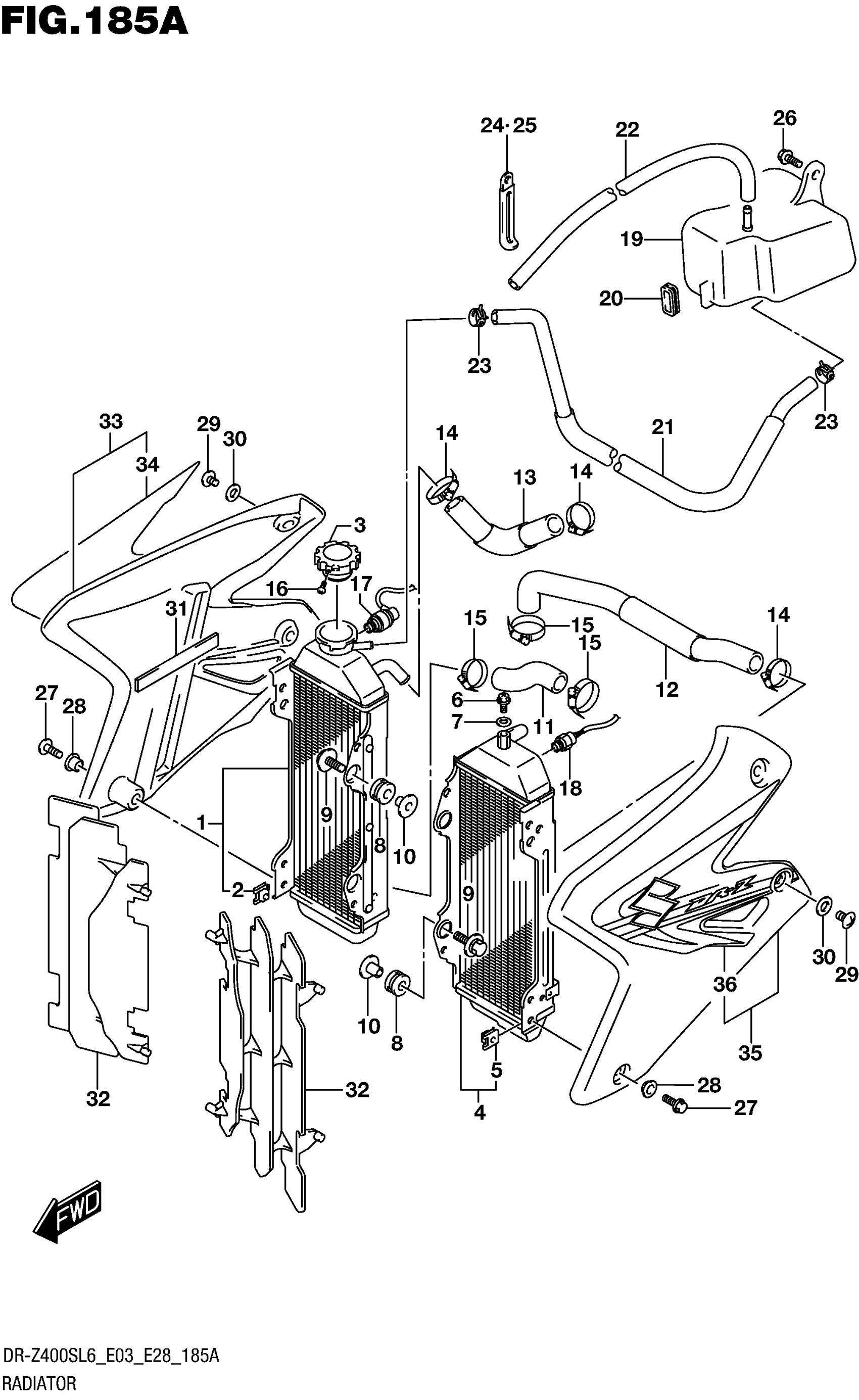

Suzuki DR-Z400SL6 (2016) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER RH

17710-29F40

$589.20

2

.NUT

09148-06015

$3.04

3

CAP, RADIATOR (1.1)

17730-19D11

$42.32

4

RADIATOR, WATER LH

17720-29F40

$612.47

5

.NUT

09148-06015

$3.04

6

BOLT, AIR RELEASE

17568-50F00

$4.76

7

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

8

CUSHION, RADIATOR LWR

17787-19A00

$3.56

9

BOLT (6X25)

09116-06147

$3.20

10

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

11

HOSE, RADIATOR INLET

17851-29F10

$16.25

12

HOSE, RADIATOR OUTLET

17852-29F30

$50.30

13

HOSE, RADIATOR JOINT

17853-29F10

$26.68

14

CLAMP

09402-28513

$6.88

15

CLAMP

09402-32512

$12.85

16

SCREW,RADIATOR CAP

17733-03D10

$2.60

17

SWITCH ASSY, WATER TEMP

34850-29F00

$124.28

18

SWITCH, FAN

17680-24A30

$123.98

19

TANK, RESERVOIR

17911-29F11

$49.89

20

CUSHION, RESERVOIR TANK

17913-29F00

$4.43

21

HOSE, RESERVOIR TANK INLET

17981-29F01

$21.03

22

HOSE (5X9X2000) | L:2000->650

09352-50901-00B

$26.94

23

CLIP

09401-08411

$1.78

24

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

25

CLAMP (L:45)

09404-06429

$1.83

26

BOLT

01550-0612A

$1.97

27

BOLT (6X16)

09103-06274

$2.03

28

WASHER (6.3X16X1)

09169-06053

$1.49

29

BOLT (6X8)

09103-06275

$2.07

30

WASHER (6.5X14X1.6)

09160-06125

$1.91

31

CUSHION, TOOL HOLDER

47451-38A01

$4.43

32

LOUVER, RADIATOR

17831-37E11

$19.07

33

COVER, RADIATOR RH (BLACK)

17760-29FU0-019

$185.13

34

.TAPE, RADIATOR COVER RH

68665-29FU0-A85

$76.00

35

COVER, RADIATOR LH (BLACK)

17770-29FU0-019

Unavailable

36

.TAPE, RADIATOR COVER LH

68675-29FU0-A85

$76.00
