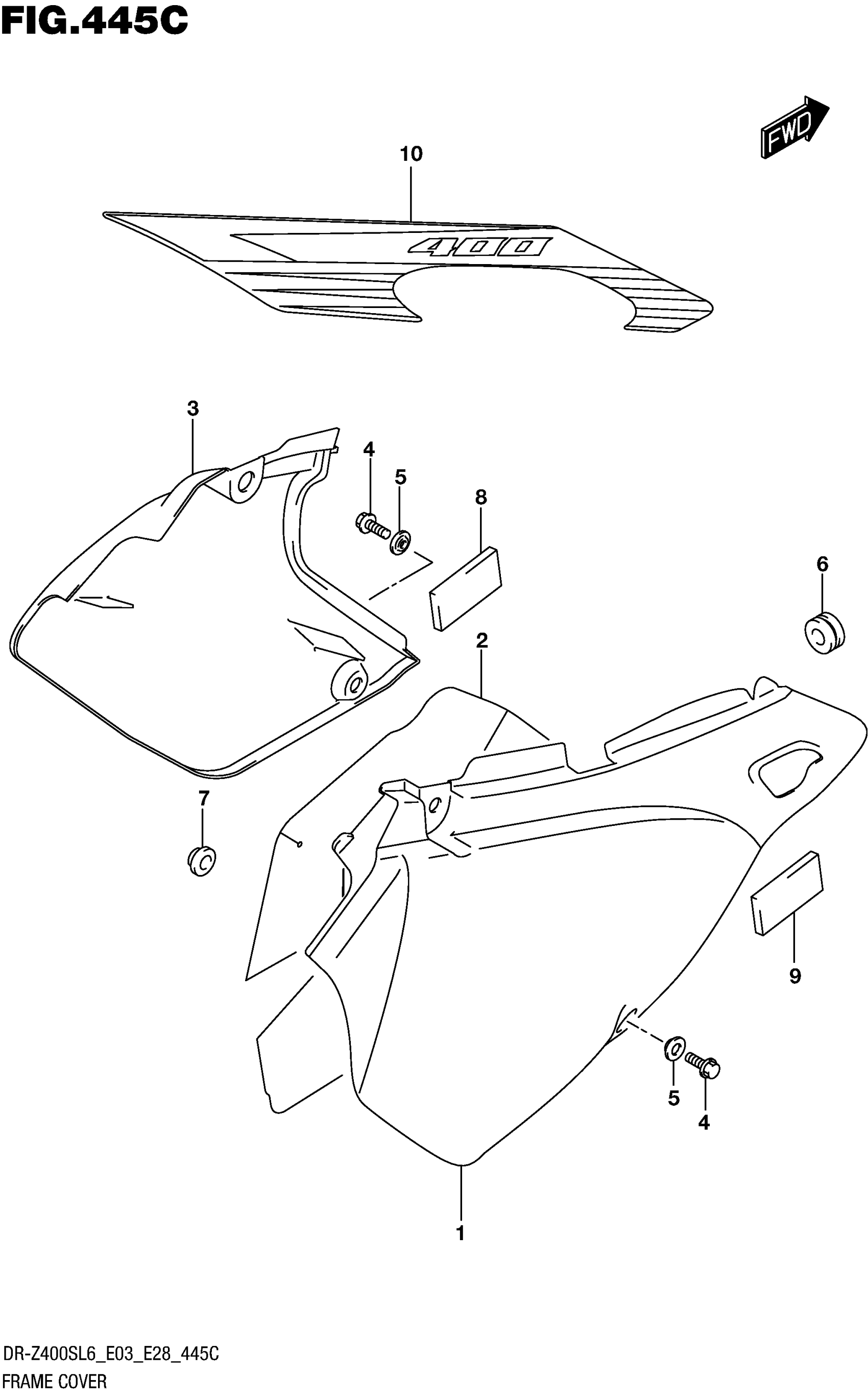

Suzuki DR-Z400SL6 (2016) FRAME COVER (DR-Z400SL6 E33) Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY)

47111-29FC0-YUD

$84.73

2

SHIELD, FRAME COVER RH

47166-29F00

$82.92

3

COVER, FRAME LH (GRAY)

47211-29FC0-YUD

$62.58

4

BOLT (6X12)

09103-06273

$2.26

5

WASHER This part replaces 09169-06031.

09169-06041

$2.20

6

CUSHION

09320-06504

$4.96

7

CUSHION

09321-10018

$5.45

8

CUSHION, FRAME COVER LH

47161-29F00

$6.11

9

CUSHION, FRAME COVER RH FRONT

71762-65G10

$8.28

10

TAPE, FRAME COVER RH

68135-29FK0-A84

$29.43
