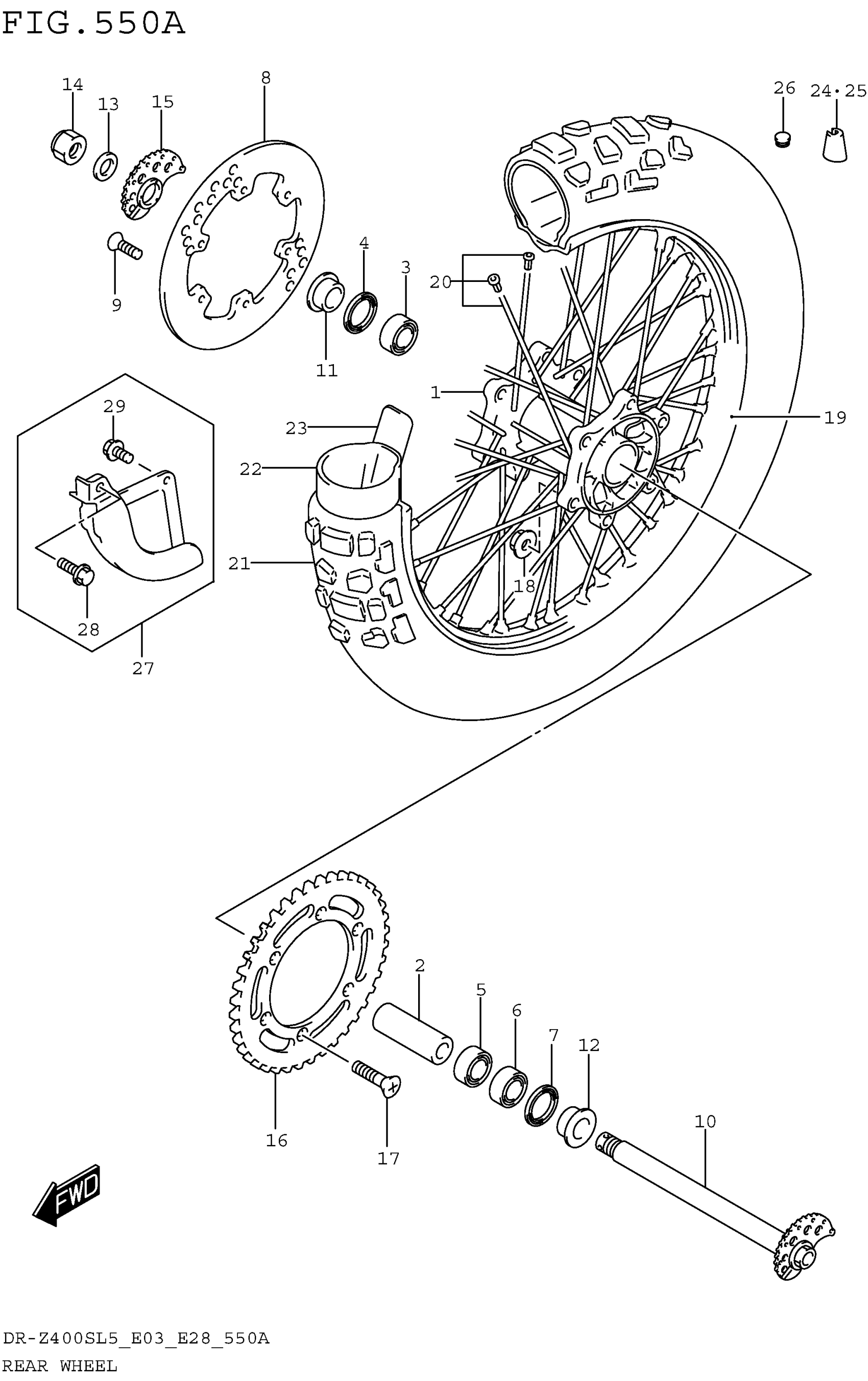

Suzuki DR-Z400SL5 (2015) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-29F10

$525.57

2

SPACER, REAR HUB BEARING

64731-29F00

$35.88

3

BEARING

08133-60047

$23.64

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.22

5

BEARING

08133-60047

$23.64

6

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

7

OIL SEAL (29X47X6)

09283-29006

$10.40

8

DISC, REAR BRAKE

69211-43D00

$333.07

9

SCREW (6X18)

09120-06014

$2.43

10

AXLE, REAR

64710-29F00

$164.12

11

SPACER, RH

64751-28E20

$24.99

12

SPACER, LH

64751-28E20

$24.99

13

WASHER (19X32X3.2)

09160-19022

$4.42

14

NUT

08319-2118A

$4.42

15

ADJUSTER, CHAIN RH

61410-29F00

$29.98

16

SPROCKET, REAR (NT:44)

64511-14D80

$75.17

17

BOLT (8X30.5)

09120-08010

$2.39

18

NUT

08319-3108A

$2.31

19

RIM, REAR WHEEL (2.15X18)

65311-29F00

Unavailable

20

SPOKE SET, REAR WHEEL

65320-29F00

$123.42

21

TIRE RR This part replaces 65110-29F10.

65110-29F11

$319.15

22

TUBE ASSY, WHEEL INNER

65200-29E01

$85.57

23

PROTECTOR, INNER TUBE

65261-14E01

$9.25

24

BALANCER, WHEEL NO.1

55412-41F00

$8.12

25

BALANCER WHEEL (30G)

55413-41F00

$9.95

26

CAP (OD:12)

09250-08013

$2.92

27

COVER, REAR DISC

69200-28C00

$26.04

28

BOLT

01550-0620B

$2.38

29

BOLT

01550-0612B

$2.38
