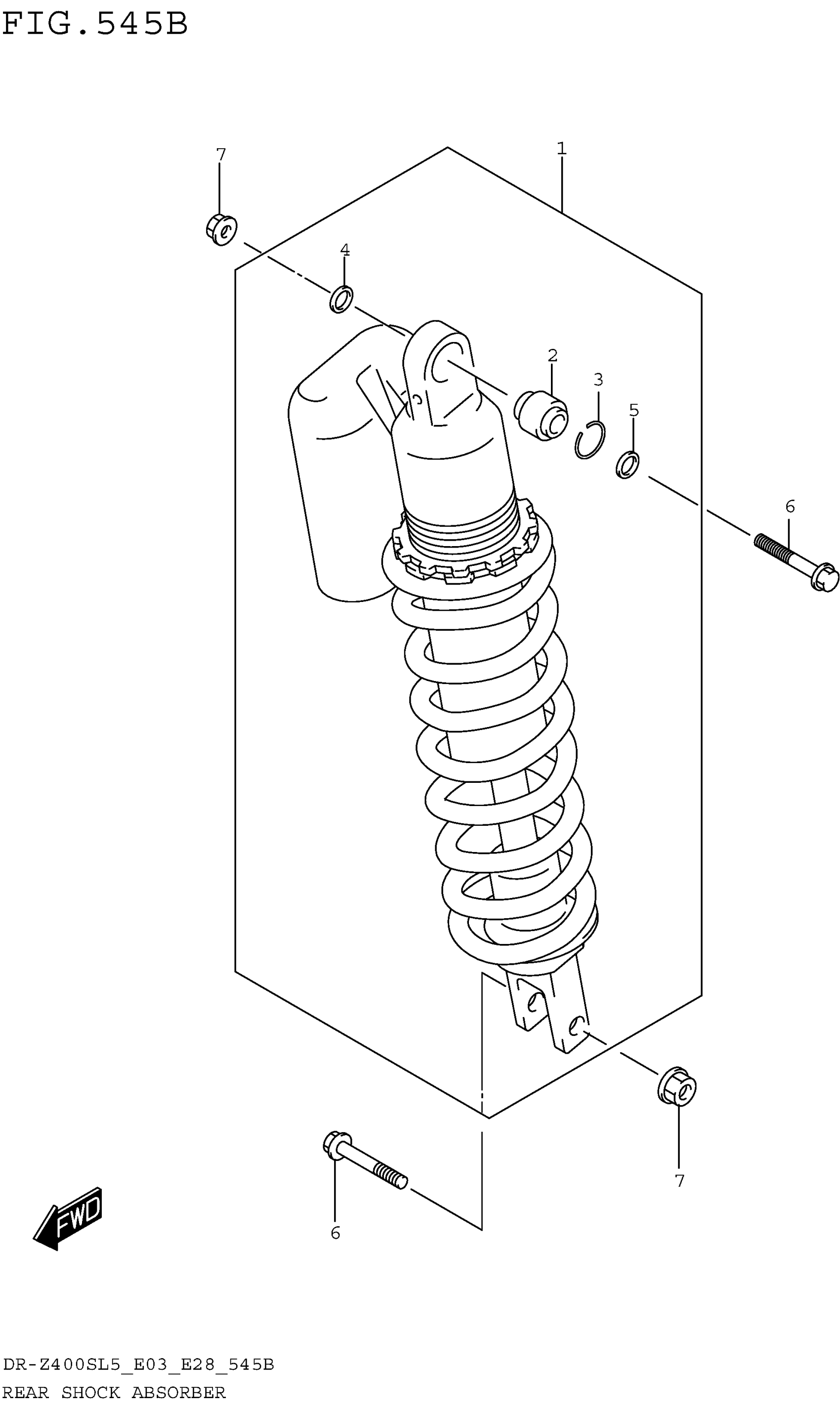

Suzuki DR-Z400SL5 (2015) REAR SHOCK ABSORBER (DR-Z400SL5 E28) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (WHITE)

62100-29FL0-28W

$2,392.30

2

BEARING (10X26X22)

62175-36E00

$116.03

3

RING

62277-27C40

$4.47

4

SEAL, DUST RH

62226-36E00

$11.42

5

SEAL, DUST LH

62226-36E10

$11.63

6

BOLT (10X47.5)

09103-10149

$3.33

7

NUT

09159-10115

$3.21
