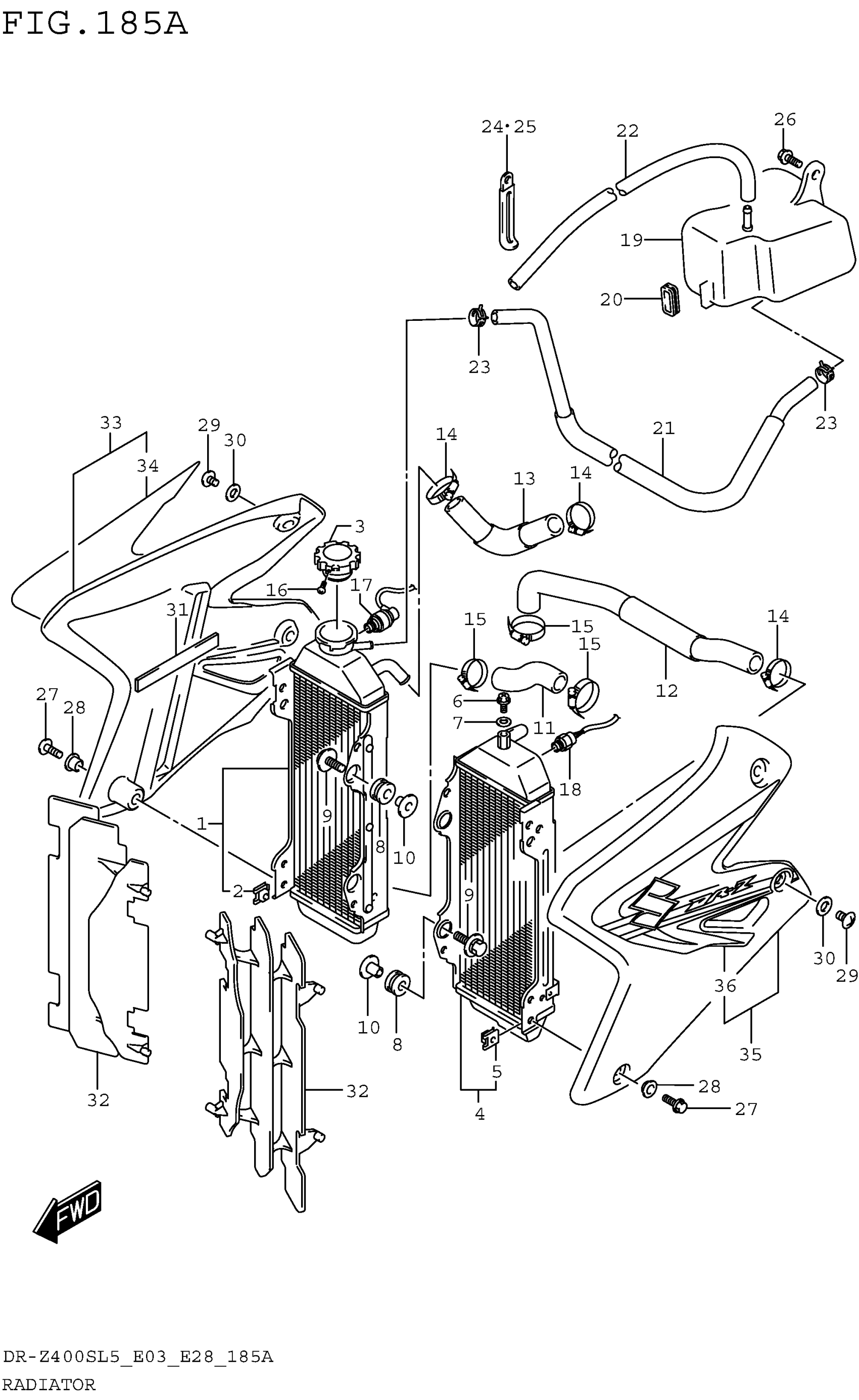

Suzuki DR-Z400SL5 (2015) RADIATOR Diagram

RADIATOR, WATER RH

17710-29F40

$589.20

NUT

09148-06015

$3.04

CAP, RADIATOR (1.1)

17730-19D11

$42.32

RADIATOR, WATER LH

17720-29F40

$612.47

NUT

09148-06015

$3.04

BOLT, AIR RELEASE

17568-50F00

$4.76

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

CUSHION, RADIATOR SUPPORT

17787-19A00

$3.56

BOLT (6X25)

09116-06147

$3.20

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

HOSE, RADIATOR INLET

17851-29F10

$16.25

HOSE, RADIATOR OUTLET

17852-29F30

$50.30

HOSE, RADIATOR JOINT

17853-29F10

$26.68

CLAMP

09402-28513

$6.88

CLAMP

09402-32512

$12.85

SCREW,RADIATOR CAP

17733-03D10

$2.60

SWITCH ASSY, WATER TEMP

34850-29F00

$124.28

SWITCH, FAN

17680-24A30

$123.98

TANK, RESERVOIR

17911-29F11

$49.89

CUSHION, RESERVOIR TANK

17913-29F00

$4.43

HOSE, RESERVOIR TANK INLET

17981-29F01

$21.03

HOSE (5X9X2000) | L:2000->650

09352-50901-00B

$26.94

CLIP

09401-08411

$1.78

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.35

CLAMP (L:45)

09404-06429

$1.83

BOLT

01550-0612A

$1.97

BOLT (6X16)

09103-06274

$2.03

WASHER (6.3X16X1)

09169-06053

$1.49

BOLT (6X8)

09103-06275

$2.07

WASHER (6.5X14X1.6)

09160-06125

$1.91

CUSHION, RADIATOR COVER

47451-38A01

$4.43

LOUVER, RADIATOR

17831-37E11

$19.07

COVER, RADIATOR RH (GRAY)

17760-29FU0-YUD

Unavailable

TAPE,RADIATOR R This part replaces 68665-29FU0.

68665-29FU0-AZ9

$76.00

COVER, RADIATOR LH (GRAY)

17770-29FU0-YUD

Unavailable

TAPE,RADIATOR This part replaces 68675-29FU0.

68675-29FU0-AZ9

$76.00
