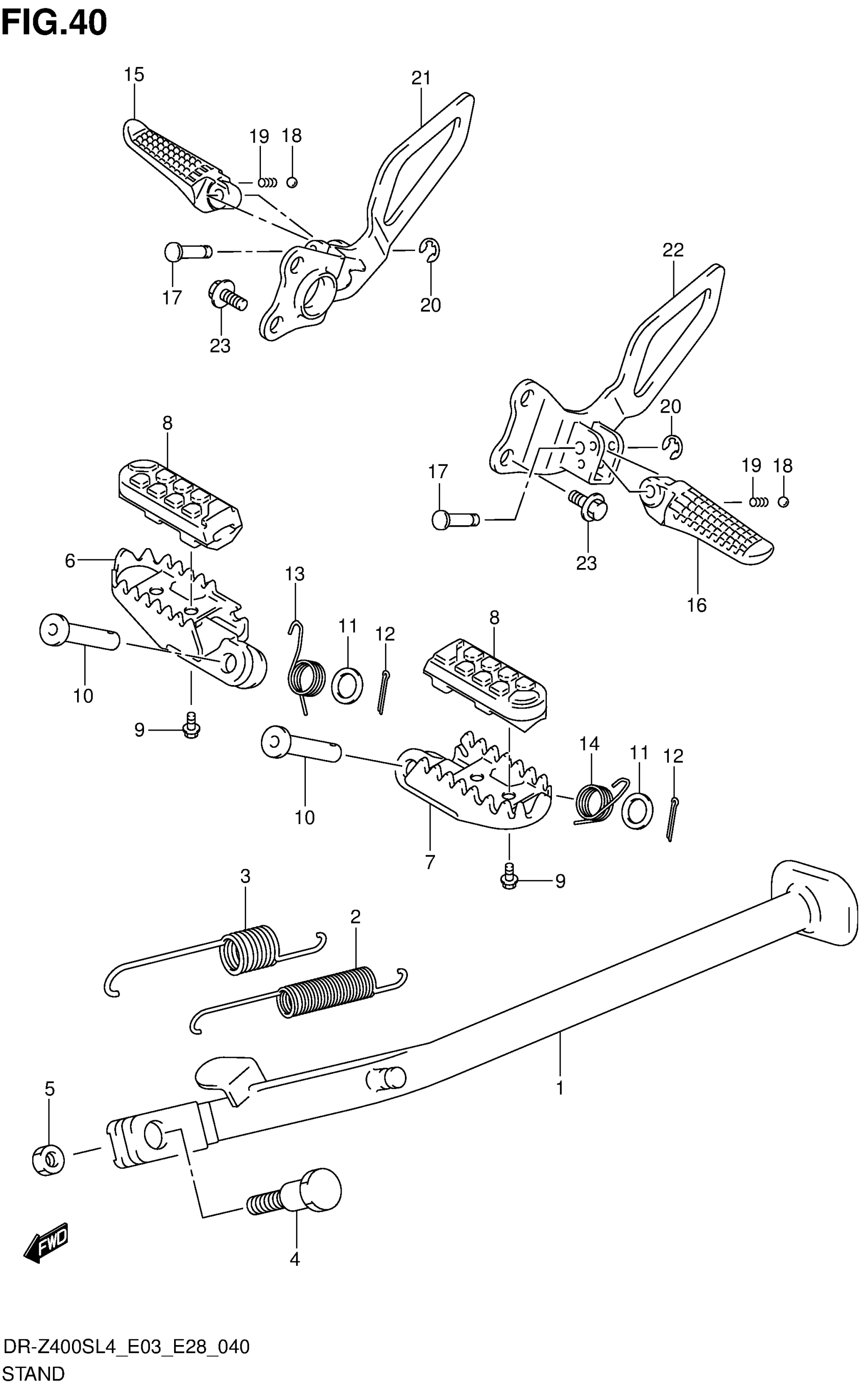

Suzuki DR-Z400SL4 (2014) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-29F00

$142.43

2

SPRING

09443-12036

$7.84

3

SPRING

09443-19010

$6.51

4

BOLT (10X33)

09111-10060

$4.11

5

NUT, PROP STAND

42321-03FK0

$5.17

6

FOOTREST, RH

43550-29E01

$111.52

7

FOOTREST, LH

43560-29E01

$109.42

8

RUBBER, FOOTREST

43530-29F00

$25.27

9

BOLT

01547-0510A

$2.53

10

PIN (10X41.5)

09200-10019

$6.83

11

WASHER

08322-0110B

$2.34

12

COTTER PIN

04111-2520A

$1.49

13

SPRING

09448-18030

$5.36

14

SPRING

09448-18029

$5.36

15

BAR, PILLION FOOTREST RH

43611-33E11

$55.65

16

BAR, PILLION FOOTREST LH

43621-33E11

$55.65

17

PIN, PILLION FOOTREST

87259-85510

$5.19

18

BALL

06111-07004

$1.49

19

SPRING

09440-05005

$1.58

20

E-RING

08332-1104B

$1.78

21

BRACKET, PILLION RH

43650-29F20

$73.88

22

BRACKET, PILLION LH

43750-29F00

$77.57

23

BOLT

01550-0816B

$2.73
