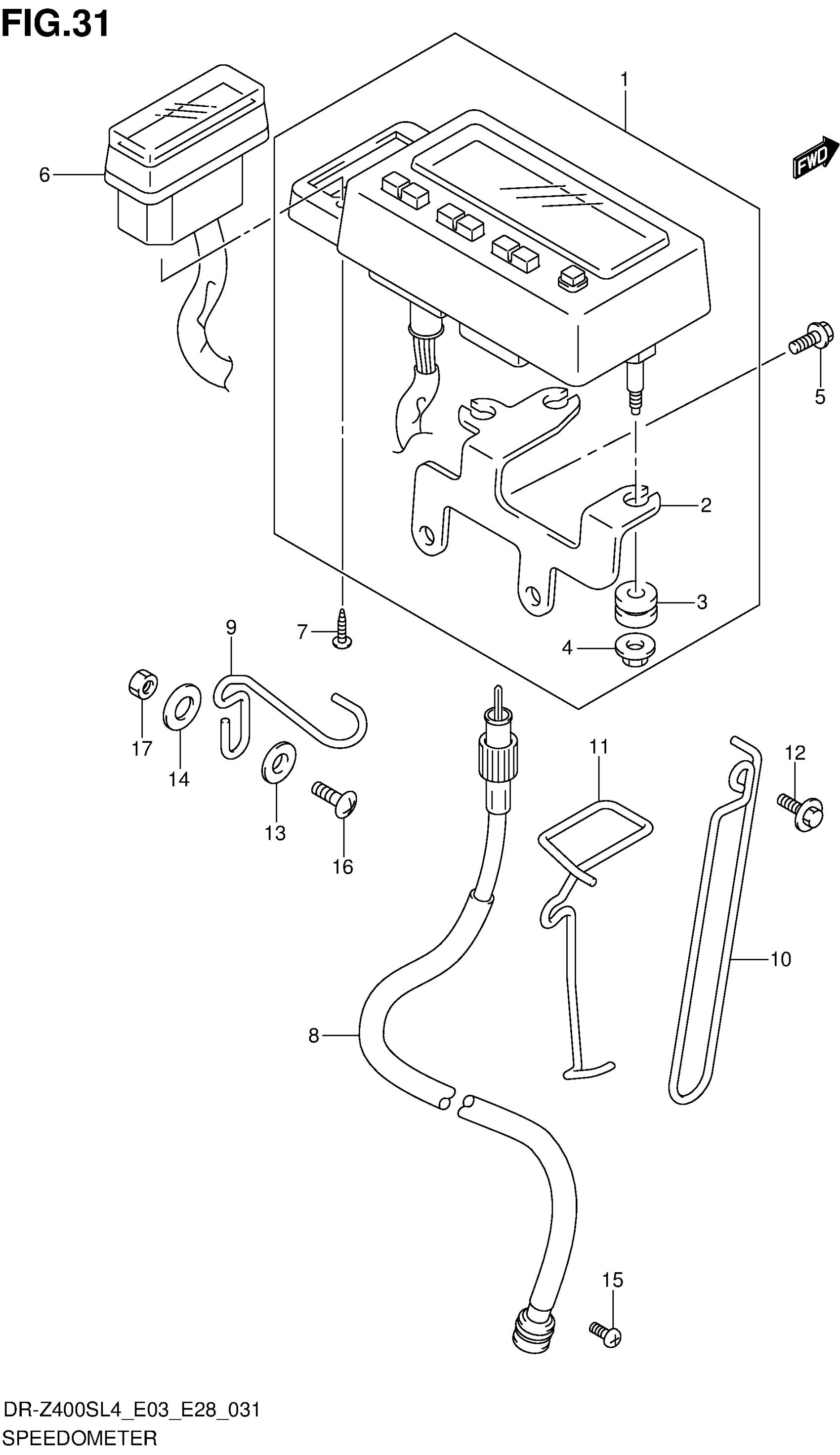

Suzuki DR-Z400SL4 (2014) SPEEDOMETER (DR-Z400SL4 E33) Diagram

Description

Price

SPEEDOMETER ASSY This part replaces 34100-29F40.

34100-29F41

$1,184.03

BRACKET

34950-29F00

$54.60

.CUSHION

34996-43410

$4.92

NUT

08316-1005A

$2.19

BOLT

01550-0616A

$1.97

BOX ASSY, PILOT LAMP

36380-29F00

$319.60

SCREW

03511-0420B

$2.44

CABLE ASSY SPEEDOMETER

34910-32E00

$37.68

GUIDE, METER CABLE NO.1

34938-03D22

$12.85

GUIDE METER CABLE NO.2

34938-14D30

$9.74

GUIDE, SPEEDMETER CABLE NO.3

34938-29F10

$16.35

BOLT (6X20)

09116-06201

$2.97

WASHER (6.5X18X1.6)

09160-06109

$1.15

WASHER (6.3X16X1)

09169-06053

$1.10

SCREW

02112-0516B

$1.95

SCREW

02142-0616B

$1.80

NUT

08310-0006B

$2.37
