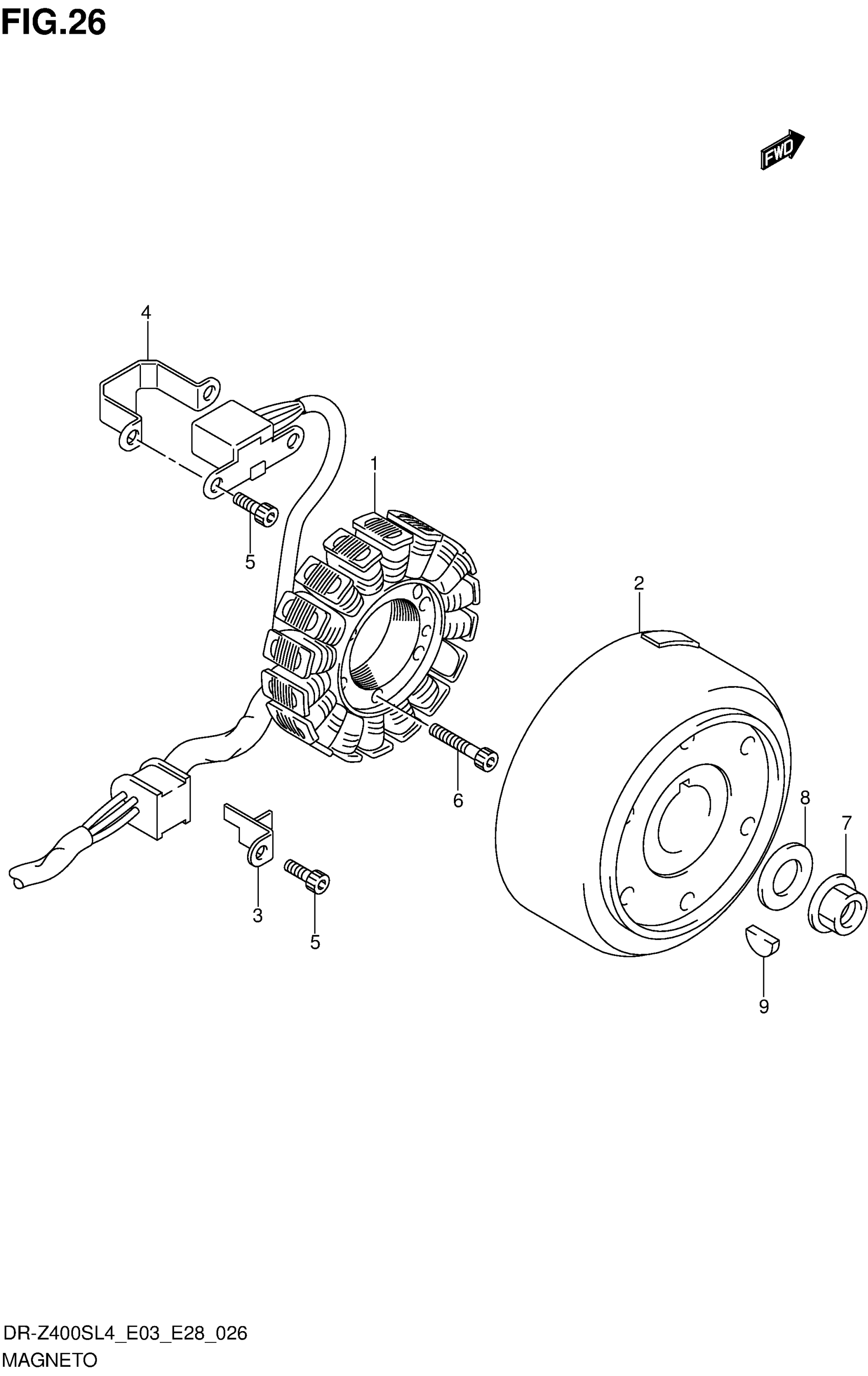

Find the part on the Magneto diagram for your 2014 Suzuki DR-Z400SL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki DR-Z400SL4 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY, MAGNETO

32101-29F00

1
Out of stock

2

ROTOR ASSY, MAGNETO

32102-29F00

1
Out of stock

3

CLAMP, MAGNETO LEAD NO.1

32371-13E00

1
Out of stock

4

CLAMP, MAGNETO PULSER LEAD

32371-14D01

1
Out of stock

5

BOLT

07130-0512A

3
Out of stock

6

BOLT

07130-0525A

3
Out of stock

7

NUT

09159-12068

1
Out of stock

8

WASHER (12X27X2.0)

09160-12051

1
Out of stock

9

KEY

09420-04008

1
Out of stock
