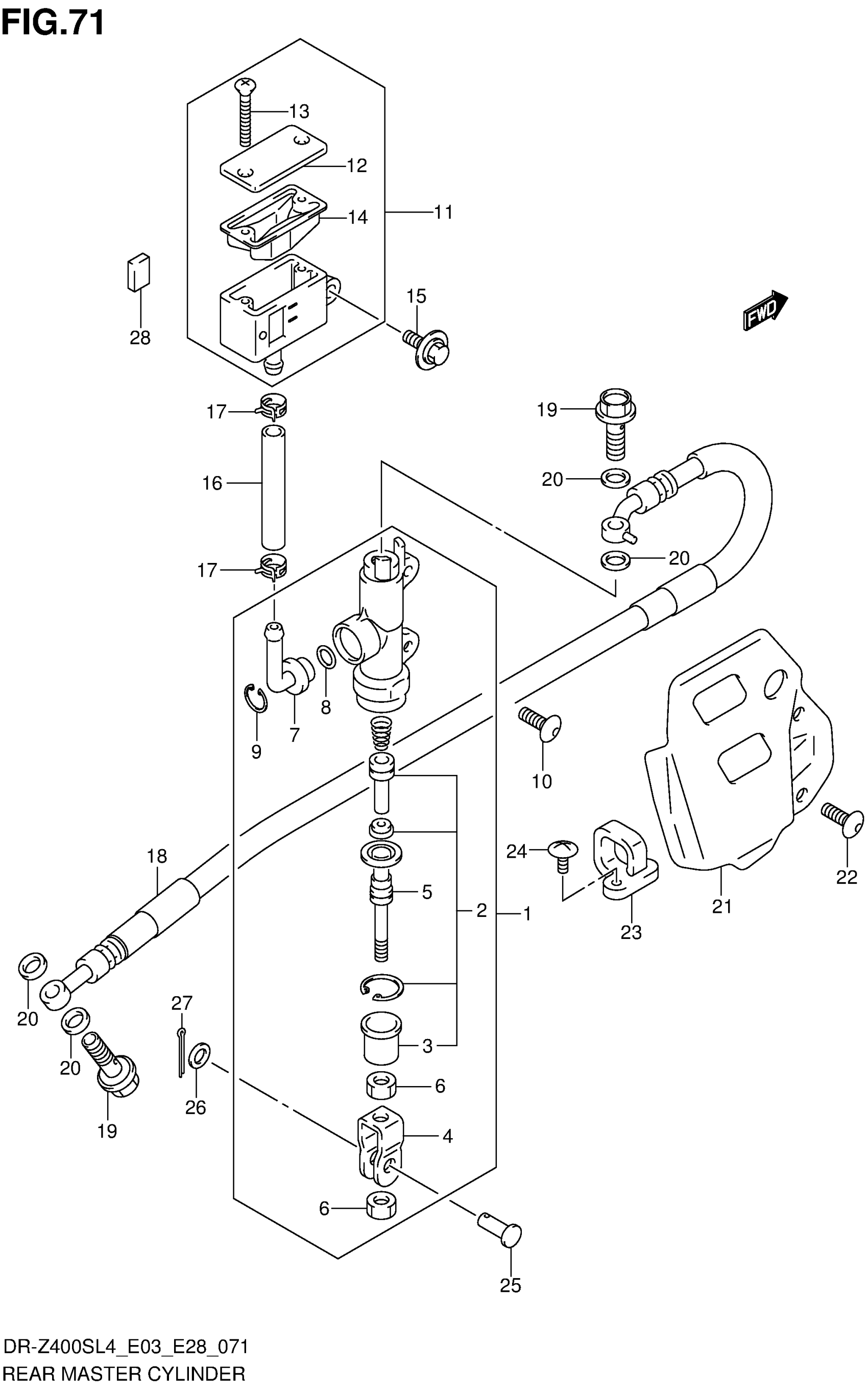

Suzuki DR-Z400SL4 (2014) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-29F00

$335.50

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-29F00

$24.57

5

ROD, PUSH

69670-36E00

$33.47

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

11

TANK ASSY, RESERVOIR This part replaces 69740-44E00.

69740-44E01

$66.38

12

CAP

69669-44E00

$26.03

13

SCREW

69689-36E00

$3.65

14

DIAPHRAGM

59667-14500

$9.53

15

BOLT (6X16)

09116-06170

$2.50

16

HOSE, RESERVOIR TANK (L:85) | L:85->70

59731-42E00

$18.80

17

CLAMP, RESERVOIR HOSE

69735-00B20

$5.43

18

HOSE, REAR BRAKE

69480-29F02

$167.90

19

UNION

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

GUARD, REAR MASTER CYLINDER

43571-36E20

$66.48

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

23

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.65

24

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

25

PIN

09200-08048

$2.80

26

WASHER (8.5X14X1.6)

09160-08090

$2.38

27

COTTER PIN

04111-2015A

$1.22

28

CUSHION, REAR RESERVOIR TANK

69749-29F00

$5.83
