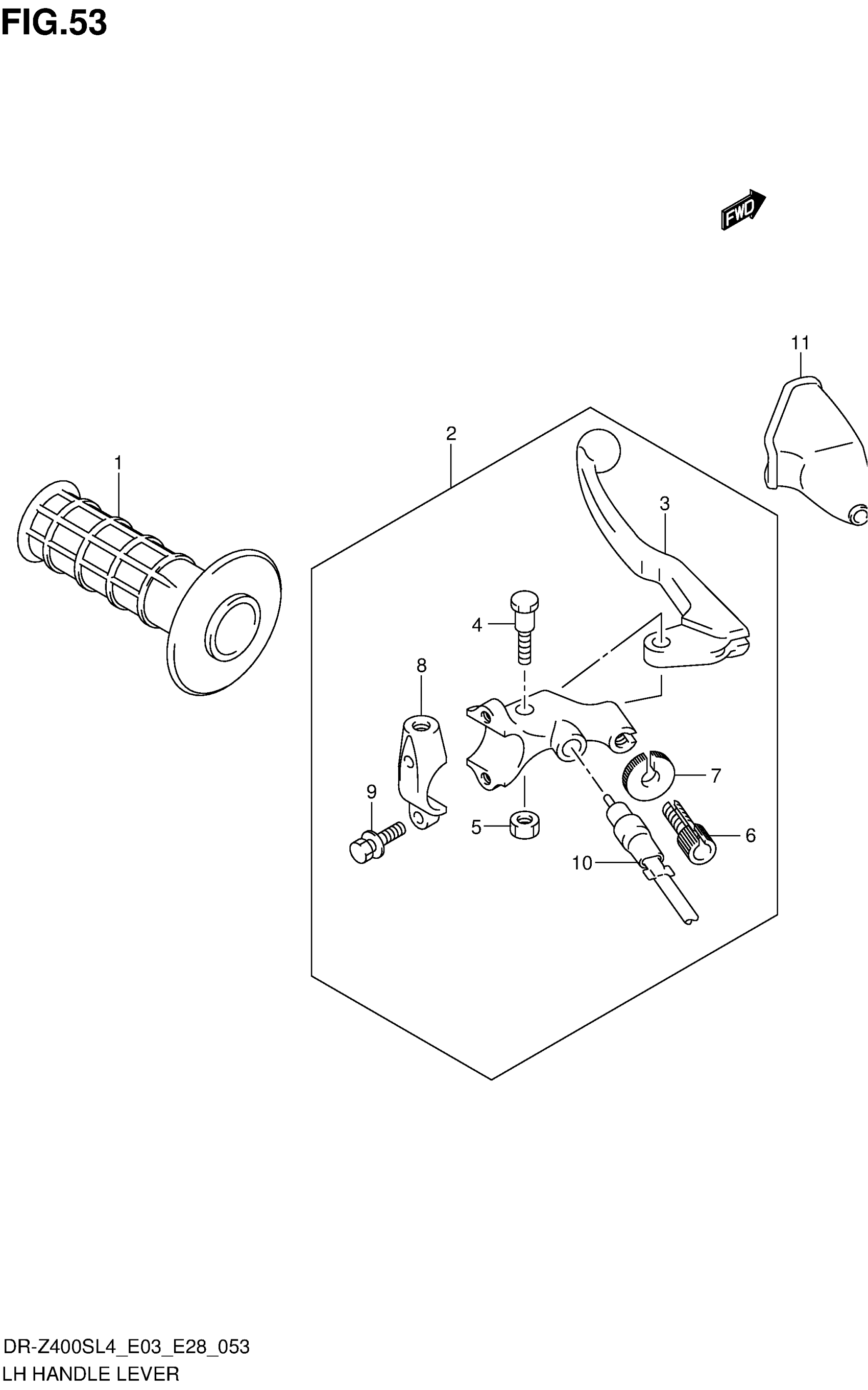

Suzuki DR-Z400SL4 (2014) LH HANDLE LEVER Diagram

#

Description

Price

1

GRIP L

57211-12D00

$16.70

2

LEVER ASSY CLUTCH This part replaces 57500-29F31.

57500-29F32

$70.50

3

.LEVER, CLUTCH

57621-13E00

$13.15

4

..BOLT,LEVER PIVOT

57431-21D11

$9.76

5

NUT

08319-2106A

$1.91

6

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

$11.32

7

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

8

BRACKET, HOLDER

57512-13E00

$25.75

9

BOLT, BRACKET

57513-13E00

$6.23

10

SWITCH ASSY, CLUTCH

57560-29F31

$33.87

11

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

$8.52
