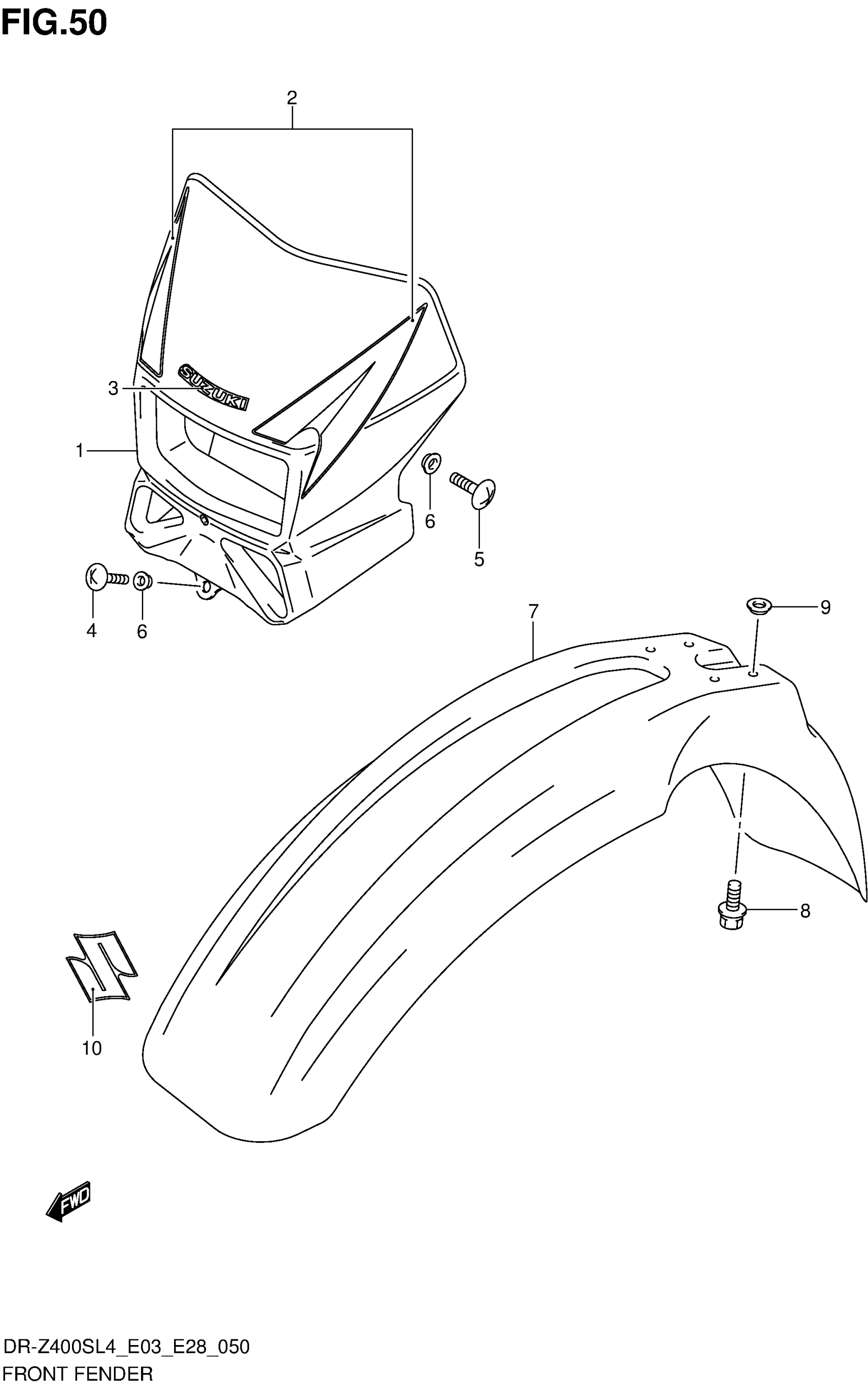

Suzuki DR-Z400SL4 (2014) FRONT FENDER Diagram

#

Description
Price

1

COVER, HEADLAMP (BLACK)

51811-29F50-019

$96.47

1

COVER HEADLAMP (WHITE)

51811-29F50-30H

$116.87

2

TAPE SET, HEADLAMP HOUSING (SILVER/BLACK) | FOR 019

68720-29FD0-HMC

$54.80

2

TAPE SET, HEADLAMP HOUSING (BLUE/WHITE) | FOR 30H

68720-29FD0-HMD

Unavailable

3

EMBLEM,"SUZUKI" This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$11.35

4

SCREW

02142-0512B

$2.05

5

SCREW

02142-0612B

$2.05

6

WASHER

09169-06071

$2.50

7

FENDER FRONT (BLACK)

53111-27C22-019

$160.55

7

FENDER, FRONT (WHITE)

53111-27C22-30H

$161.33

8

BOLT (6X16)

09116-06170

$2.50

9

WASHER

09169-06073

$3.42

10

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$11.60
