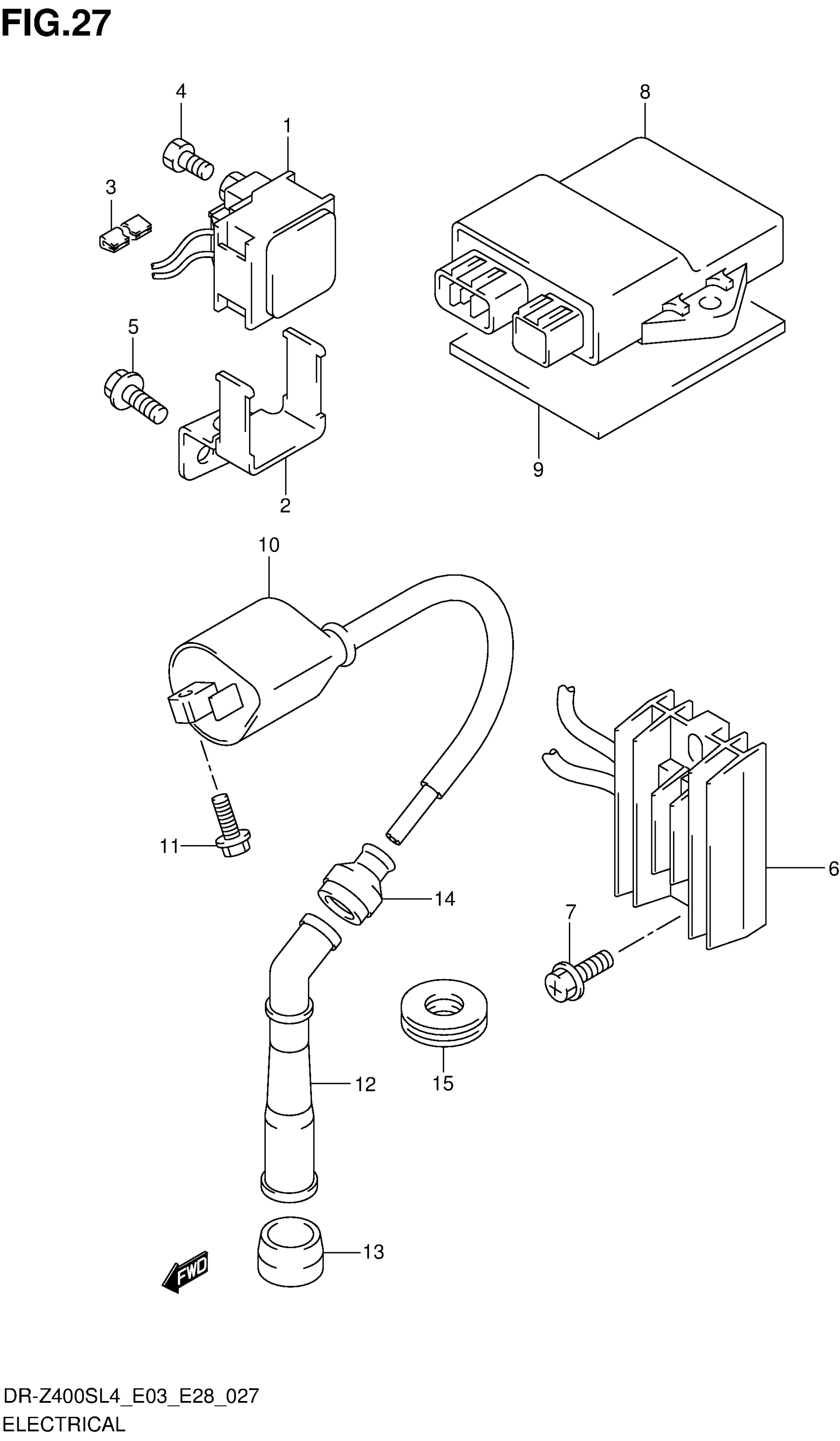

Suzuki DR-Z400SL4 (2014) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY STARTING MOTOR This part replaces 31800-29F00.

31800-29F01

$63.15

2

BRACKET, STARTING MOTOR RELAY

31811-29F00

$7.12

3

PROTECTOR, STARTING MOTOR LEAD

31812-29F00

$5.67

4

SCREW (6X8)

09128-06013

$1.49

5

BOLT

01550-0612B

$2.39

6

RECTIFIER ASSY

32800-29F00

$267.85

7

SCREW

02162-0620B

$2.28

8

CDI UNIT

32900-29F40

$787.82

9

CUSHION, CDI UNIT

33652-36000

$2.30

10

COIL ASSY, IGNITION

33410-09F00

$95.54

11

BOLT

01547-0616B

$2.45

12

CAP ASSY, SPARK PLUG

33510-48B10

$31.77

13

SEAL, SPARK PLUG CAP

33541-23E10

$6.54

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

15

COVER,SPARK PLUG CAP

33543-33E01

$4.54
