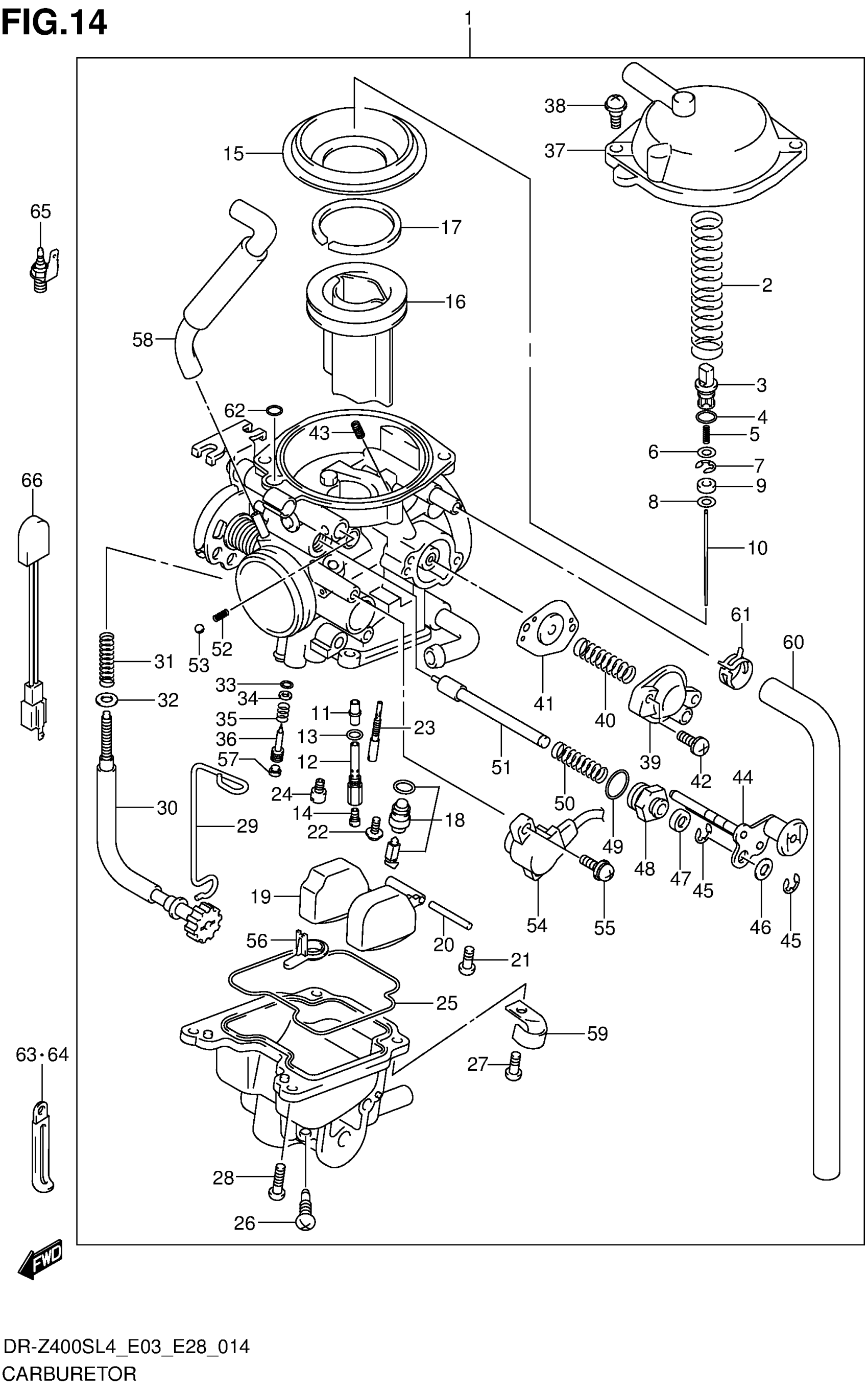

Suzuki DR-Z400SL4 (2014) CARBURETOR (DR-Z400SL4 E33) Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-29FC3

$822.38

2

SPRING

13573-07F00

$13.67

3

HOLDER

13418-33E00

$5.68

4

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

5

SPRING

13481-04F00

$3.56

6

WASHER

13382-19E00

$3.56

7

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

8

RING

13387-13F00

$8.17

9

WASHER

13291-29FA0

$2.94

10

NEEDLE, JET (5DH37-1)

13383-29FB0

$19.72

11

JET

09494-00939

$51.93

12

HOLDER, JET

13385-29FA0

$34.15

13

.O RING This part replaces 13246-43010.

13246-43011

$4.34

14

JET, MAIN (142.5)

09491-28012

$11.33

15

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

16

VALVE, PISTON

13501-29FA0

$72.47

17

RING

13504-14E00

$5.11

18

.VALVE ASSY NEEDLE This part replaces 13370-29FA0.

13370-29FA1

$55.10

19

FLOAT ASSY

13250-04F00

$34.73

20

.PIN, FLOAT

13254-01010

$3.62

21

SCREW

02112-0408A

$1.49

22

SCREW

13602-05A10

$3.56

23

JET, PILOT (22.5)

09492-22014

$14.20

24

JET, MAIN (62.5)

09491-62006

$11.38

25

GASKET

13258-04F00

$9.89

26

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

27

SCREW

02112-04107

$1.55

28

SCREW

02112-0412A

$1.49

29

CLIP

13671-29FA0

$18.60

30

ADJUST SCREW ASSY

13267-29FA0

$62.32

31

SPRING, THROTTLE SCREW

13268-37420

$5.32

32

WASHER

13615-43010

$3.25

33

O-RING This part replaces 13295-29900.

13295-29901

$4.34

34

WASHER

13291-29900

$1.98

35

SPRING,THROTTLE SCREW

13268-48700

$4.34

36

ADJUSTER

13279-33E00

$12.48

37

DIAPHRAGM COVER

13502-29FA0

$50.37

38

SCREW

13247-33E00

$2.92

39

COVER ASSY

13502-08F00

$51.32

40

SPRING

13481-41F20

$3.77

41

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$16.79

42

SCREW

13601-04148

$2.81

43

JET, POWER (135)

09492-27010

$18.02

44

PLATE ASSY

13420-29FA0

$72.82

45

E RING

13415-38300

$2.08

46

WASHER

13427-38300

$1.92

47

.CAP, STARTER VALVE

13682-31210

$4.37

48

.HOLDER, GUIDE

13418-44080

$10.00

49

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

50

SPRING, STARTER VALVE

13417-43010

$4.34

51

PLUNGER ASSY

13411-29FA0

$31.22

52

SPRING

13434-43010

$6.47

53

STEEL BALL

13596-93010

$4.43

54

.SENSOR ASSY This part replaces 13580-21F00.

13580-21F01

$86.73

55

SCREW

13602-19B50

$3.43

56

RING

13387-29FA1

$13.90

57

PLUG

13281-05A00

$4.60

58

HOSE

13683-29FB0

$23.88

59

.PLATE This part replaces 13671-14D00.

13671-14D01

$4.17

60

.HOSE AIR VENT (6.5X10.5) This part replaces 13684-29FB0.

13684-29FB1

$30.83

61

CLIP

13671-19F00

$5.13

62

O RING

13295-33010

$4.48

63

CLAMP (L:45)

09404-06429

$1.83

64

CLAMP (L:120 T:1.0)

09404-08420

$3.16

65

HEATER ASSY, CARBURETOR | OPT

13650-25E01

$44.48

66

SWITCH, CARB HEATER THERMO | OPT

13655-16F00

$66.00
